TOYOTA RAV4 JPP GSA38L-ANAGKA / BODY / SPOILER SIDE MUDGUARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

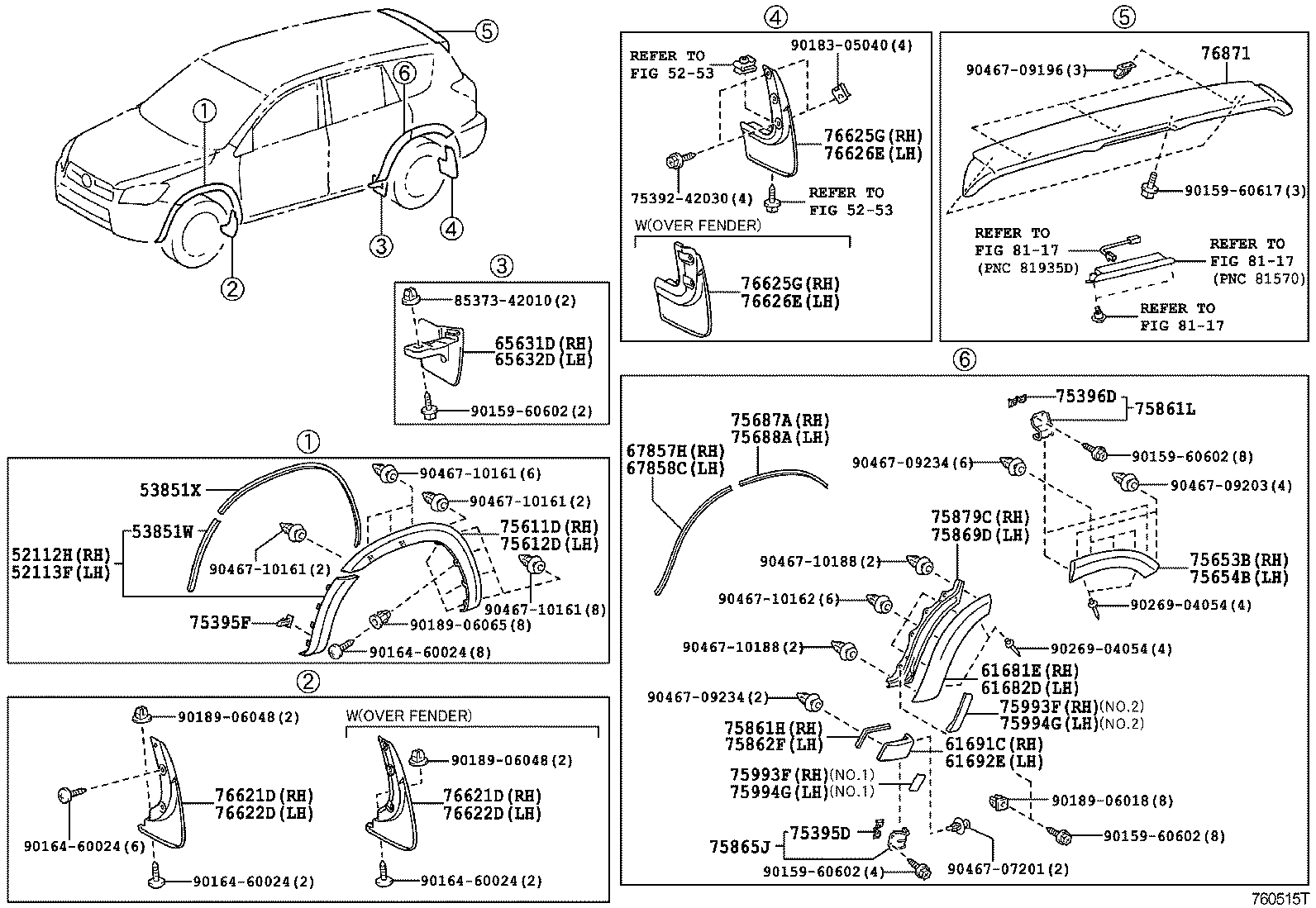

SPOILER SIDE MUDGUARD

(0511- )

RAV4 JPP | SPOILER SIDE MUDGUARD 52112H - EXTENSION, FRONT BUMPER, RH 52113F - EXTENSION, FRONT BUMPER, LH ** Refer Fig ** Refer Fig 53851W - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 53851X - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 61681E - EXTENSION, REAR WHEEL OPENING, NO.1 RH 61682D - EXTENSION, REAR WHEEL OPENING, NO.1 LH 61691C - EXTENSION, REAR WHEEL OPENING, NO.2 RH 61692E - EXTENSION, REAR WHEEL OPENING, NO.2 LH 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH 67857H - PROTECTOR, REAR DOOR PANEL, RH 67858C - PROTECTOR, REAR DOOR PANEL, LH ** Std Part 75395D - CLIP, OUTSIDE MOULDING, NO.1 75395F - CLIP, OUTSIDE MOULDING, NO.1 75396D - CLIP, OUTSIDE MOULDING, NO.2 75611D - MOULDING, FRONT FENDER, OUTSIDE FRONT RH 75612D - MOULDING, FRONT FENDER, OUTSIDE FRONT LH 75653B - MOULDING, QUARTER OUTSIDE, RH NO.3 75654B - MOULDING, QUARTER, OUTSIDE NO.4 75687A - PROTECTOR, QUARTER MOULDING, LOWER REAR RH 75688A - PROTECTOR, QUARTER MOULDING, LOWER REAR LH 75861H - PROTECTOR, ROCKER PANEL MOULDING, NO.1 75861L - RETAINER, ROCKER PANEL MOULDING, NO.1 75862F - PROTECTOR, ROCKER PANEL MOULDING, NO.2 75865J - RETAINER, ROCKER PANEL MOULDING, NO.2 75869D - RETAINER, QUARTER OPENING, LH 75879C - RETAINER, QUARTER OPENING, RH 75993F - STRIPE, QUARTER, FRONT RH 75993F - STRIPE, QUARTER, FRONT RH 75994G - STRIPE, QUARTER, FRONT LH 75994G - STRIPE, QUARTER, FRONT LH 76621D - MUDGUARD, FRONT FENDER, RH 76621D - MUDGUARD, FRONT FENDER, RH 76622D - MUDGUARD, FRONT FENDER, LH 76622D - MUDGUARD, FRONT FENDER, LH 76625G - MUDGUARD, QUARTER PANEL, REAR RH 76625G - MUDGUARD, QUARTER PANEL, REAR RH 76626E - MUDGUARD, QUARTER PANEL, REAR LH 76626E - MUDGUARD, QUARTER PANEL, REAR LH 76871 - SPOILER, REAR ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
