TOYOTA SCION IQ NGJ10L-BGXNGA / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

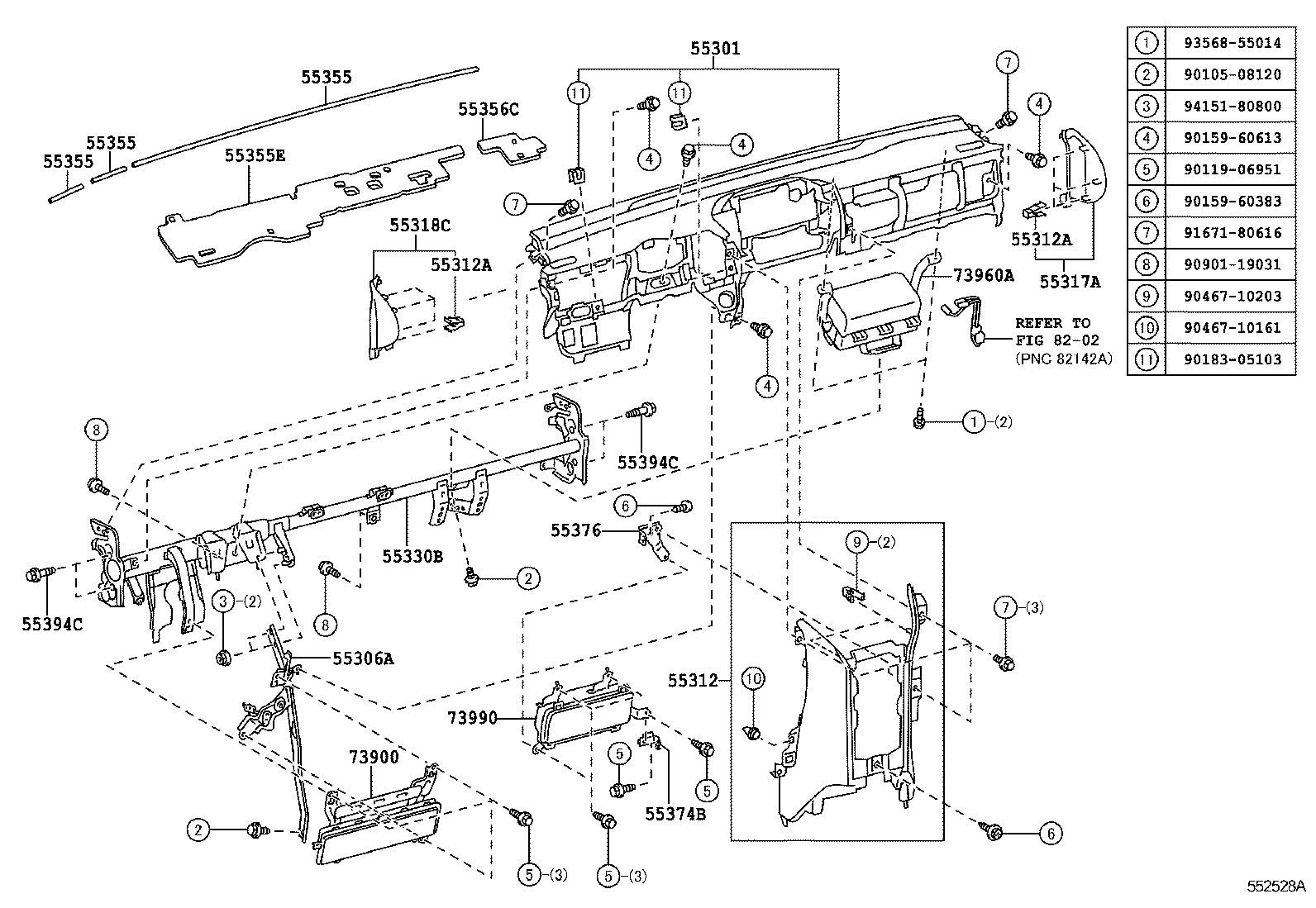

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 1 OF 2(1107- )

SCION IQ | INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55312 - PANEL, INSTRUMENT, LOWER 55312A - CLIP, INSTRUMENT PANEL 55312A - CLIP, INSTRUMENT PANEL 55317A - PANEL, INSTRUMENT SIDE, RH 55318C - PANEL, INSTRUMENT SIDE, LH 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55355E - CUSHION, INSTRUMENT PANEL 55356C - CUSHION, INSTRUMENT PANEL, NO.2 55374B - BRACKET, INSTRUMENT PANEL 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55394C - BOLT, INSTRUMENT PANEL 55394C - BOLT, INSTRUMENT PANEL 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
