TOYOTA SCION IQ NGJ10L-BGXNGA / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(1107- )

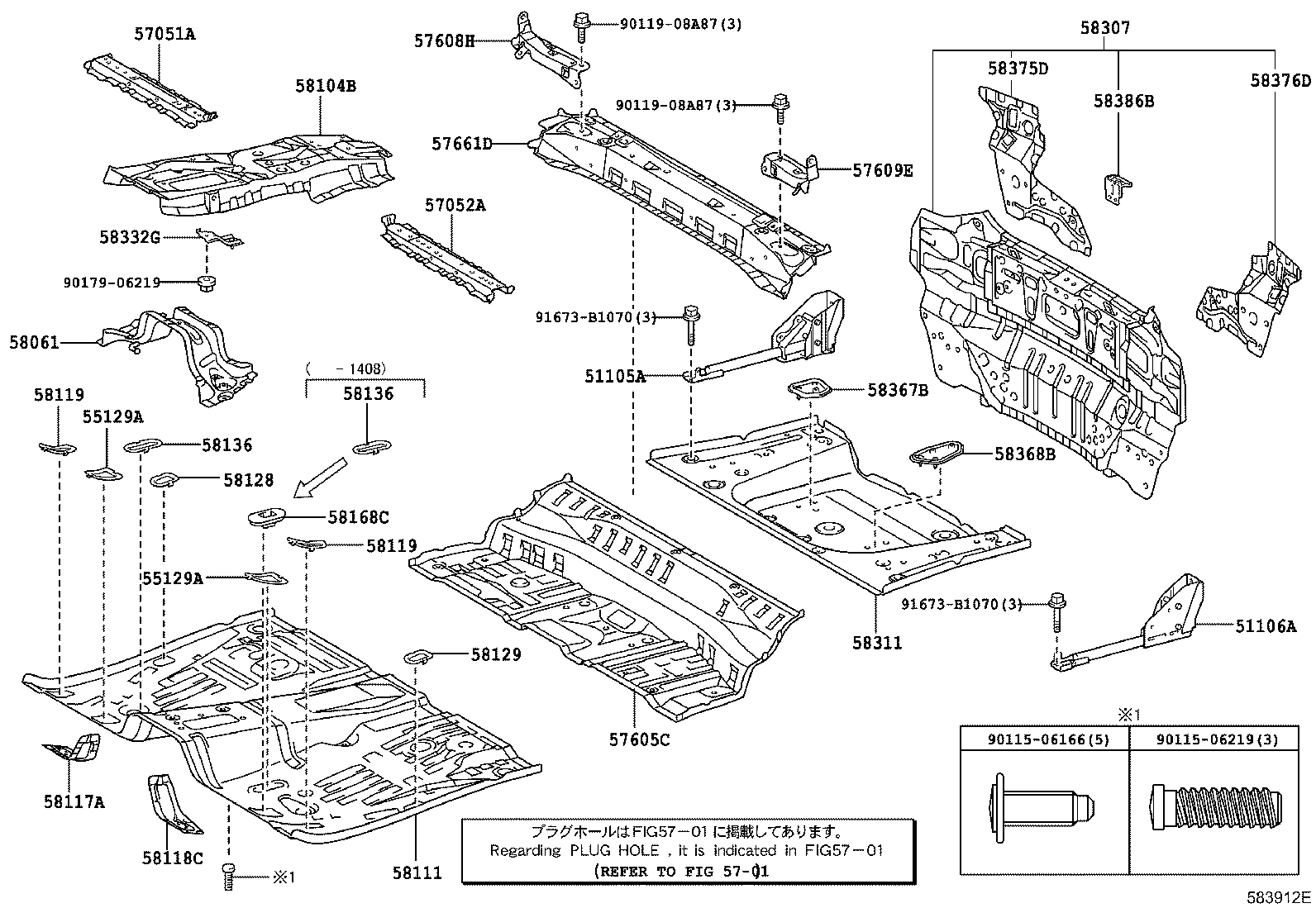

SCION IQ | FLOOR PAN LOWER BACK PANEL 51105A - PIPE SUB-ASSY, REAR FRAME, RH 51106A - PIPE SUB-ASSY, REAR FRAME, LH 55129A - COVER, FRONT FLOOR HOLE 55129A - COVER, FRONT FLOOR HOLE ** Refer Fig 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS 57608H - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH 57609E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH 57661D - MEMBER, REAR FLOOR CROSS, FRONT 58061 - SUPPORT SUB-ASSY, FUEL TANK, FRONT 58104B - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH 58111 - PAN, FRONT FLOOR 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH 58119 - PLATE, FRONT FLOOR SIDE, FRONT 58119 - PLATE, FRONT FLOOR SIDE, FRONT 58128 - PLATE, FRONT FLOOR, NO.1 58129 - PLATE, FRONT FLOOR, NO.2 58136 - COVER, FRONT FLOOR HOLE 58136 - COVER, FRONT FLOOR HOLE 58168C - COVER, FRONT FLOOR, CENTER LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58332G - BRACKET, REAR FLOOR HEAT INSULATOR, NO.4 58367B - BRACKET, FUEL TUBE 58368B - BRACKET, FUEL TUBE, NO.2 58375D - REINFORCEMENT, BODY LOWER BACK PANEL, RH 58376D - REINFORCEMENT, BODY LOWER BACK, LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
