TOYOTA YARIS NCP93L-BEMRKA / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

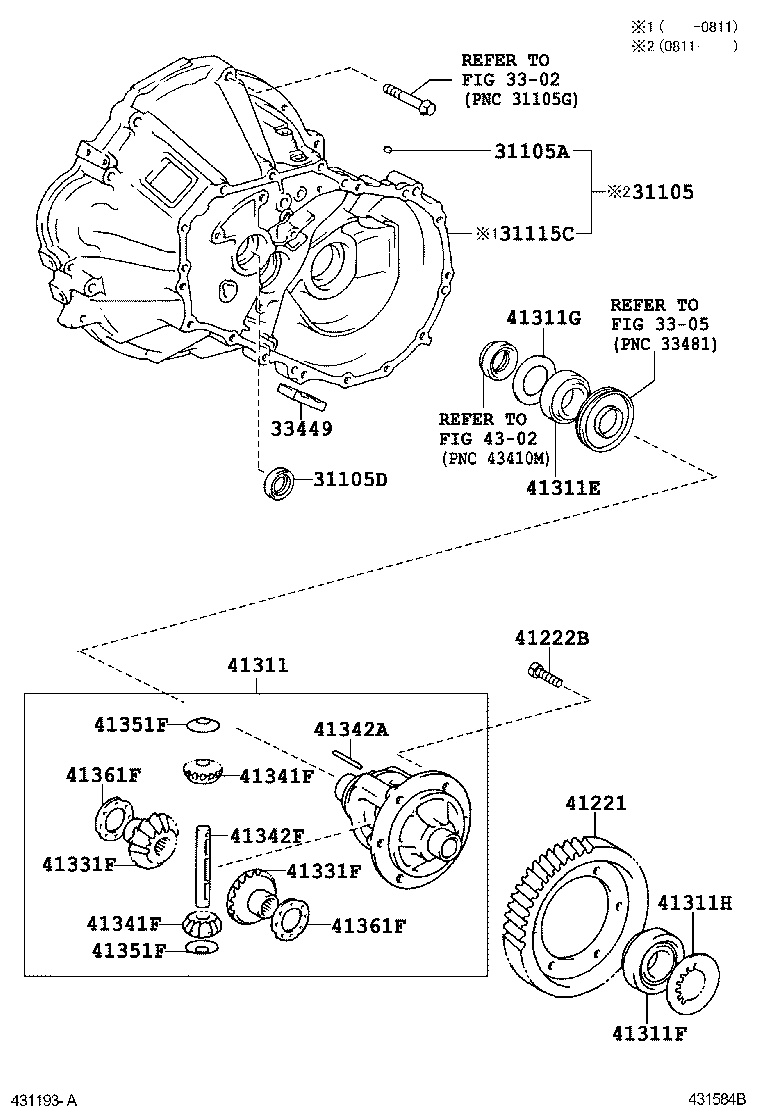

FRONT AXLE HOUSING DIFFERENTIAL

C50 (0602- )MTM

YARIS | FRONT AXLE HOUSING DIFFERENTIAL 31105 - CASE SUB-ASSY, TRANSAXLE(MTM) 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) 31115C - CASE, FRONT TRANSAXLE(MTM) ** Refer Fig ** Refer Fig 33449 - MAGNET, TRANSMISSION 41221 - GEAR, FRONT DIFFERENTIAL RING 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41311 - CASE, FRONT DIFFERENTIAL 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41341F - PINION, FRONT DIFFERENTIAL 41341F - PINION, FRONT DIFFERENTIAL 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 ** Refer Fig
