TOYOTA YARIS NCP93L-BEMRKK / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

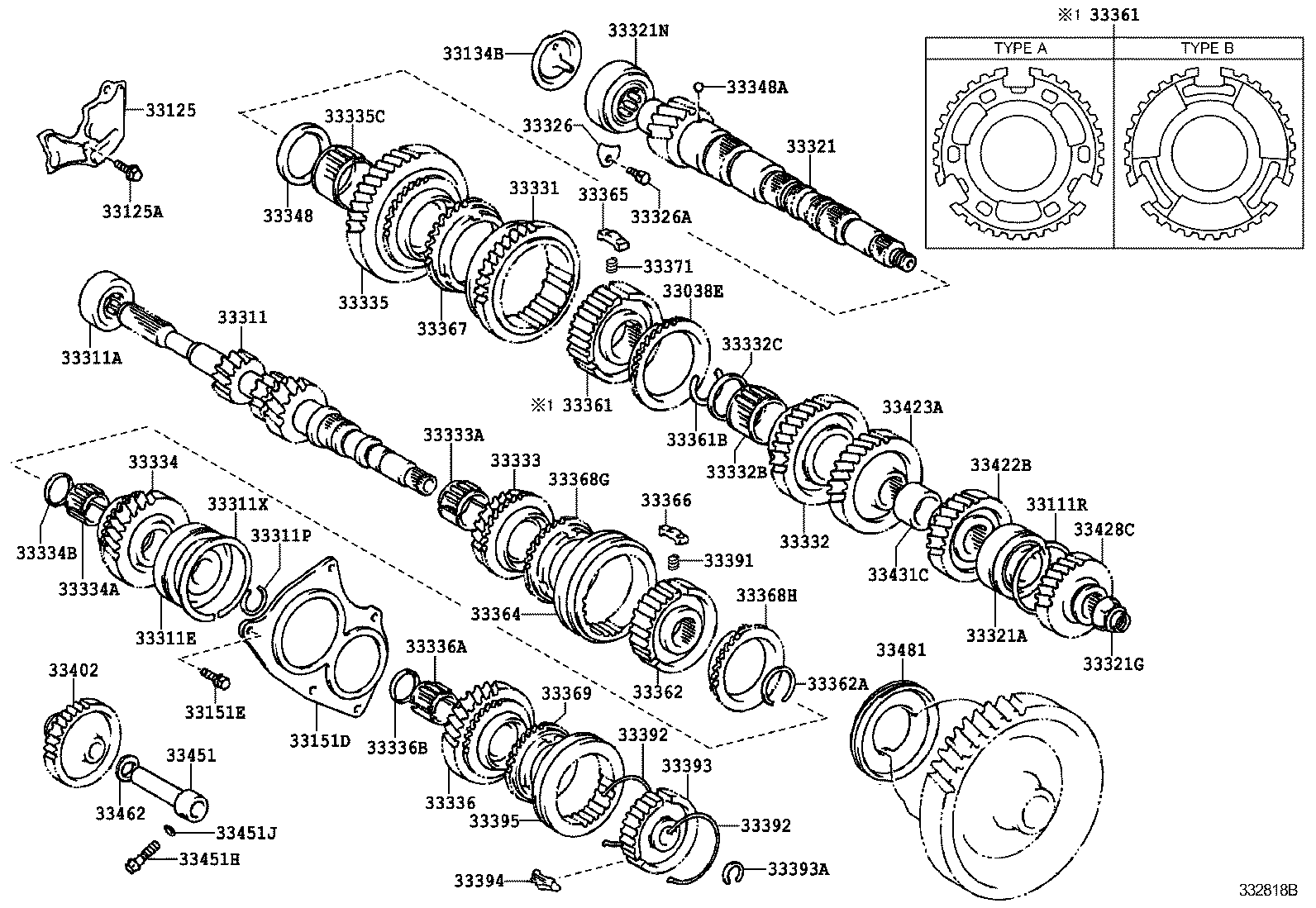

TRANSMISSION GEAR MTM

C50 (0602- )MTM

YARIS | TRANSMISSION GEAR MTM 33038E - RING SET, SYNCHRONIZER, NO.2 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) 33125 - RECEIVER, MANUAL TRANSAXLE CASE 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) 33134B - COVER, OUTPUT SHAFT(MTM) 33151D - RETAINER, BEARING, REAR(MTM) 33151E - BOLT(FOR REAR BEARING RETAINER) 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) 33311X - RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) 33321N - BEARING (FOR OUTPUT SHAFT FRONT) 33326 - PLATE, BEARING LOCK 33326A - BOLT (FOR BEARING LOCK PLATE) 33331 - GEAR, REVERSE 33332 - GEAR, 2ND 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) 33332C - SPACER (FOR 2ND GEAR BEARING) 33333 - GEAR, 3RD 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) 33334 - GEAR, 4TH 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) 33334B - SPACER (FOR 4TH GEAR BEARING) 33335 - GEAR, 1ST 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33336 - GEAR, 5TH 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) 33336B - SPACER (FOR 5TH GEAR BEARING) 33348 - WASHER, 1ST GEAR THRUST 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) 33361 - HUB, TRANSMISSION CLUTCH, NO.1 33361 - HUB, TRANSMISSION CLUTCH, NO.1 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) 33362 - HUB, TRANSMISSION CLUTCH, NO.2 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) 33364 - SLEEVE, TRANSMISSION HUB, NO.2 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33367 - RING, SYNCHRONIZER, NO.1 33368G - RING, SYNCHRONIZER (FOR 3RD GEAR) 33368H - RING, SYNCHRONIZER (FOR 4TH GEAR) 33369 - RING, SYNCHRONIZER, NO.3 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 33393 - HUB, TRANSMISSION CLUTCH, NO.3 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 33395 - SLEEVE, TRANSMISSION HUB, NO.3 33402 - GEAR SUB-ASSY, REVERSE IDLER 33422B - GEAR, 4TH DRIVEN 33423A - GEAR, 3RD DRIVEN 33428C - GEAR, 5TH DRIVEN 33431C - SPACER, OUTPUT GEAR 33451 - SHAFT, REVERSE IDLER GEAR 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) 33462 - WASHER, REVERSE IDLER THRUST 33481 - GEAR, SPEEDOMETER DRIVE (MTM)
