TOYOTA HILUX KUN35R-PRASHT / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

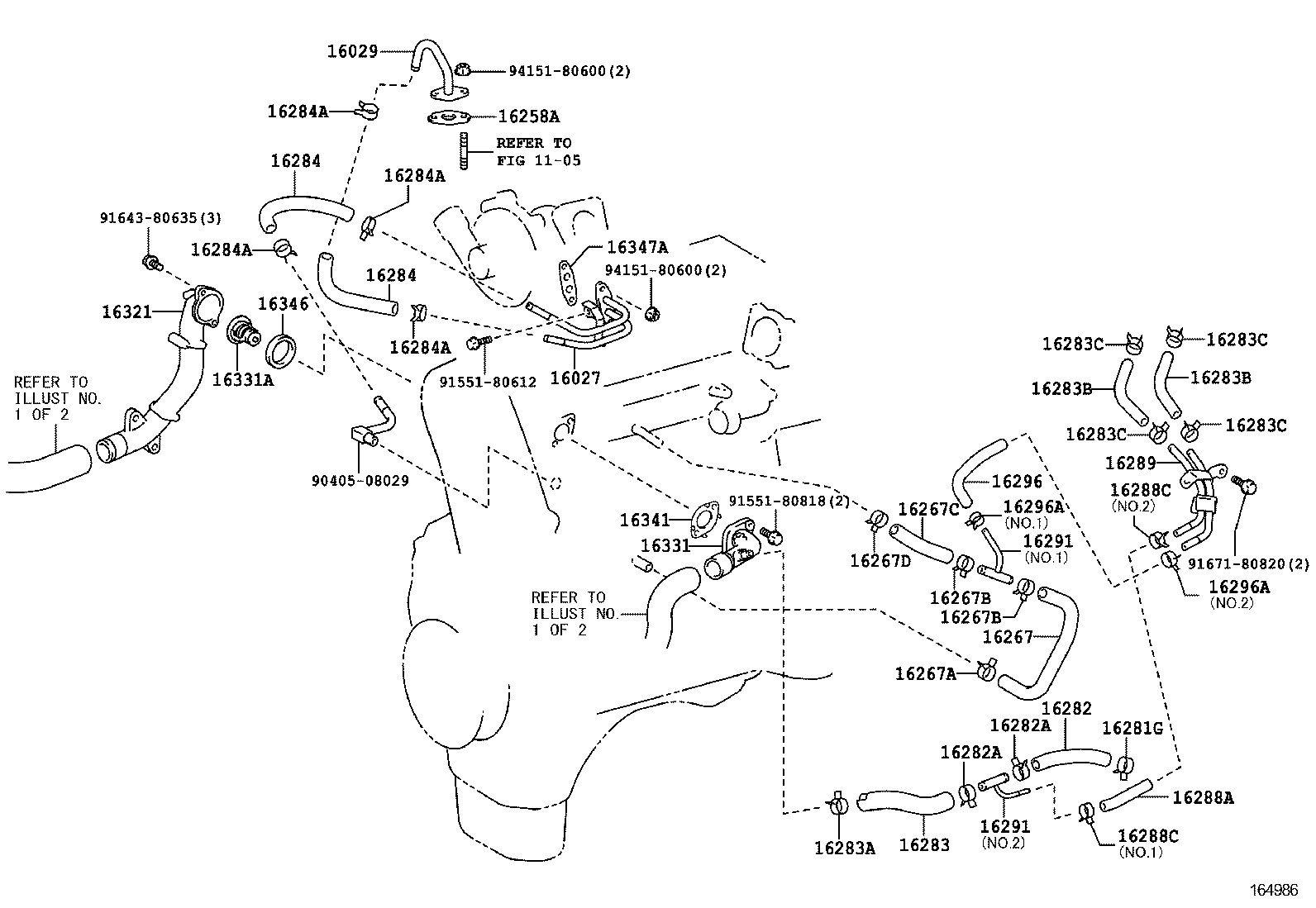

ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN35..5FC

 HILUX |  RADIATOR WATER OUTLET ** Refer Fig 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16029 - PIPE SUB-ASSY, TURBO WATER, NO.3 16258A - GASKET(FOR HEATER RETURN) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267B - CLIP(FOR WATER BY-PASS HOSE) 16267B - CLIP(FOR WATER BY-PASS HOSE) 16267C - HOSE, WATER BY-PASS, NO.4 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283B - HOSE, WATER BY-PASS 16283B - HOSE, WATER BY-PASS 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16284 - HOSE, TURBO WATER, NO.1 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16288A - HOSE(FOR WATER BY-PASS PIPE NO.4) 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) 16289 - PIPE, WATER BY-PASS, NO.5 16291 - JOINT, WATER HOSE 16291 - JOINT, WATER HOSE 16296 - HOSE, WATER BY-PASS, NO.8 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) 16321 - INLET, WATER 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16346 - GASKET, THERMOSTAT 16347A - GASKET(FOR TURBO WATER PIPE)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
