LEXUS IS250 350 2 D ALE20L-AEFLYW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

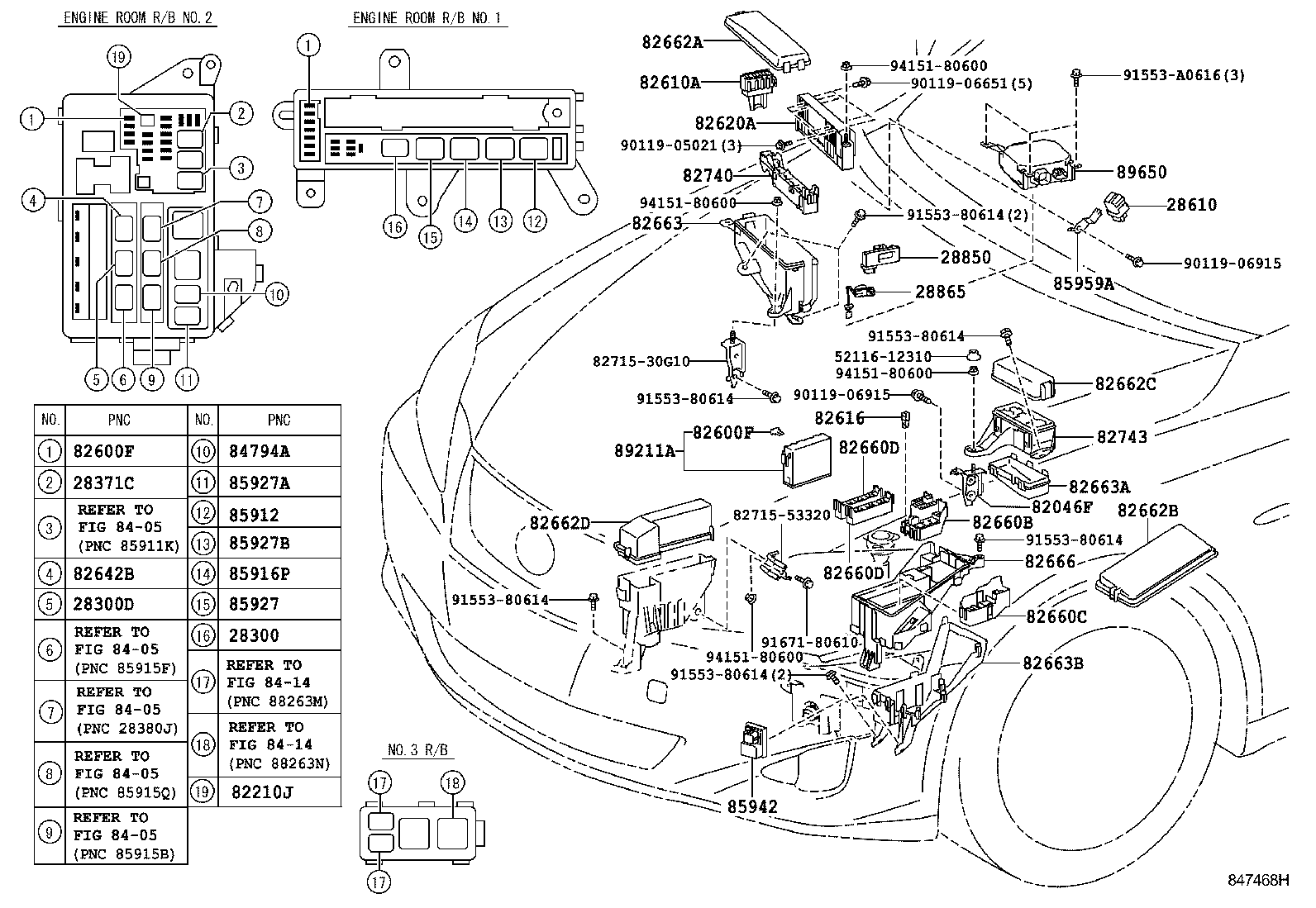

ENGINE ROOM ILLUST NO. 2 OF 7(0511- )ALE20..LHD

IS250 350 2 D | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28300D - RELAY, STARTER CUT 28371C - RELAY, IGNITION, NO.2 28610 - RELAY ASSY, GLOW PLUG 28850 - SENSOR ASSY, BATTERY CURRENT 28865 - SENSOR, BATTERY THERMOMETER ** Std Part 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82610A - BLOCK ASSY, FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82662D - COVER, RELAY BLOCK, UPPER, NO.4 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82666 - HOLDER, CONNECTOR ** Std Part ** Std Part 82740 - BLOCK ASSY, ENGINE ROOM RELAY 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 84794A - RELAY, FR WIPER DEICER 85912 - RELAY, DEFOGGER 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85942 - RELAY, HEADLAMP CLEANER CONTROL 85959A - HOLDER, RELAY 89211A - COMPUTER, MULTIPLEX NETWORK BODY 89650 - COMPUTER ASSY, POWER STEERING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
