LEXUS IS250 350 2 D ALE20L-AEFSYW / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

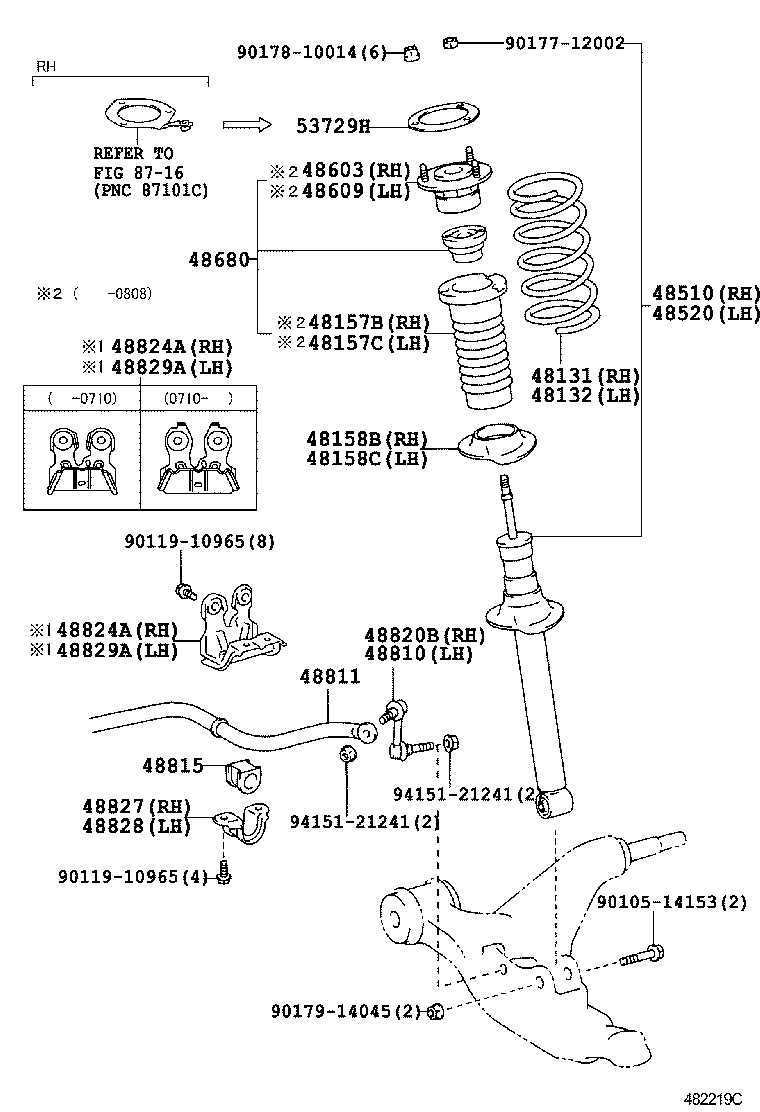

FRONT SPRING SHOCK ABSORBER

W(COMBUSTION HEATER) (0511- )DCR ; (0511- )LHD..DCRL

IS250 350 2 D | FRONT SPRING SHOCK ABSORBER 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 48680 - SUPPORT ASSY, FRONT SUSPENSION 48810 - LINK ASSY, FRONT STABILIZER, LH 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820B - LINK ASSY, FRONT STABILIZER, RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48827 - BRACKET, FRONT STABILIZER, NO.2 RH 48828 - BRACKET, FRONT STABILIZER, NO.2 LH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH 53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
