LEXUS LS460 460L USF40L-AEZGKW / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

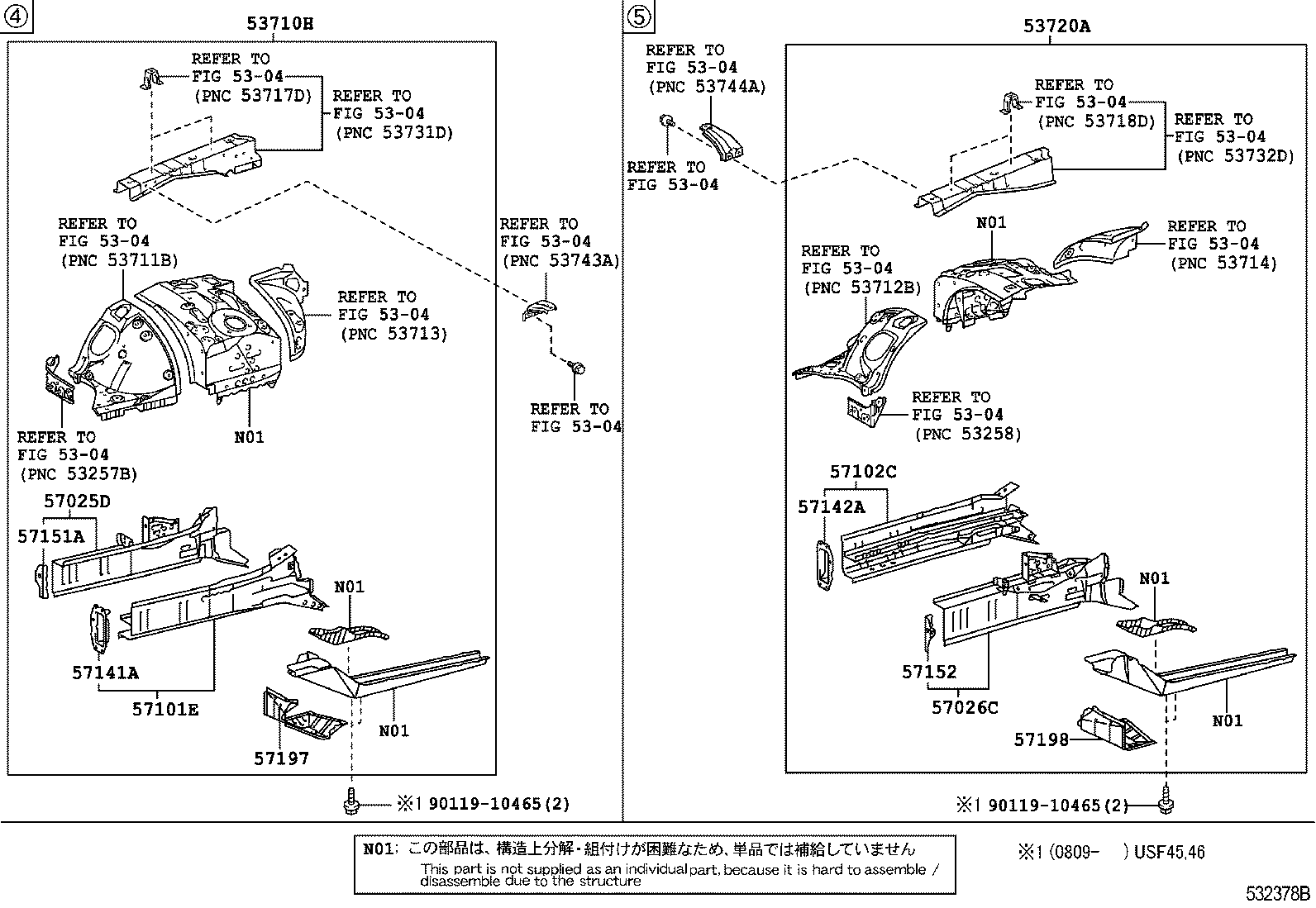

FLOOR SIDE MEMBER

ILLUST NO. 2 OF 2(0608- )

LS460 460L | FLOOR SIDE MEMBER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 53710H - APRON ASSY, FRONT FENDER, RH 53720A - APRON ASSY, FRONT FENDER, LH 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH 57101E - MEMBER SUB-ASSY, FRONT SIDE, INNER RH 57102C - MEMBER SUB-ASSY, FRONT SIDE, INNER LH 57141A - SUPPORT, FRONT BUMPER ARM, RH 57142A - SUPPORT, FRONT BUMPER ARM, LH 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH ** Std Part ** Std Part
