LEXUS LS460 460L USF40L-AEZGKW / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

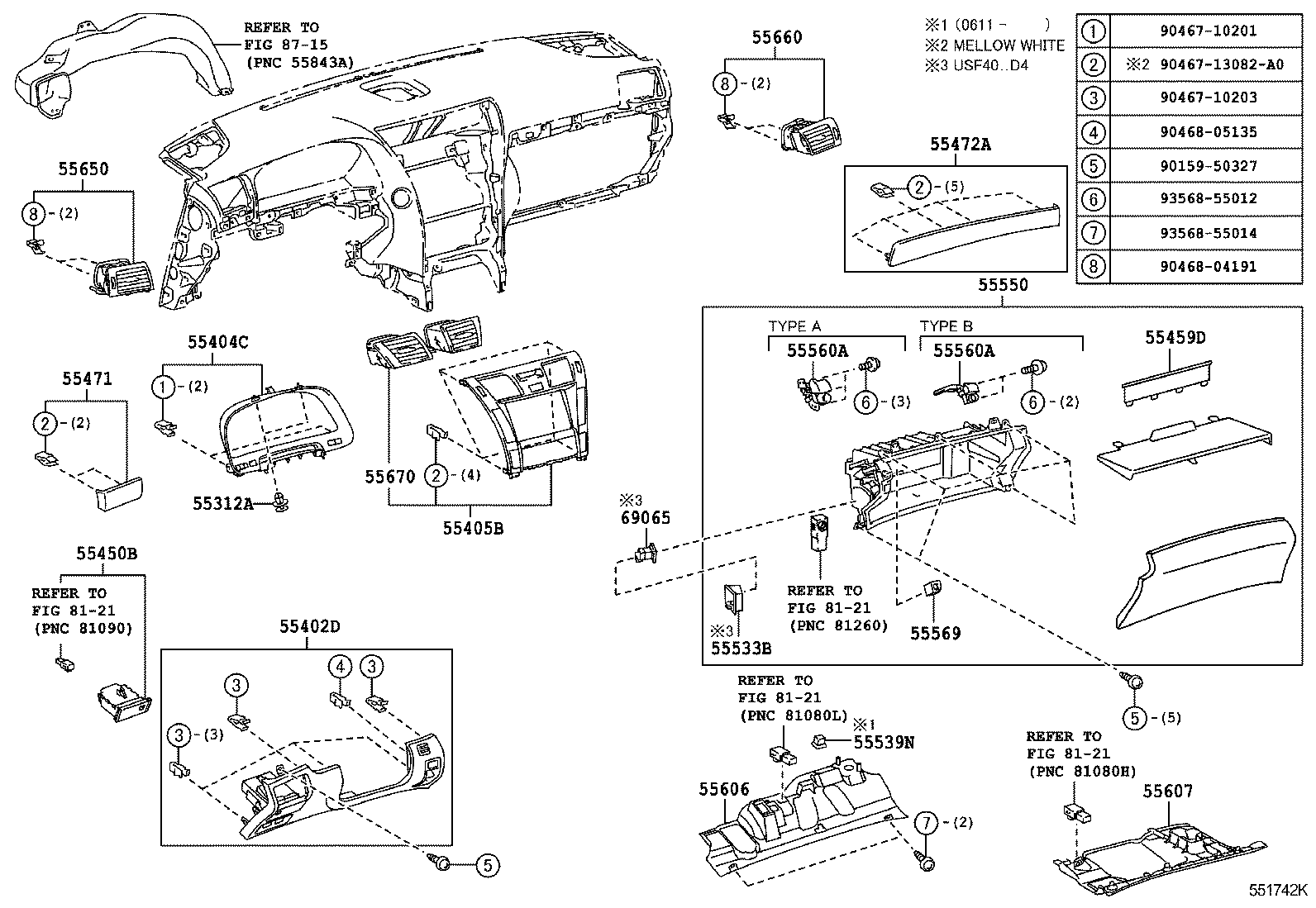

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 2(0608-0809)LHD

LS460 460L | INSTRUMENT PANEL GLOVE COMPARTMENT 55312A - CLIP, INSTRUMENT PANEL 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55450B - BOX ASSY, COIN 55459D - COVER, INSTRUMENT, LOWER LH 55471 - MOULDING, INSTRUMENT CLUSTER, NO.1 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 55533B - PANEL, GLOVE COMPARTMENT SIDE, RH 55539N - COVER, SPARE SWITCH HOLE 55550 - DOOR ASSY, GLOVE COMPARTMENT 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
