LEXUS LS460 460L USF40L-AEZGKW / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

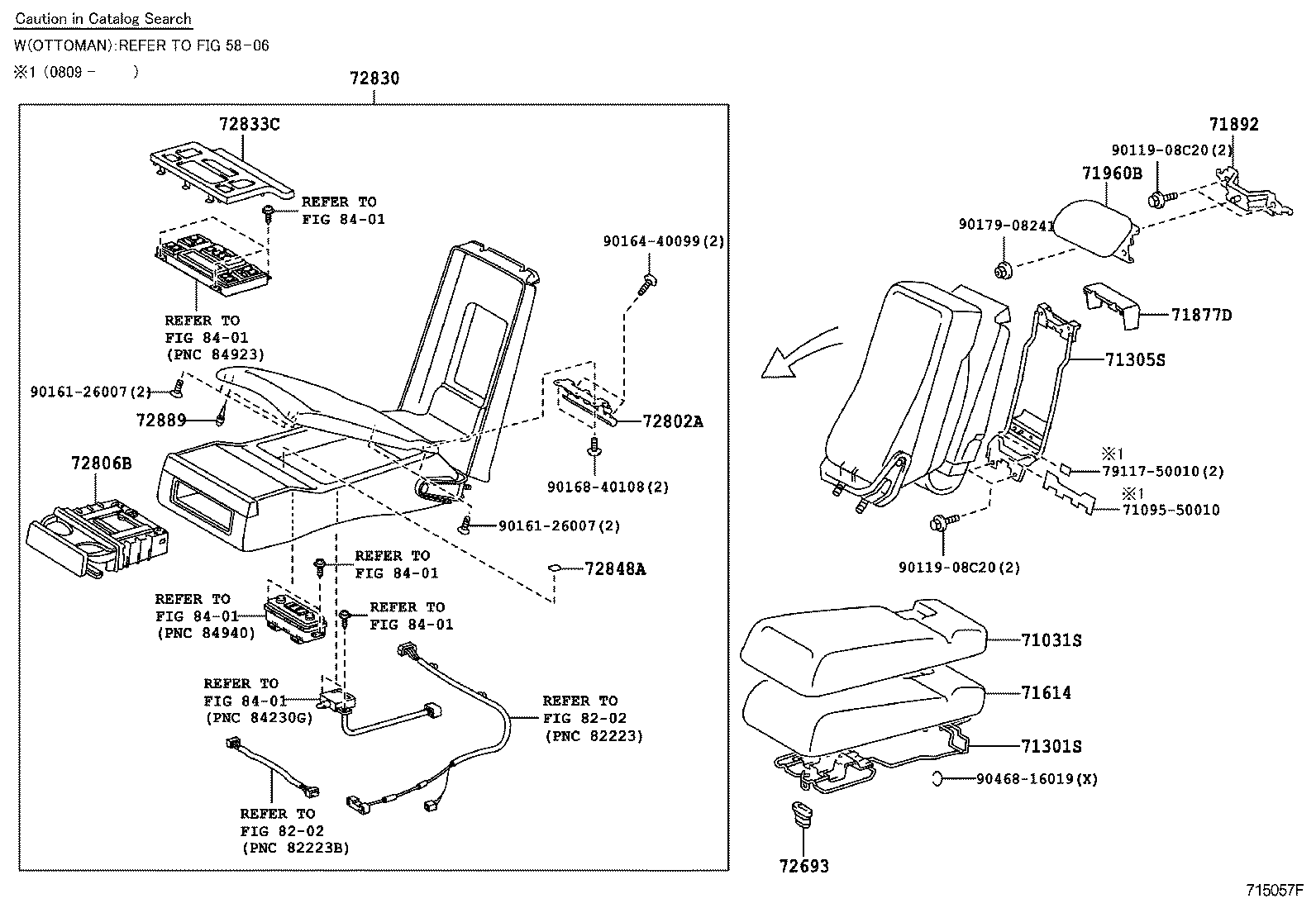

REAR SEAT SEAT TRACK

POWER SEAT(CENTER):W/O(OTTOMAN) (0608-0909)

LS460 460L | REAR SEAT SEAT TRACK 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION ** Std Part 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION 71305S - FRAME SUB-ASSY, CENTER SEAT BACK 71614 - PAD, REAR SEAT CUSHION, CENTER 71877D - COVER, REAR SEAT ARMREST HOLE 71892 - BRACKET, REAR SEAT BACK SET, NO.2 71960B - HEADREST ASSY, REAR SEAT, CENTER 72693 - HOOK, REAR SEAT CUSHION LOCK 72802A - HINGE SUB-ASSY, ARMREST CONSOLE 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP 72830 - ARMREST ASSY, REAR SEAT, CENTER 72833C - PANEL, REAR SEAT CENTER ARMREST, NO.1 72848A - CAP, SEAT ARMREST, NO.1 72889 - PIN, REAR SEAT CENTER ARMREST SET ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
