LEXUS LS460 460L USF40L-AEZGKW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

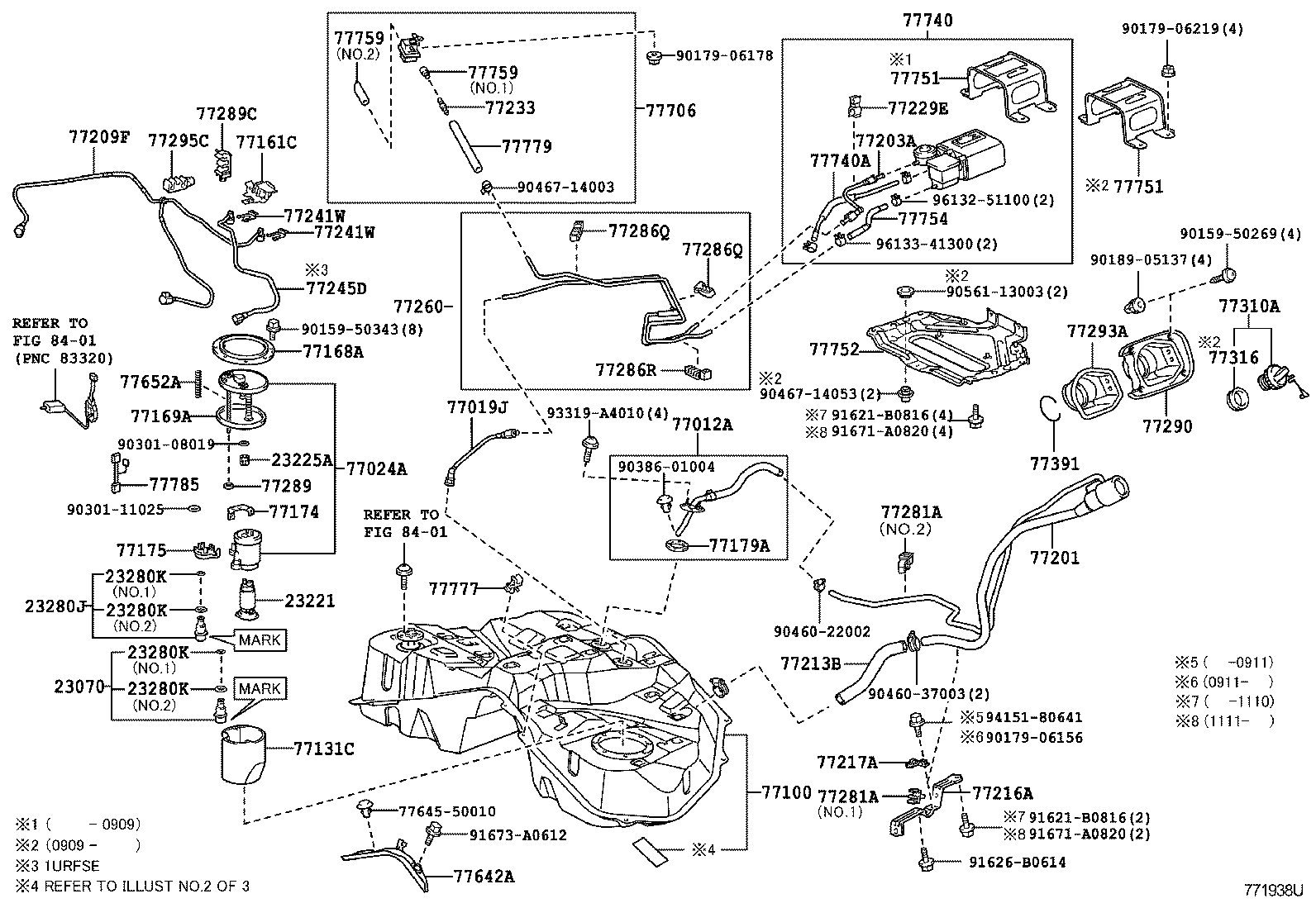

FUEL TANK ILLUST NO. 1 OF 3(0608- )

LS460 460L | FUEL TANK TUBE 23070 - VALVE ASSY, FUEL MAIN 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER 77024A - PLATE SUB-ASSY, FUEL SUCTION 77100 - TANK ASSY, FUEL 77131C - SUB-TANK, FUEL, NO.1 77161C - PROTECTOR, FUEL TANK, LOWER 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77175 - SUPPORT, FUEL SUCTION, NO.2 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77203A - TUBE SUB-ASSY, FUEL SUCTION 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77229E - CLAMP, BREATHER TUBE 77233 - JOINT, FUEL HOSE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77245D - TUBE, FUEL TANK RETURN VENT 77260 - HOSE ASSY, FUEL MAIN 77281A - CLAMP, FUEL FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77286Q - CLAMP, FUEL TUBE, NO.9 77286Q - CLAMP, FUEL TUBE, NO.9 77286R - CLAMP, FUEL TUBE, NO.10 77289 - HOLDER, FUEL TANK PIPE SETTING 77289C - CLAMP, FUEL TUBE, NO.4 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77295C - GROMMET, FUEL TUBE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77391 - RING, FUEL INLET BOX 77642A - PROTECTOR, FUEL TANK, NO.2 ** Std Part 77652A - CUSHION, FUEL TANK, NO.2 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77751 - BRACKET, CHARCOAL CANISTER BASE 77752 - BRACKET, CHARCOAL CANISTER SUPPORT 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77759 - HOSE, CHARCOAL CANISTER 77759 - HOSE, CHARCOAL CANISTER 77777 - BRACKET, FUEL TUBE CLAMP 77779 - TUBE, CHARCOAL CANISTER OUTLET 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
