LEXUS LS460 460L USF40L-AEZGKW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

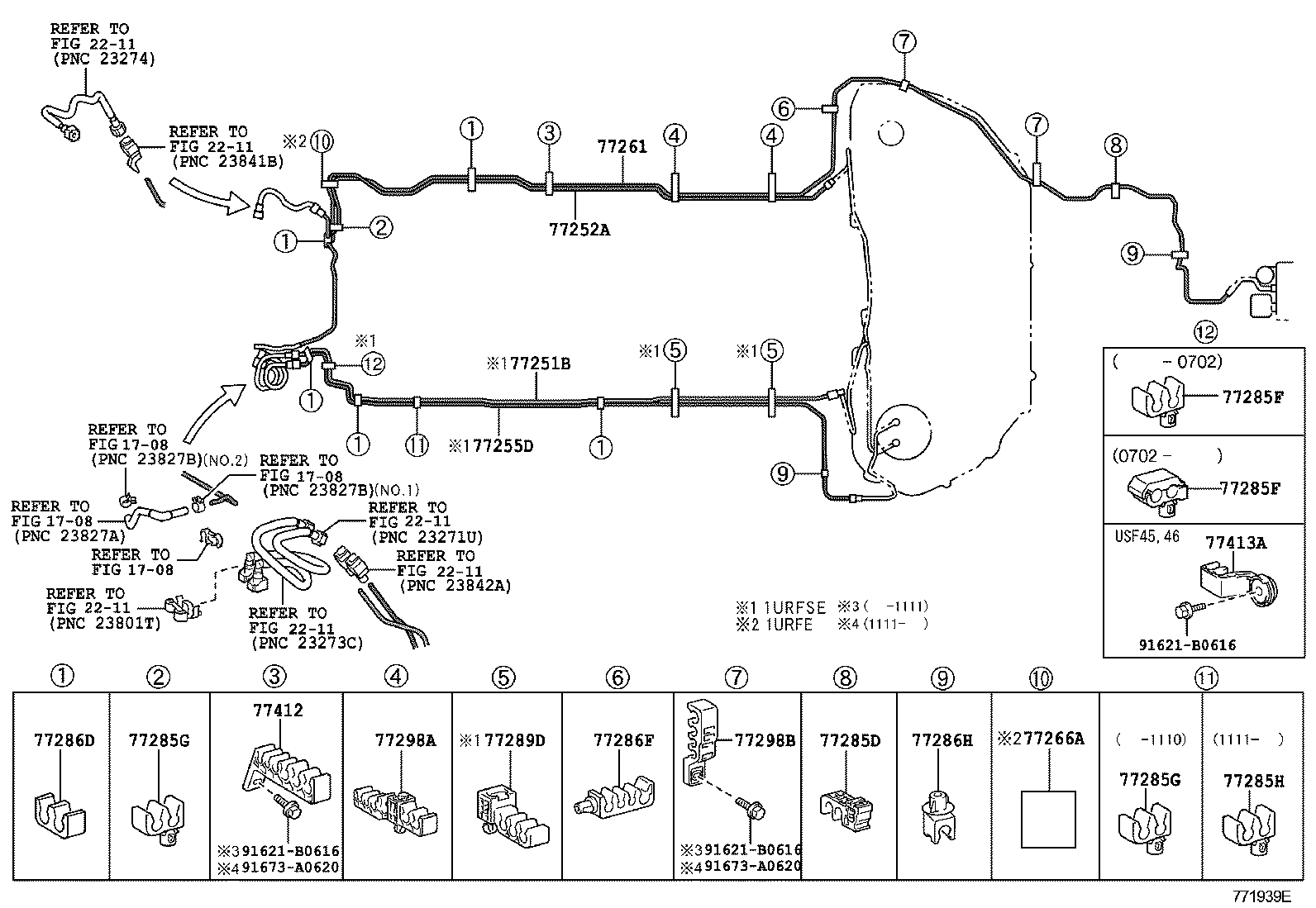

FUEL TANK TUBE

FUEL TUBE ILLUST NO. 3 OF 3(0608- )

LS460 460L | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77255D - TUBE, FUEL RETURN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77266A - PROTECTOR, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77285H - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2 77286H - CLAMP, FUEL TUBE, NO.3 77289D - CLAMP, FUEL TUBE, NO.5 77298A - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
