LEXUS LS460 460L USF40L-AEZGKW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

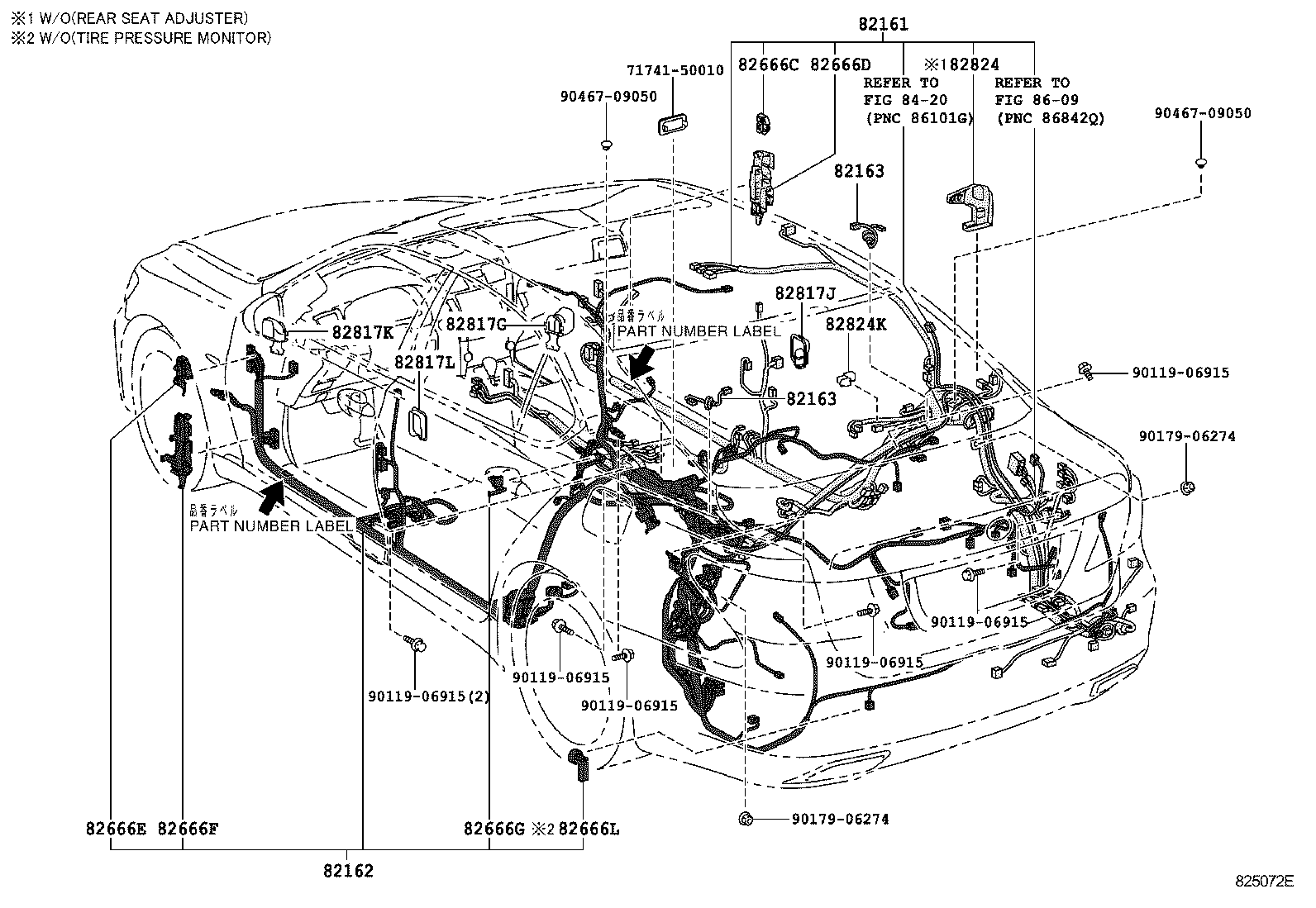

WIRING CLAMP

FLOOR ILLUST NO. 5 OF11(0608-0809)LHD

LS460 460L | WIRING CLAMP ** Std Part 82161 - WIRE, FLOOR 82162 - WIRE, FLOOR, NO.2 82163 - WIRE, FLOOR, NO.3 82163 - WIRE, FLOOR, NO.3 82666C - HOLDER, CONNECTOR NO.4 82666D - HOLDER, CONNECTOR NO.5 82666E - HOLDER, CONNECTOR NO.6 82666F - HOLDER, CONNECTOR NO.7 82666G - HOLDER, CONNECTOR NO.8 82666L - HOLDER, CONNECTOR NO.9 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817J - PROTECTOR, WIRING HARNESS, NO.9 82817K - PROTECTOR, WIRING HARNESS, NO.10 82817L - PROTECTOR, WIRING HARNESS, NO.11 82824 - CONNECTOR, WIRING HARNESS 82824K - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
