LEXUS LS460 460L USF40L-AEZGKW / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING CONTROL AIR DUCT

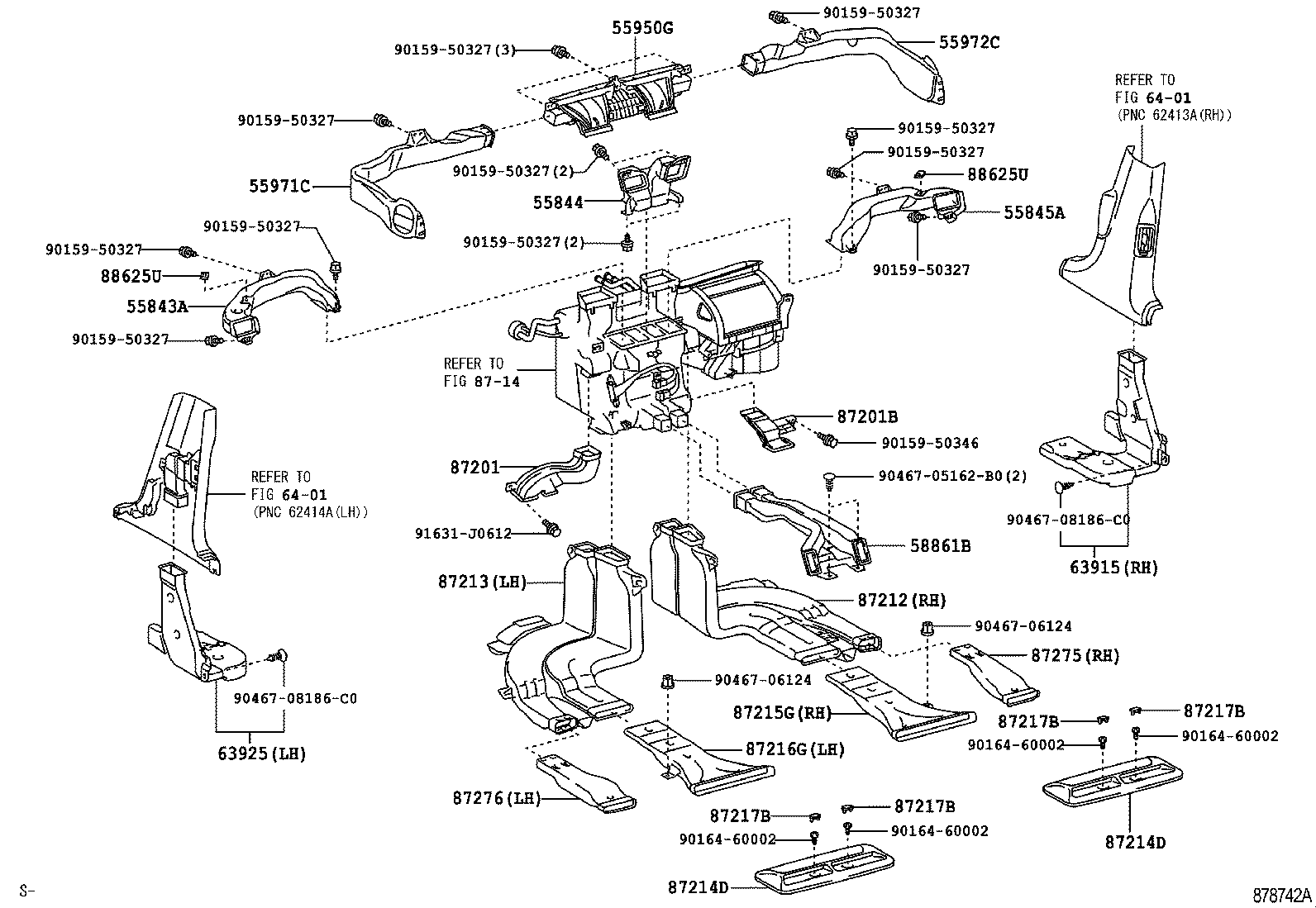

FRONT AIR DUCT ILLUST NO. 3 OF 5(0608- )LHD

LS460 460L | HEATING AIR CONDITIONING CONTROL AIR DUCT 55843A - DUCT, HEATER TO REGISTER, NO.1 55844 - DUCT, HEATER TO REGISTER, NO.2 55845A - DUCT, HEATER TO REGISTER, NO.3 55950G - NOZZLE ASSY, DEFROSTER 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 58861B - DUCT, CONSOLE BOX, NO.1 63915 - DUCT, COOLER, INNER NO.1 RH 63925 - DUCT, COOLER, INNER NO.1 LH ** Refer Fig ** Refer Fig ** Refer Fig 87201 - DUCT SUB-ASSY, AIR, NO.1 87201B - DUCT SUB-ASSY, AIR, NO.2 87212 - DUCT, AIR, REAR NO.1 87213 - DUCT, AIR, REAR NO.2 87214D - DUCT, AIR, REAR NO.3 87214D - DUCT, AIR, REAR NO.3 87215G - GUIDE, AIR DUCT, REAR RH 87216G - GUIDE, AIR DUCT, REAR LH 87217B - PLUG, AIR DUCT 87217B - PLUG, AIR DUCT 87217B - PLUG, AIR DUCT 87217B - PLUG, AIR DUCT 87275 - DUCT, FLOOR HEATER AIR, NO.1 RH 87276 - DUCT, FLOOR HEATER AIR, NO.1 LH 88625U - THERMISTOR, COOLER (DUCT SENSOR) 88625U - THERMISTOR, COOLER (DUCT SENSOR) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
