LEXUS LX570 URJ201L-GNTGKW / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

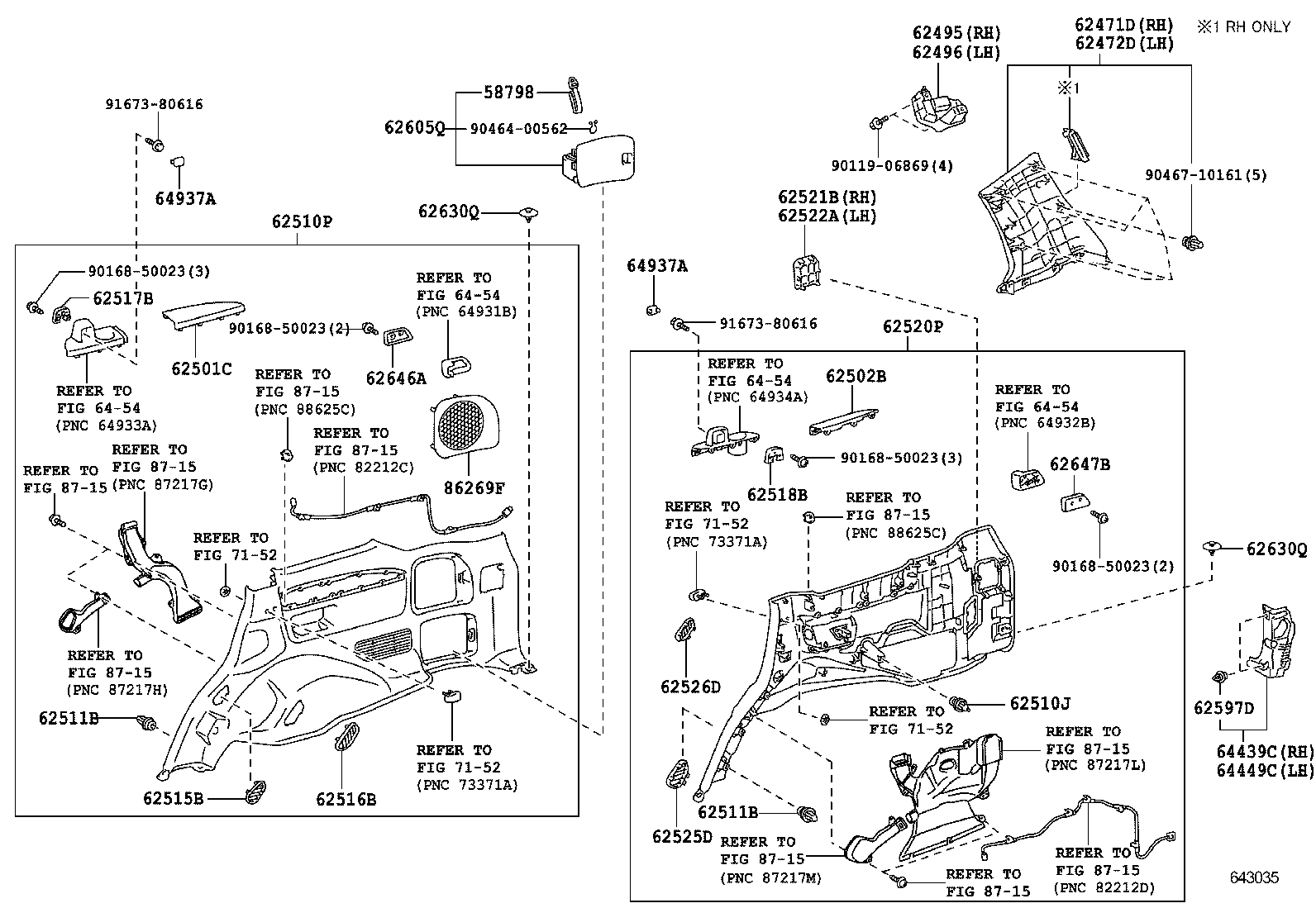

INSIDE TRIM BOARD

W/O(REAR NO.2 SEAT) ILLUST NO. 2 OF 2(1201- )

LX570 | INSIDE TRIM BOARD 58798 - BAND, JACK CLAMP,NO.2 62471D - GARNISH, REAR PILLAR, UPPER RH 62472D - GARNISH, REAR PILLAR, UPPER LH 62495 - SPACER, ROOF SIDE INNER GARNISH, RH 62496 - SPACER, ROOF SIDE INNER GARNISH, LH 62501C - COVER SUB-ASSY, QUARTER TRIM, RH 62502B - COVER SUB-ASSY, QUARTER TRIM, LH 62510J - RETAINER, QUARTER TRIM 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) 62515B - COVER, SIDE TRIM BASE, NO.1 RH 62516B - COVER, SIDE TRIM BASE, NO.2 RH 62517B - BASE, QUARTER TRIM, FRONT RH 62518B - BASE, QUARTER TRIM, FRONT LH 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH 62521B - COVER, QUARTER TRIM, RH 62522A - COVER, QUARTER TRIM, LH 62525D - COVER, SIDE TRIM BASE, NO.1 LH 62526D - COVER, SIDE TRIM BASE, NO.2 LH 62597D - CLIP 62605Q - LID SUB-ASSY, QUARTER TRIM, RH 62630Q - CLIP (FOR QUARTER TRIM) 62630Q - CLIP (FOR QUARTER TRIM) 62646A - BASE, QUARTER TRIM, REAR RH 62647B - BASE, QUARTER TRIM, REAR LH 64439C - COVER, LUGGAGE ROOM BOX SIDE, RH 64449C - COVER, LUGGAGE ROOM BOX SIDE, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 64937A - CAP, TONNEAU COVER HOLDER, NO.1 64937A - CAP, TONNEAU COVER HOLDER, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 86269F - GRILLE, SPEAKER, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
