LEXUS LS400 UCF10L-AEPGKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

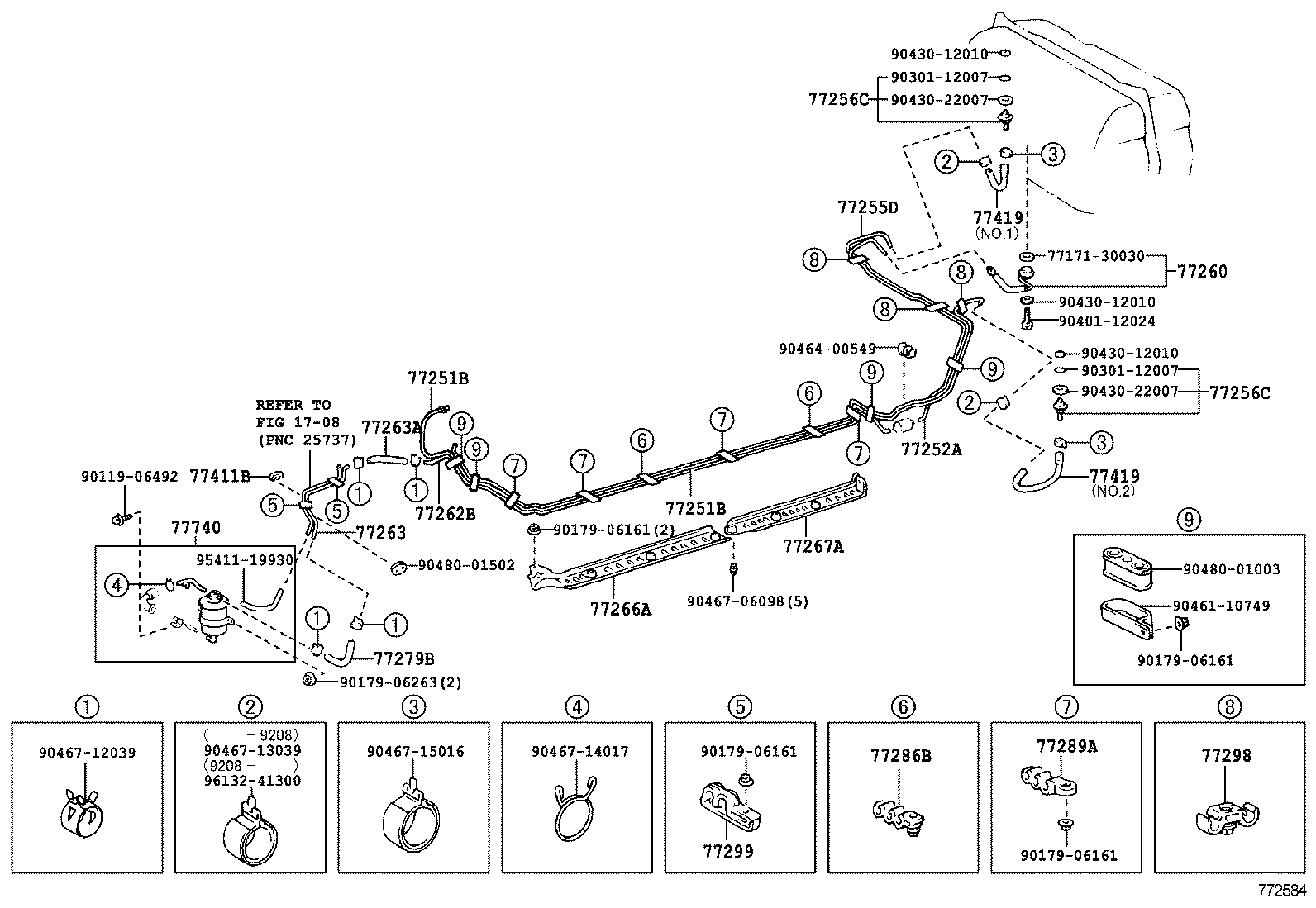

FUEL TANK TUBE

ILLUST NO. 2 OF 2(8912- )LHD

LS400 | FUEL TANK TUBE ** Refer Fig ** Std Part 77251B - TUBE, FUEL MAIN 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77255D - TUBE, FUEL RETURN 77256C - TUBE, FUEL RETURN, NO.2 77256C - TUBE, FUEL RETURN, NO.2 77260 - HOSE ASSY, FUEL MAIN 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 77263A - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE) 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3) 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77419 - HOSE, FUEL, NO.3 77419 - HOSE, FUEL, NO.3 77740 - CANISTER ASSY, CHARCOAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
