LEXUS ES300 MCV20L-BTPGKV / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

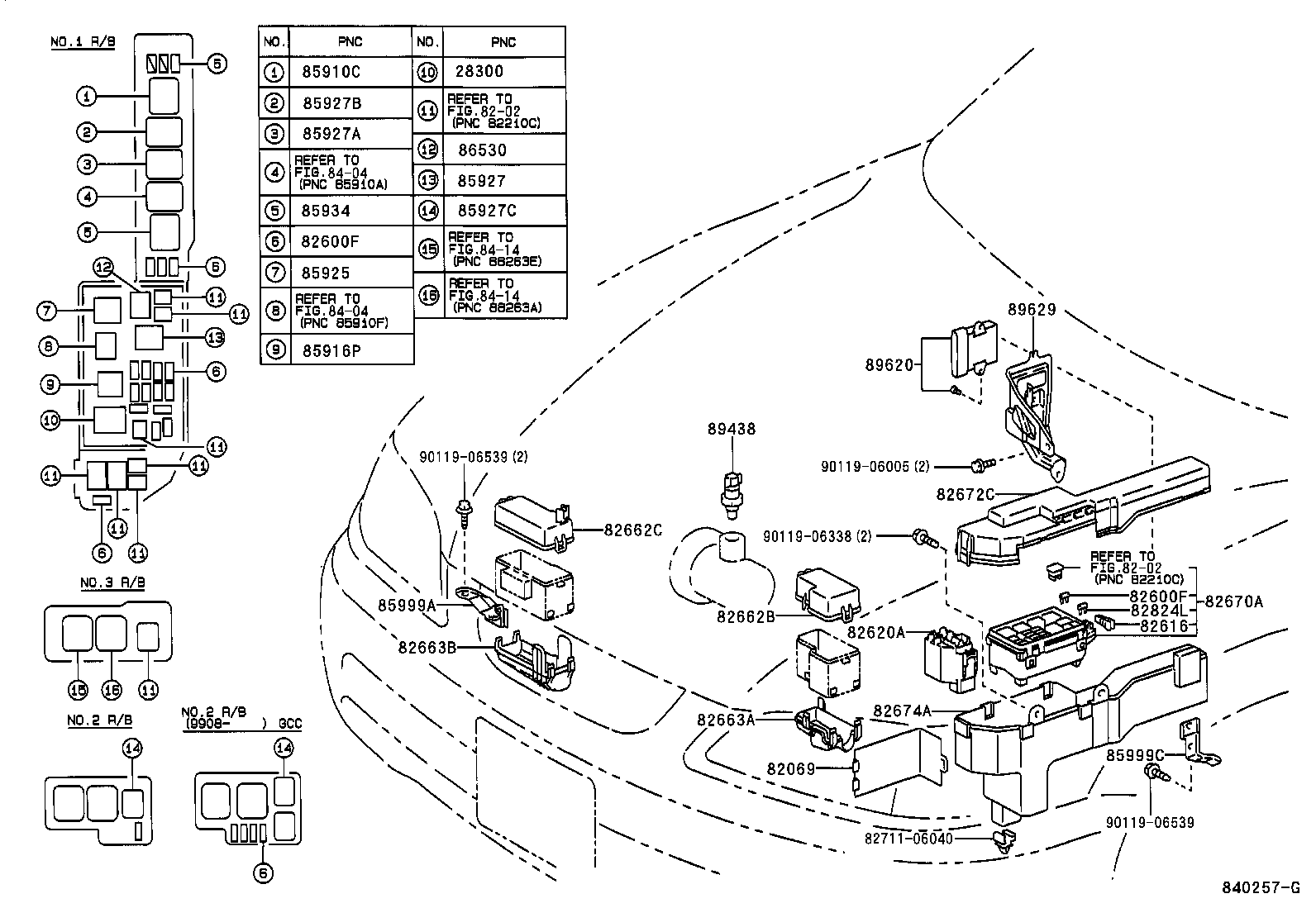

ENGINE ROOM ILLUST NO. 2 OF 6(9608- )

ES300 | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER ** Refer Fig ** Refer Fig 82069 - COVER SET, JUNCTION BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82670A - BLOCK ASSY, JUNCTION, NO.1 82672C - COVER, JUNCTION BLOCK 82674A - COVER, JUNCTION BLOK, LOWER ** Std Part 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916P - RELAY, HEADLAMP 85925 - RELAY, RADIATOR FAN 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85927C - RELAY, COOLING FAN, NO.4 85934 - RELAY, MAGNET-CLUTCH 85999A - BRACKET, RELAY, NO.2 85999C - BRACKET, RELAY, NO.3 86530 - RELAY ASSY, HORN 89438 - SWITCH, POWER STEERING OIL PRESSURE 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part
