LEXUS LX470 UZJ100R-GNPGKQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

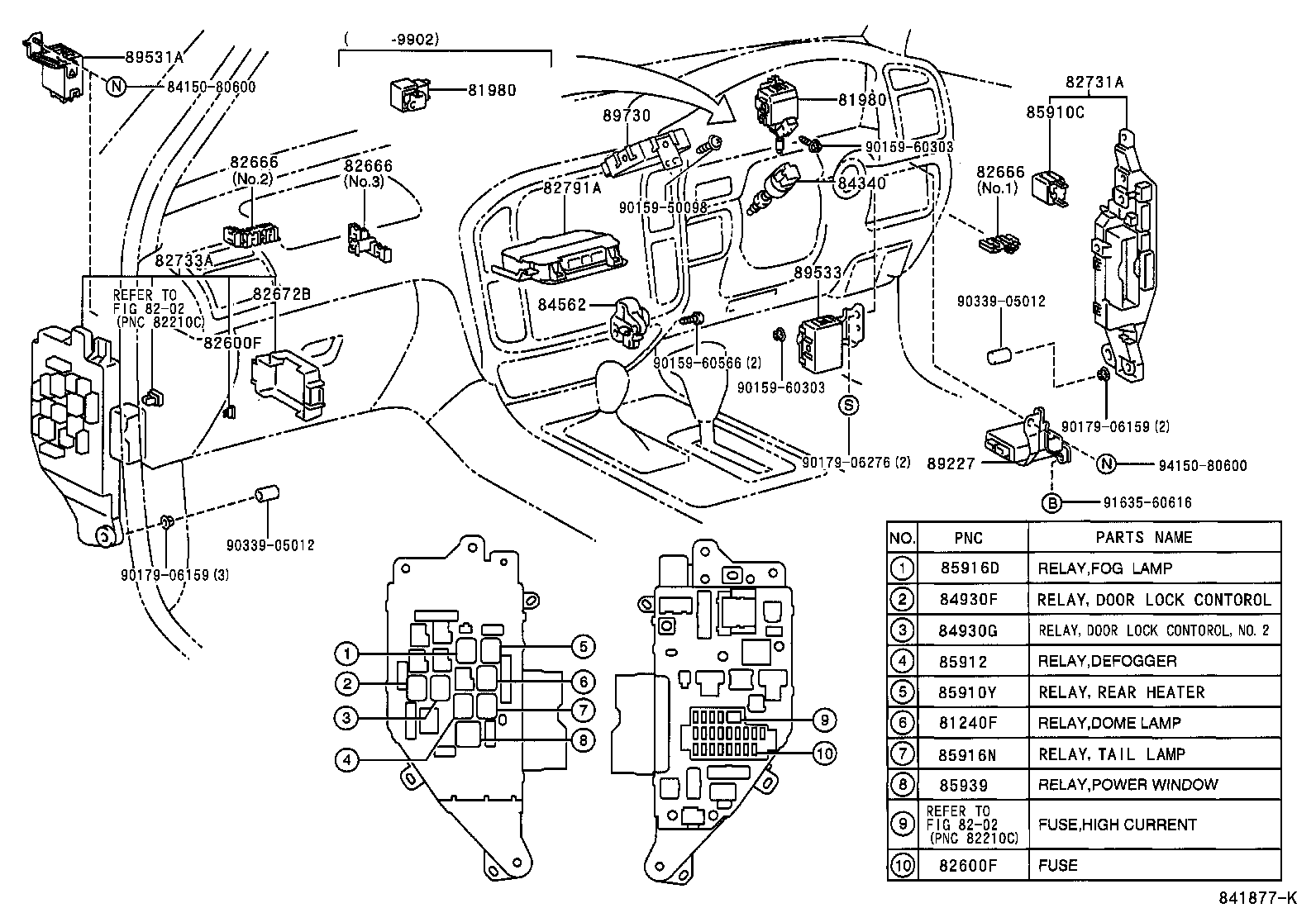

COWL ILLUST NO. 3 OF 9(9801-0208)RHD

LX470 | SWITCH RELAY COMPUTER 81240F - RELAY, DOME LAMP 81980 - FLASHER ASSY, TURN SIGNAL 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82666 - HOLDER, CONNECTOR 82666 - HOLDER, CONNECTOR 82666 - HOLDER, CONNECTOR 82672B - COVER, JUNCTION BLOCK 82731A - BLOCK, COWL SIDE JUNCTION, RH 82733A - BLOCK, COWL SIDE JUNCTION, LH 82791A - CONTROLLER & JUNCTION, INSTRUMENT PANEL ** Std Part 84340 - SWITCH ASSY, STOP LAMP 84562 - SWITCH, FUEL CONTROL 84930F - RELAY, DOOR LOCK CONTOROL 84930G - RELAY, DOOR LOCK CONTROL, NO.2 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910Y - RELAY, REAR HEATER 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85939 - RELAY, POWER WINDOW 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC 89531A - RELAY, TRANSMISSION CONTROL 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL 89730 - COMPUTER ASSY, SECURITY WARNING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
