LEXUS GS300 430 JZS160R-BEAQFW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

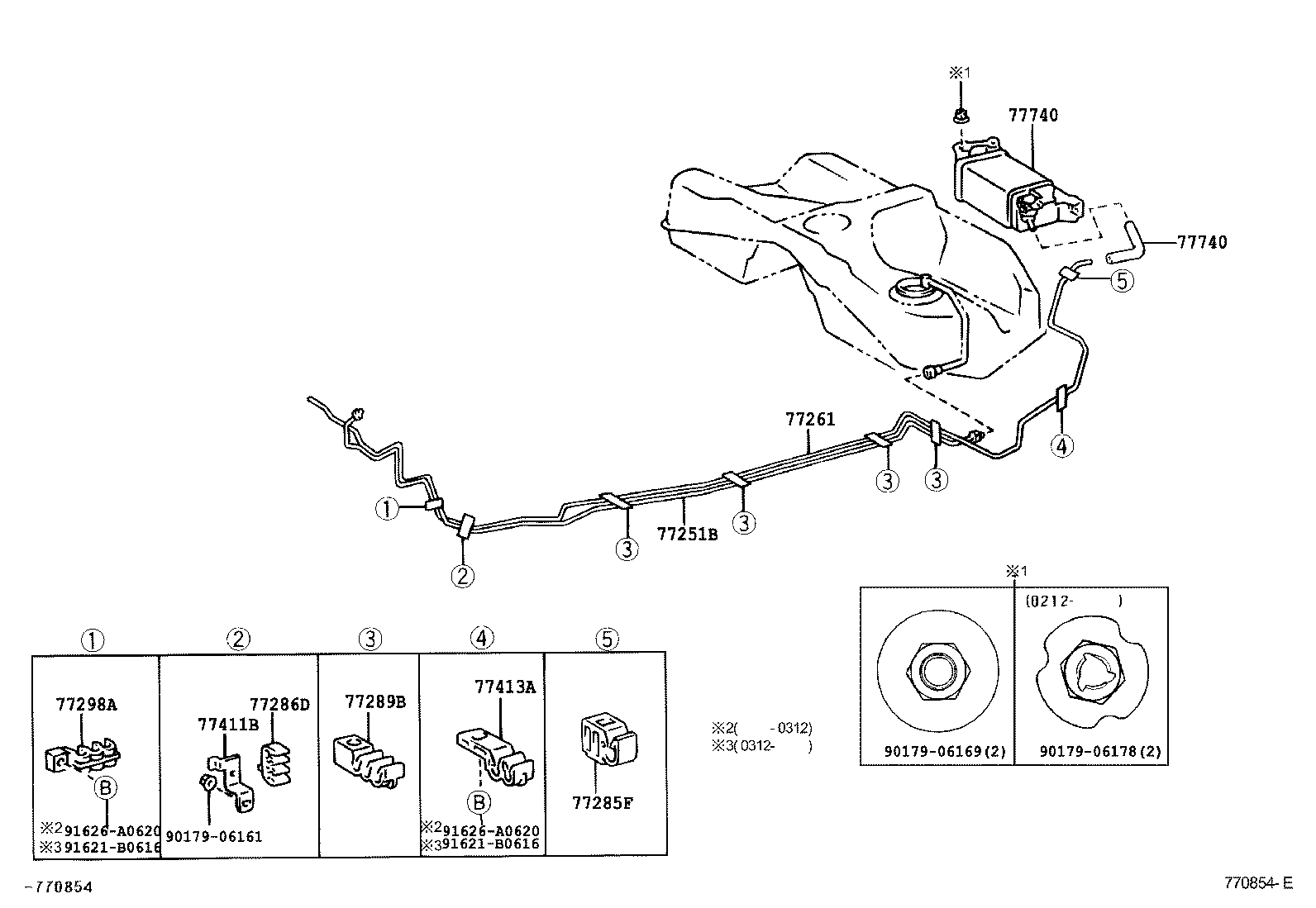

ILLUST NO. 2 OF 2(0007- )JZS160..RHD

GS300 430 | FUEL TANK TUBE 77251B - TUBE, FUEL MAIN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77285F - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77298A - CLAMP, FUEL TUBE, NO.4 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77740 - CANISTER ASSY, CHARCOAL 77740 - CANISTER ASSY, CHARCOAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
