LEXUS IS200 300 GXE10L-AEPVKW / ELECTRICAL / HEADLAMP CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

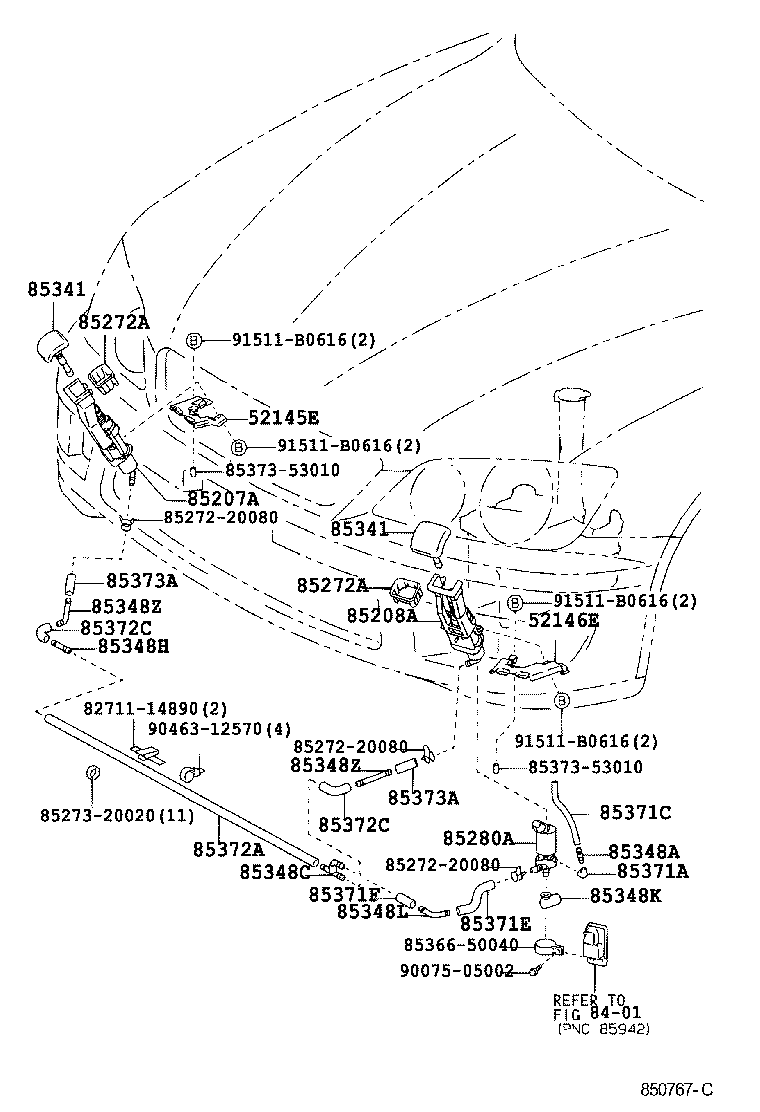

HEADLAMP CLEANER

KOREA SPEC (0107- )GXE10..LHD..ATM

IS200 300 | HEADLAMP CLEANER 52145E - BRACKET, FRONT BUMPER SIDE MOUNTING, RH 52146E - BRACKET, FRONT BUMPER SIDE MOUNTING, LH ** Std Part ** Refer Fig 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH ** Std Part ** Std Part ** Std Part 85272A - CLAMP, HEADLAMP CLEANER, NO.1 85272A - CLAMP, HEADLAMP CLEANER, NO.1 ** Std Part 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER 85341 - NOZZLE, HEADLAMP CLEANER WASHER 85341 - NOZZLE, HEADLAMP CLEANER WASHER 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 ** Std Part 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) 85371C - HOSE, HEADLAMP CLEANER, NO.1 85371E - HOSE, HEADLAMP CLEANER, NO.3 85371F - HOSE, HEADLAMP CLEANER, NO.4 85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE) 85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE) 85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE) ** Std Part ** Std Part 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
