LEXUS LS430 UCF30L-AETGKW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

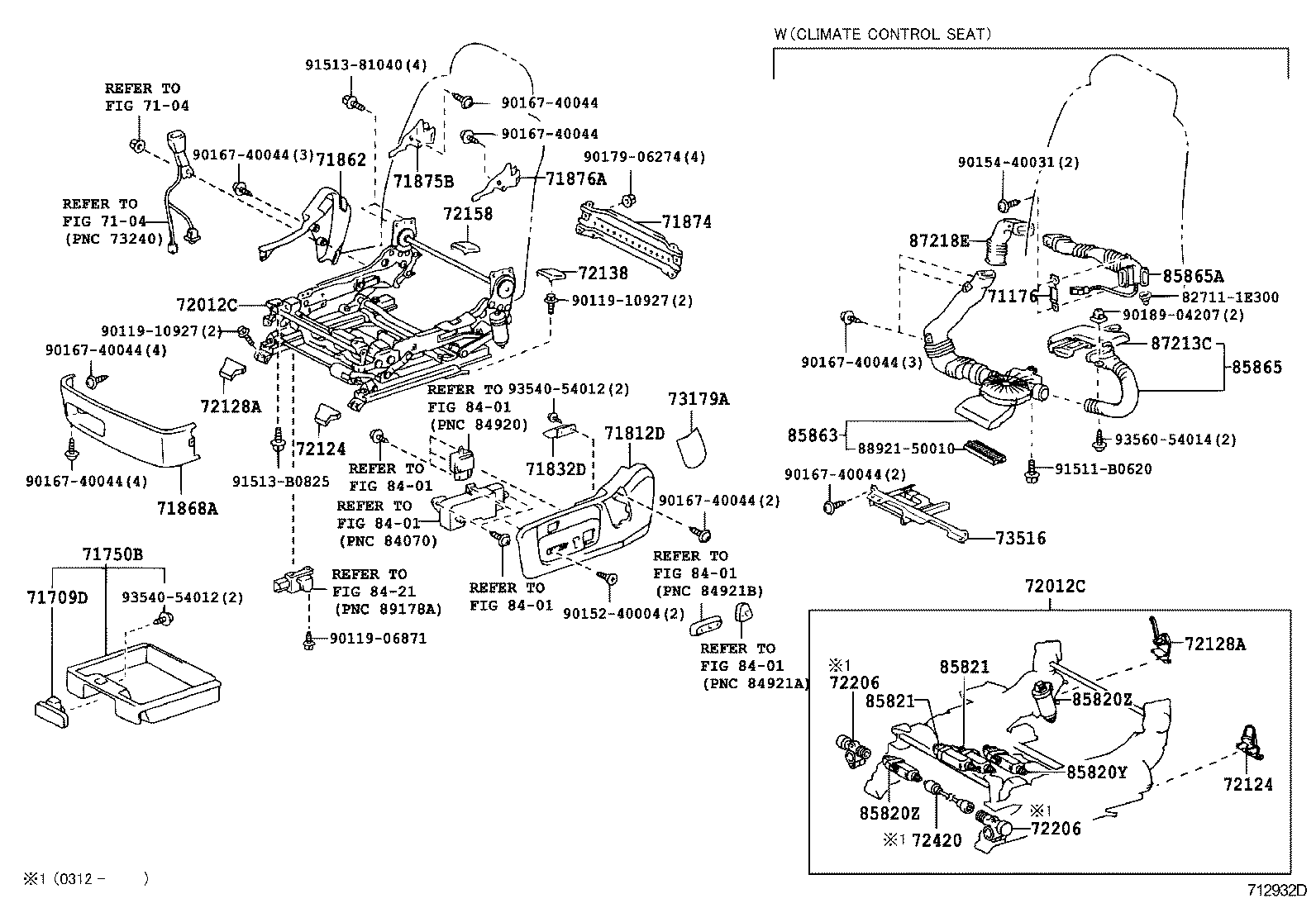

FRONT SEAT SEAT TRACK

LH ILLUST NO. 2 OF 2(0307- )LHD

LS430 | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH 71709D - LOCK SUB-ASSY, SEAT UNDER TRAY 71750B - TRAY ASSY, FRONT SEAT UNDER 71812D - SHIELD, FRONT SEAT CUSHION, LH 71832D - COVER, FRONT SEAT HINGE, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72138 - COVER, SEAT TRACK OUTER, LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 72420 - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.2 73179A - CAP, SEAT BELT ANCHOR COVER, LH 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85820Y - MOTOR ASSY, POWER SEAT 85820Z - MOTOR ASSY, POWER SEAT 85820Z - MOTOR ASSY, POWER SEAT 85821 - MOTOR ASSY, POWER SEAT 85821 - MOTOR ASSY, POWER SEAT 85863 - BLOWER, SEAT CLIMATE CONTROL, LH 85865 - CONTROLLER, SEAT CLIMATE CONTROL,LH 85865A - CONTROLLER, SEAT CLIMATE CONTROL, LH 87213C - DUCT, AIR, REAR LH 87218E - DUCT, AIR, RR NO.6 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
