LEXUS IS250 350 2 D ALE20L-AEFLYW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

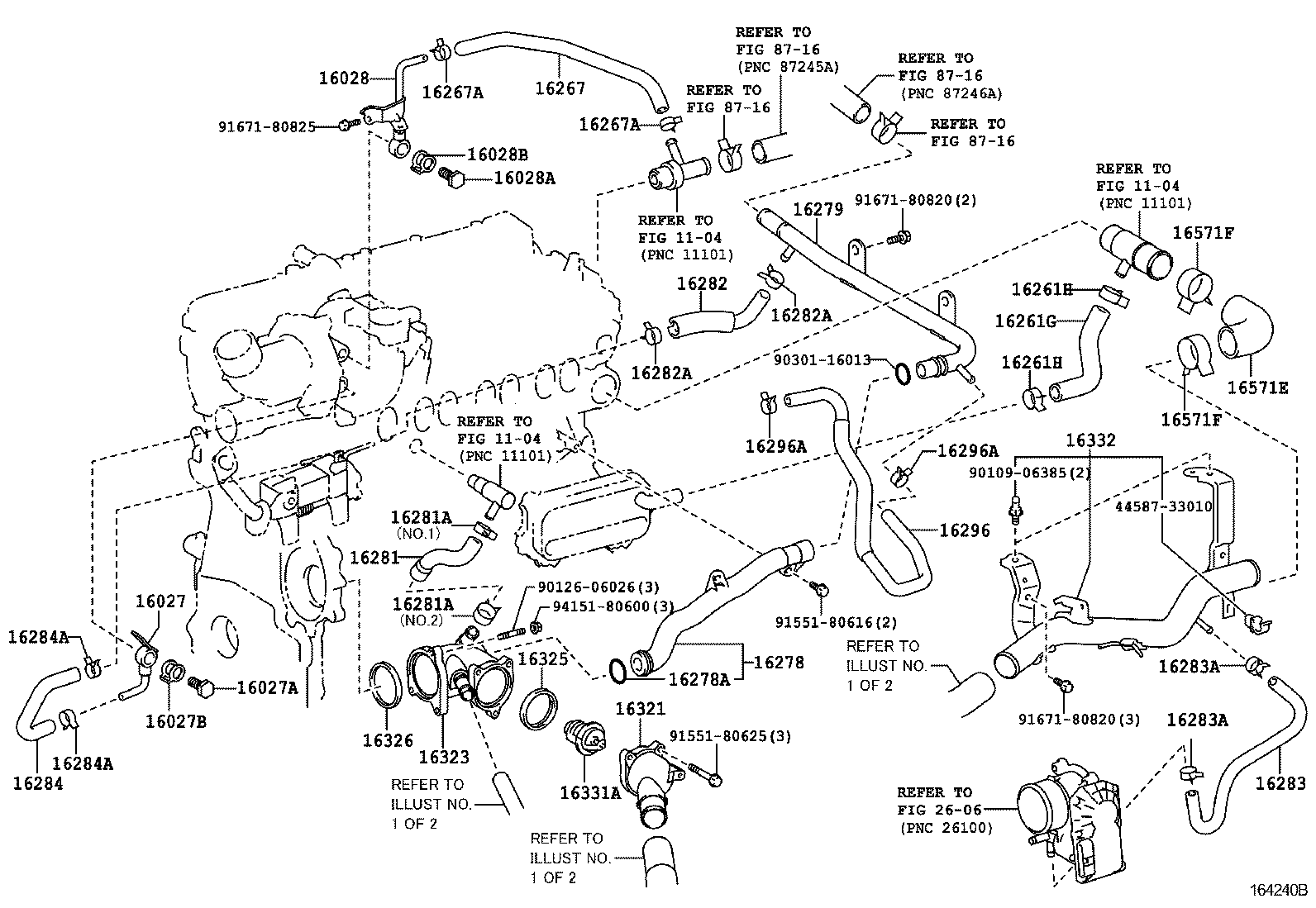

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(1008- )2ADFHV

IS250 350 2 D | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig ** Refer Fig 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) 16028B - GASKET(FOR TURBO WATER PIPE NO.2) 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16278 - PIPE, WATER BY-PASS, NO.2 16278A - GASKET, WATER BY-PASS 16279 - PIPE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16296 - HOSE, WATER BY-PASS, NO.8 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) 16321 - INLET, WATER 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16326 - GASKET, WATER INLET HOUSING, NO.2 16331A - THERMOSTAT 16332 - PIPE, WATER OUTLET, NO.1 16571E - HOSE, WATER 16571F - CLAMP OR CLIP(FOR WATER HOSE) 16571F - CLAMP OR CLIP(FOR WATER HOSE) ** Refer Fig ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
