LEXUS LX460 570 URJ201R-GNTGKQ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

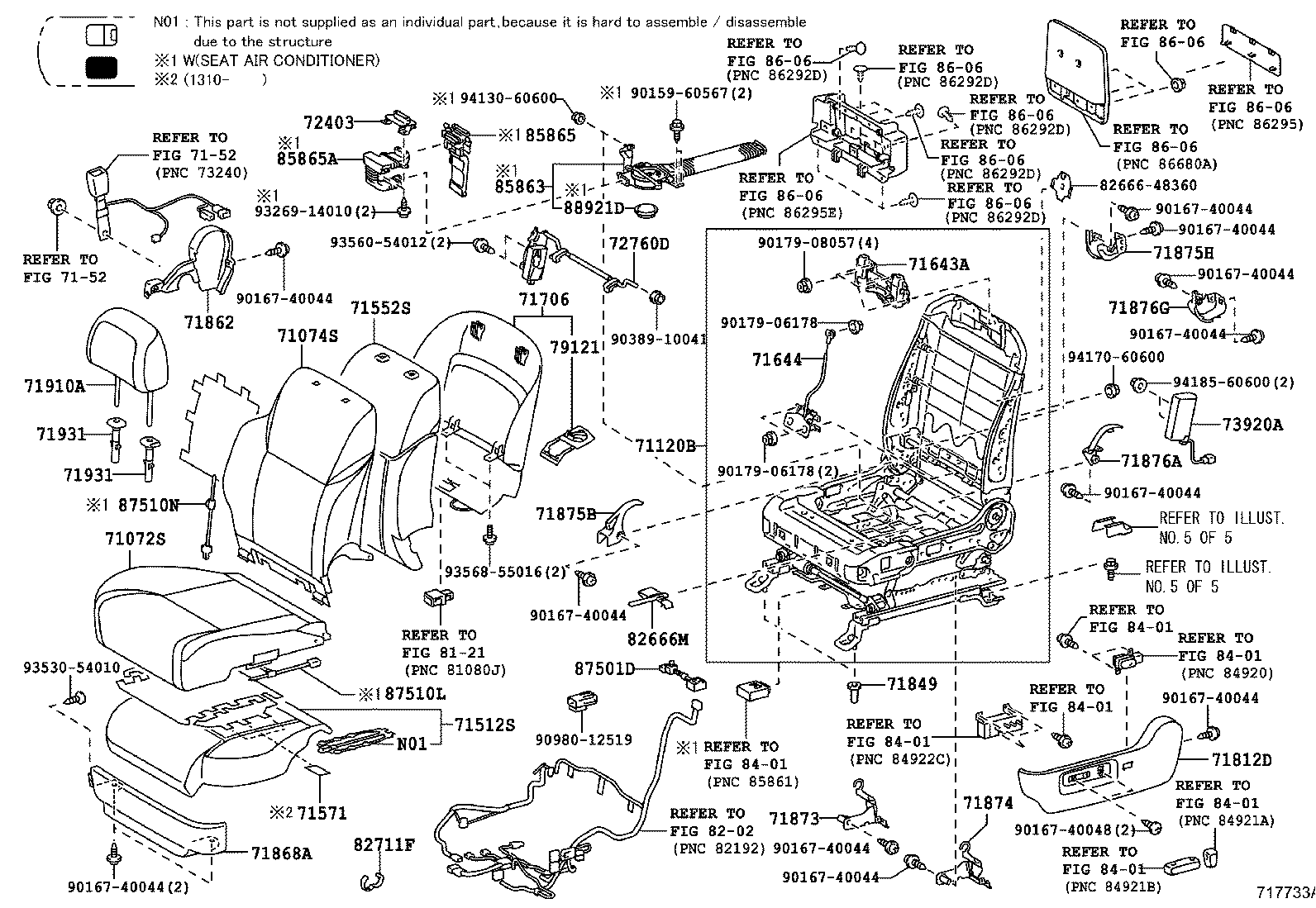

SEAT SEAT TRACK

PASSENGER ILLUST NO. 2 OF 5(1201- )ARL

 LX460 570 |  SEAT SEAT TRACK 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71571 - PAD, FRONT SEAT BACK SILENCER, A 71643A - UNIT, ACTIVE HEADREST, UPR 71644 - UNIT, ACTIVE HEADREST, LWR 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72403 - BRACKET SUB-ASSY, SEAT FRAME SET 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 73920A - AIR BAG ASSY, FRONT SEAT, LH 79121 - BRACKET, NO.1 SEAT CUSHION ** Refer Fig ** Refer Fig  ** Std Part 82666M - HOLDER, CONECTOR 82711F - CLAMP, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85863 - BLOWER, SEAT CLIMATE CONTROL, LH 85865 - CONTROLLER, SEAT CLIMATE CONTROL,LH 85865A - CONTROLLER, SEAT CLIMATE CONTROL, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87501D - CONTROL SUB-ASSY, SEAT HEATER 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH 87510N - HEATER ASSY, FRONT SEAT BACK, LH 88921D - FILTER, AIR, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
