LEXUS RX270 350 450H GGL15R-AWTGKW / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

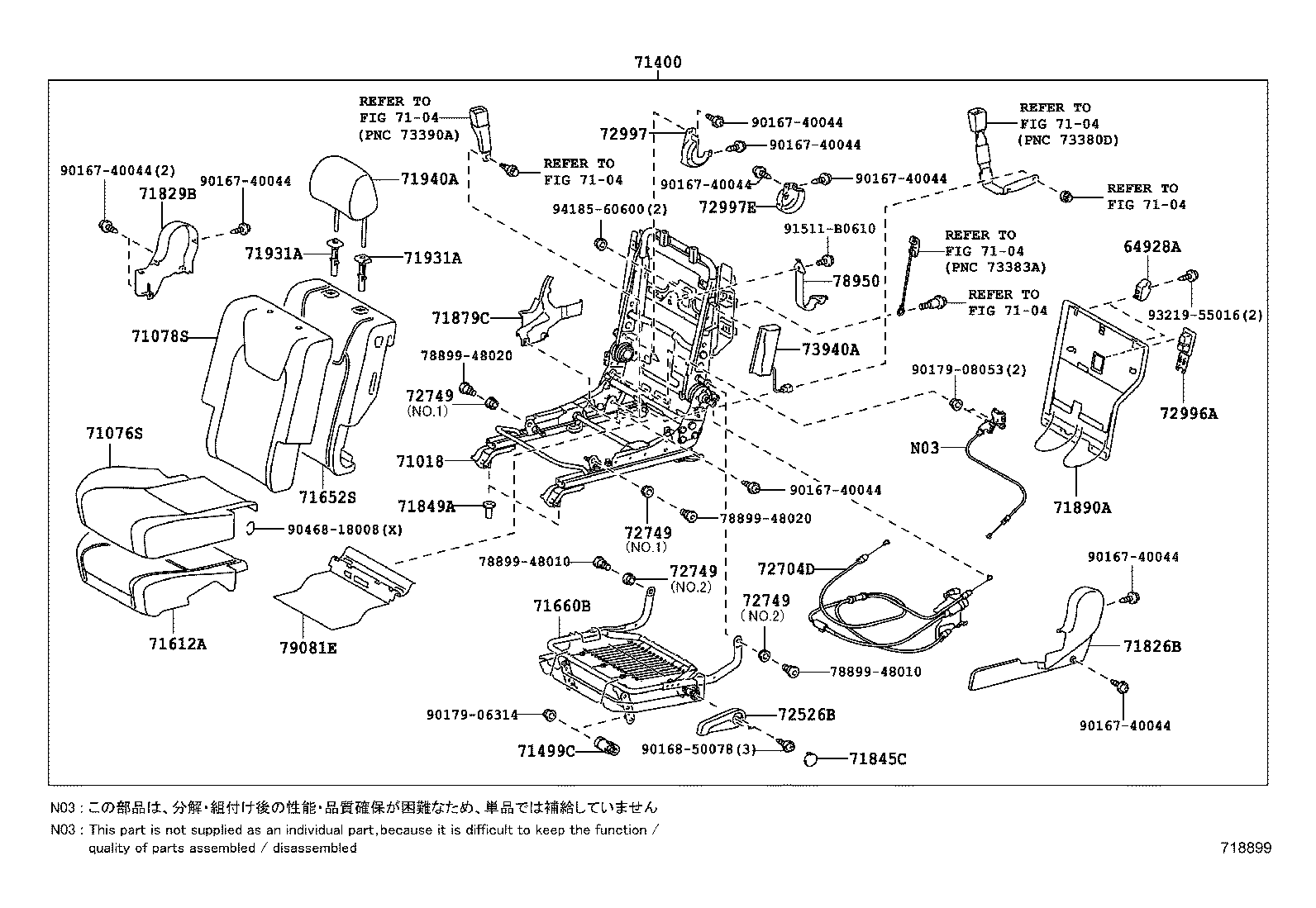

REAR SEAT SEAT TRACK

LH ILLUST NO. 4 OF 5(0812- )

 RX270 350 450H |  REAR SEAT SEAT TRACK 64928A - HOLDER, TONNEAU COVER HOOK 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71400 - SEAT ASSY, REAR LH 71499C - DAMPER, REAR SEAT CUSHION SPRING 71612A - PAD, REAR SEAT CUSHION, LH 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71660B - SPRING ASSY, REAR SEAT CUSHION, LH 71826B - MOULDING, REAR SEAT CUSHION, LH 71829B - MOULDING, REAR SEAT CUSHION, REAR LH 71845C - CAP, REAR SEAT COVER 71849A - CAP, SEAT ADJUSTER COVER, LH 71879C - COVER, REAR SEAT RECLINING, INNER LH 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72996A - COVER, REAR SEAT BACK 72997 - COVER, REAR SEAT BACK, LH 72997E - COVER, REAR SEAT SHIELD INNER, NO.2 73940A - AIR BAG ASSY, REAR SEAT, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 79081E - COVER, REAR SEAT, NO.3  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
