LEXUS RX270 350 450H GGL15R-AWTGKW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

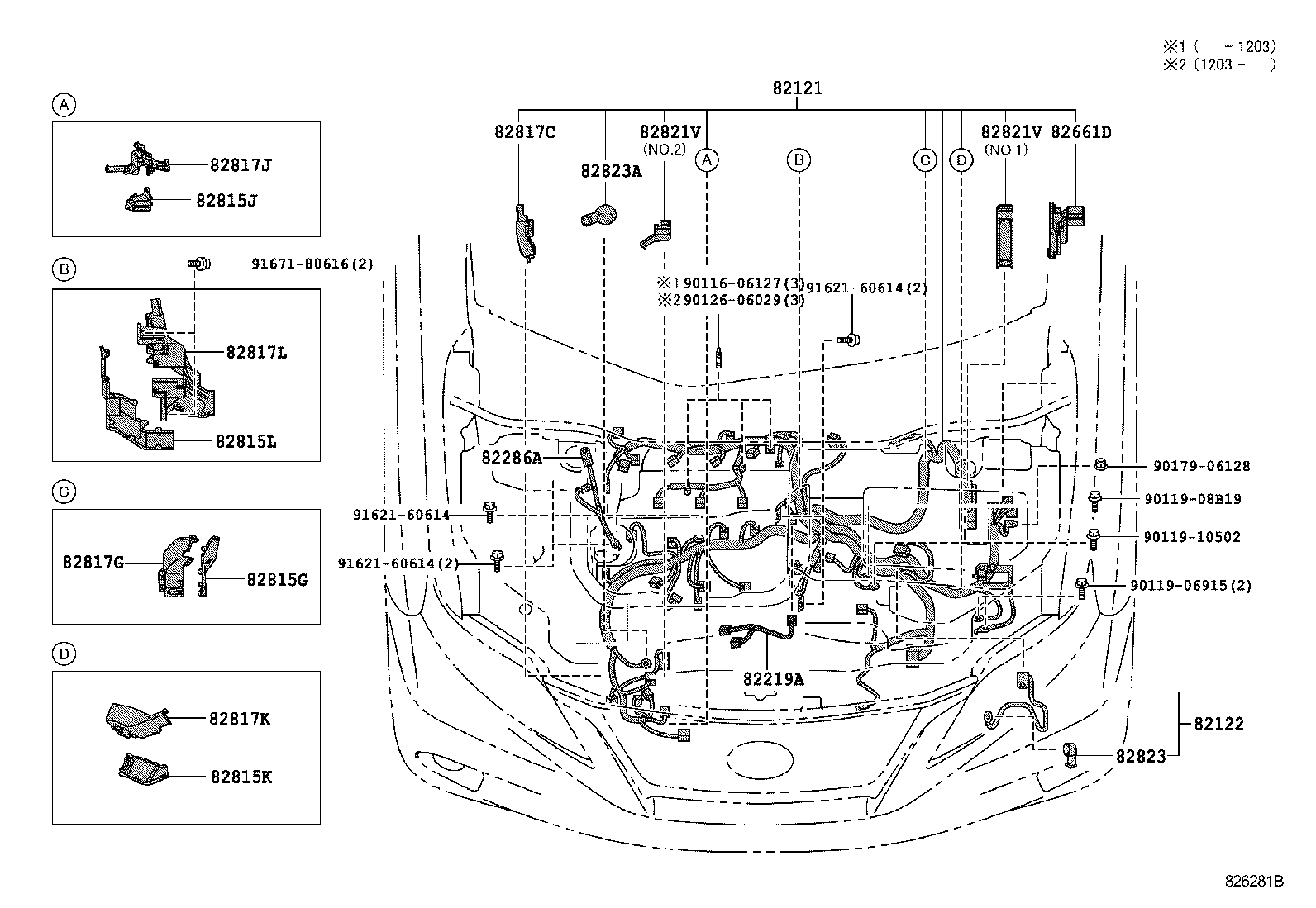

ENGINE ILLUST NO. 2 OF12(0812- )GGL15

RX270 350 450H | WIRING CLAMP 82121 - WIRE, ENGINE 82122 - WIRE, ENGINE, NO.2 82219A - WIRE, SENSOR 82286A - WIRE, EARTH, NO.2 82661D - COVER, RELAY BLOCK, SIDE NO.1 82815G - COVER, WIRING HARNESS PROTECTOR 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817J - PROTECTOR, WIRING HARNESS, NO.9 82817K - PROTECTOR, WIRING HARNESS, NO.10 82817L - PROTECTOR, WIRING HARNESS, NO.11 82821V - COVER, CONNECTOR 82821V - COVER, CONNECTOR 82823 - CAP, TERMINAL, NO.1 82823A - CAP, TERMINAL, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
