LEXUS GS GS HYBRID GWL10L-BEXQB / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

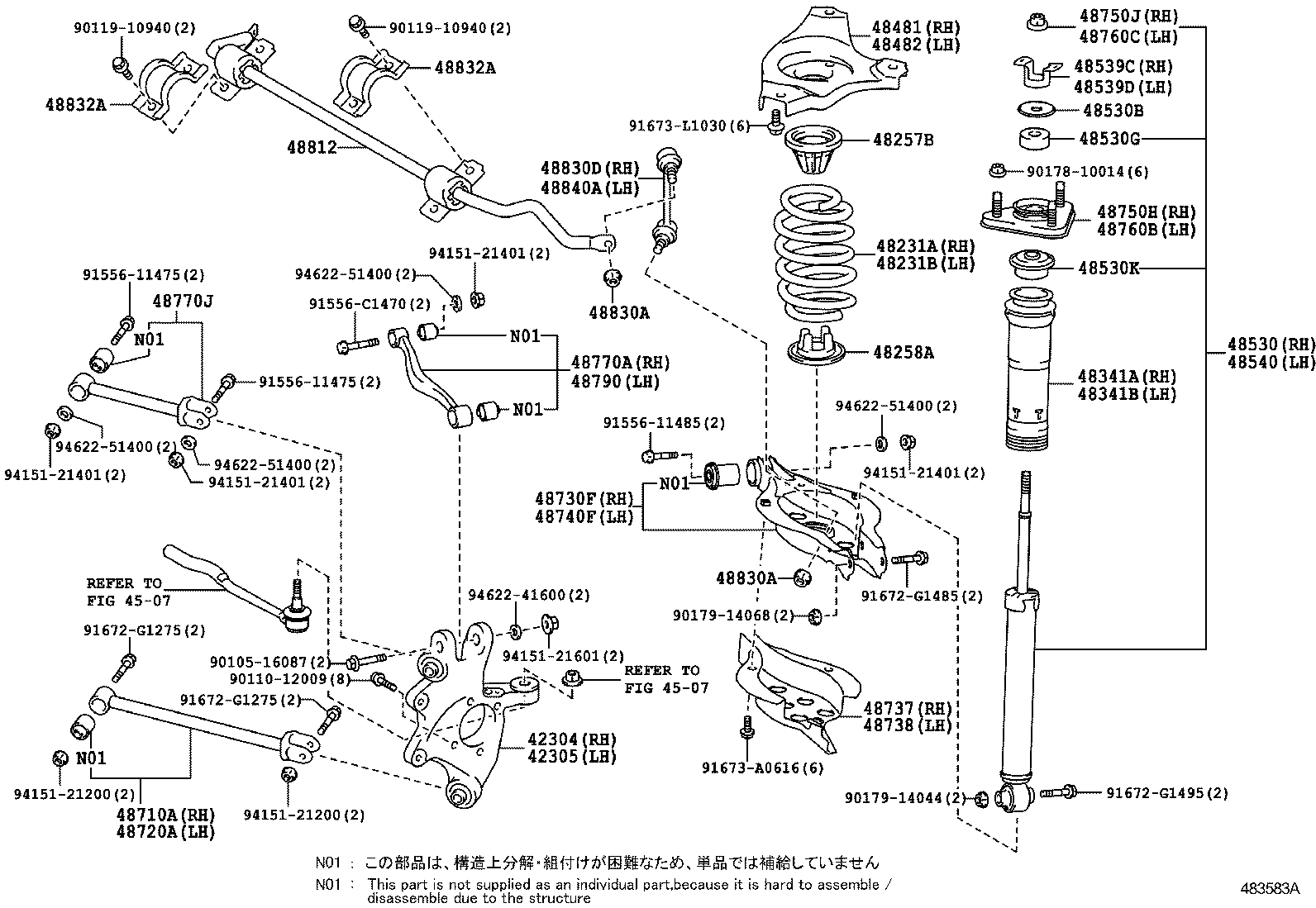

REAR SPRING SHOCK ABSORBER

W(LDH) (1201- )GRL10,GWL10

GS GS HYBRID | REAR SPRING SHOCK ABSORBER 42304 - CARRIER SUB-ASSY, REAR AXLE, RH 42305 - CARRIER SUB-ASSY, REAR AXLE, LH ** Refer Fig ** Refer Fig 48231A - SPRING, COIL, REAR RH 48231B - SPRING, COIL, REAR LH 48257B - INSULATOR, REAR COIL SPRING, UPPER 48258A - INSULATOR, REAR COIL SPRING, LOWER 48341A - BUMPER, REAR SPRING, NO.1 RH 48341B - BUMPER, REAR SPRING, NO.1 LH 48481 - SEAT, REAR SPRING, UPPER 48482 - SEAT, REAR SPRING, UPPER LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 48539C - BRACKET, ACTUATOR SUPPORT, REAR RH 48539D - BRACKET, ACTUATOR SUPPORT, REAR LH 48540 - ABSORBER ASSY, SHOCK, REAR LH 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH 48737 - COVER, REAR SUSPENSION ARM, RH 48738 - COVER, REAR SUSPENSION ARM, LH 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH 48750H - SUPPORT ASSY, REAR SUSPENSION, RH 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) 48760B - SUPPORT ASSY REAR SUSPENSION, LH 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) 48770A - ARM ASSY, UPPER CONTROL, REAR RH 48770J - ARM ASSY, UPPER CONTROL, REAR NO.1 48790 - ARM ASSY, UPPER CONTROL, REAR LH 48812 - BAR, STABILIZER, REAR 48830A - NUT(FOR REAR STABILIZER LINK) 48830A - NUT(FOR REAR STABILIZER LINK) 48830D - LINK ASSY, REAR STABILIZER, RH 48832A - BRACKET, REAR STABILIZER BAR, NO.1 48832A - BRACKET, REAR STABILIZER BAR, NO.1 48840A - LINK ASSY, REAR STABILIZER, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
