LEXUS GS460 430 350 GRS191-BETQH / BODY / SUSPENSION CROSSMEMBER UNDER COVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

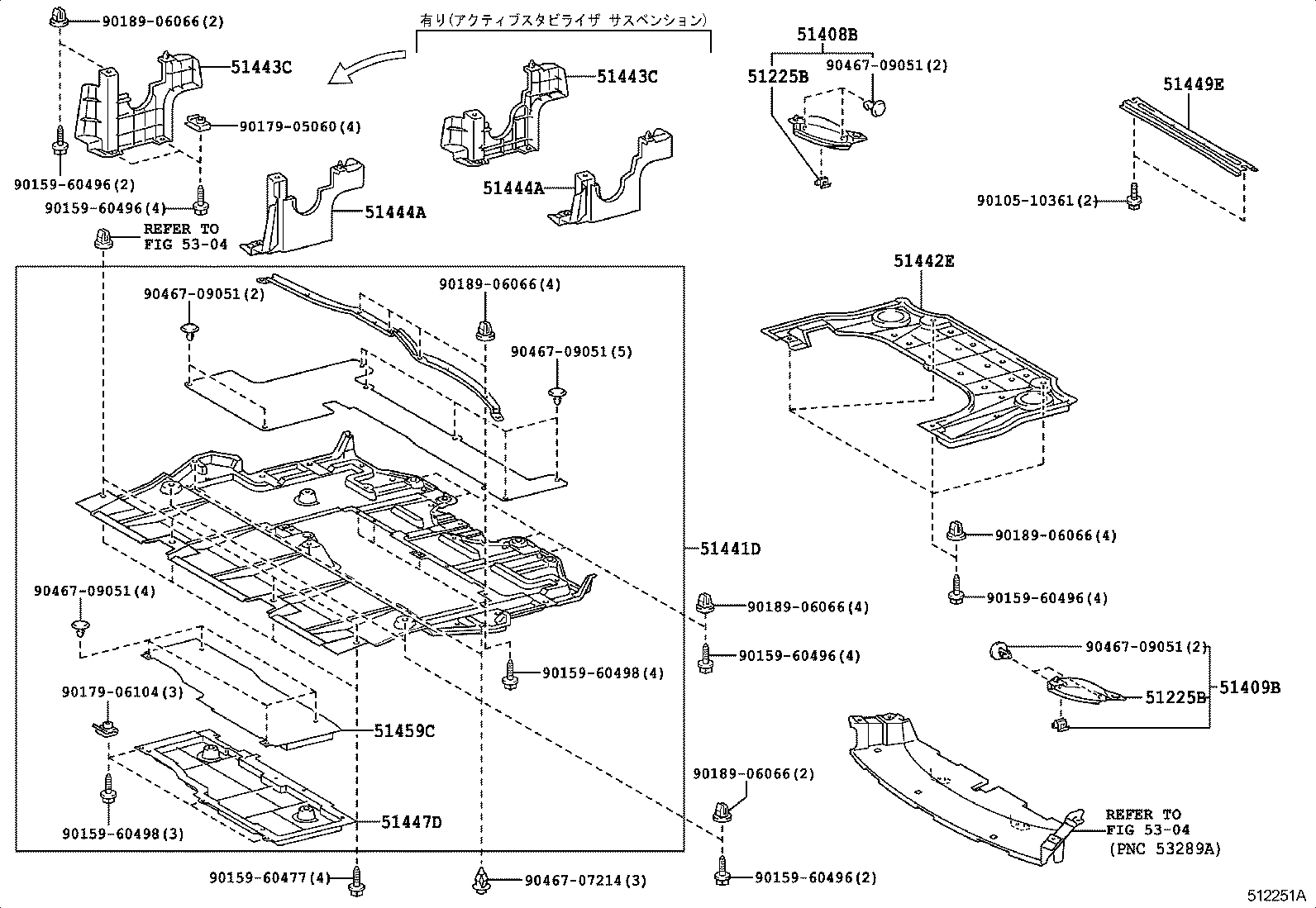

SUSPENSION CROSSMEMBER UNDER COVER

ｱﾝﾀﾞｶﾊﾞｰ ILLUST NO. 2 OF 2(1108- )GRS191

GS460 430 350 | SUSPENSION CROSSMEMBER UNDER COVER 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH 51408B - COVER SUB-ASSY, ENGINE UNDER, RH 51409B - COVER SUB-ASSY, ENGINE UNDER, LH 51441D - COVER, ENGINE UNDER 51442E - COVER, ENGINE UNDER, NO.2 51443C - COVER, ENGINE UNDER, REAR RH 51443C - COVER, ENGINE UNDER, REAR RH 51444A - COVER, ENGINE UNDER, REAR LH 51444A - COVER, ENGINE UNDER, REAR LH 51447D - COVER, ENGINE UNDER, NO.4 CENTER 51449E - BRACKET, ENGINE UNDER COVER AIR GUIDE 51459C - SILENCER, ENGINE UNDER COVER, REAR LH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
