LEXUS GS300 JZS147L-BEPQFA / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

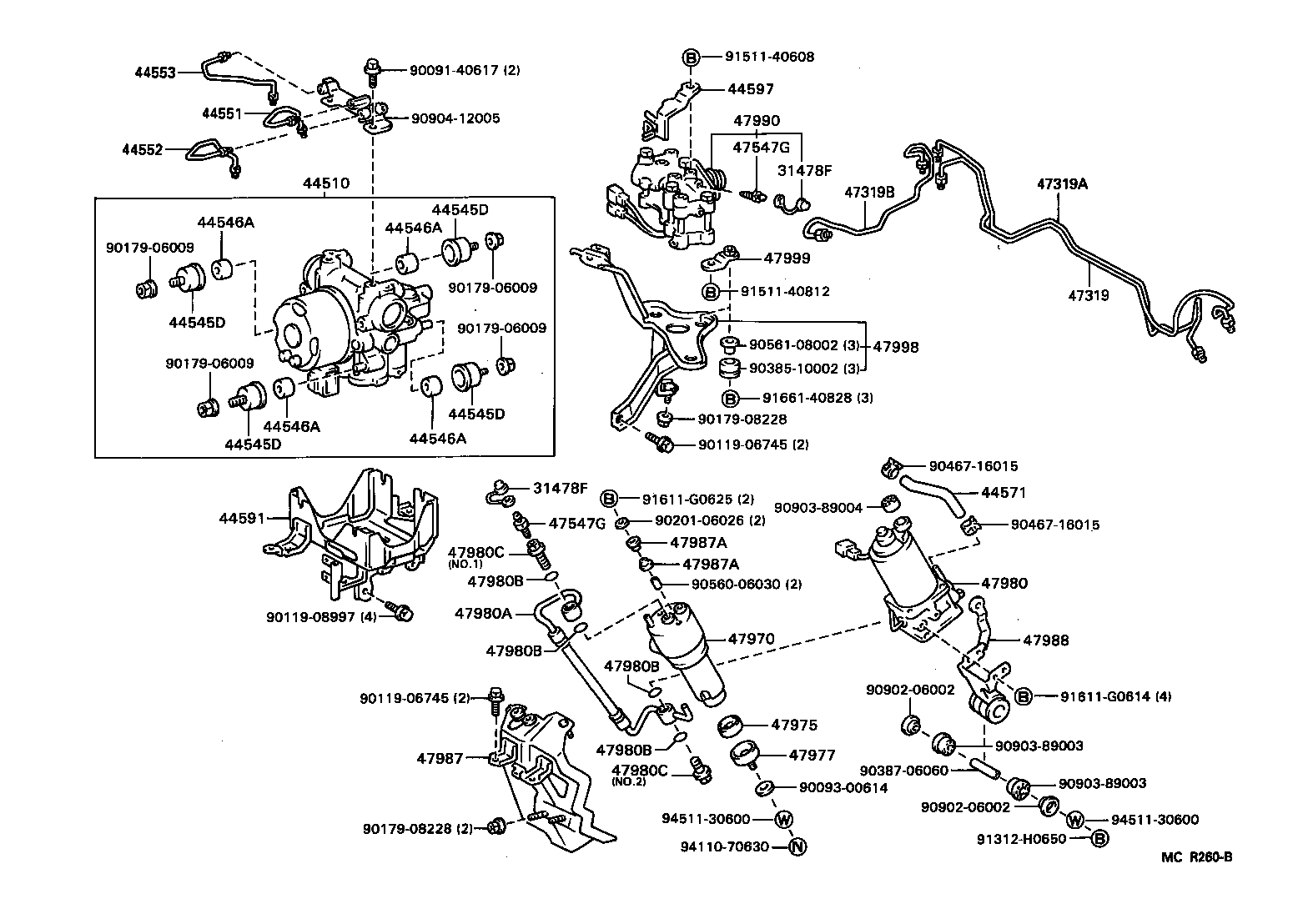

BRAKE TUBE CLAMP

W(TRACTION CONTROL) ILLUST NO. 2 OF 2(9301- )

 GS300 |  BRAKE TUBE CLAMP 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) 44510 - ACTUATOR ASSY, BRAKE 44545D - HOLDER, BRAKE ACTUATOR BOLT 44545D - HOLDER, BRAKE ACTUATOR BOLT 44545D - HOLDER, BRAKE ACTUATOR BOLT 44545D - HOLDER, BRAKE ACTUATOR BOLT 44546A - CUSHION, BRAKE ACTUATOR BOLT 44546A - CUSHION, BRAKE ACTUATOR BOLT 44546A - CUSHION, BRAKE ACTUATOR BOLT 44546A - CUSHION, BRAKE ACTUATOR BOLT 44551 - TUBE, BRAKE ACTUATOR, NO.1 44552 - TUBE, BRAKE ACTUATOR, NO.2 44553 - TUBE, BRAKE ACTUATOR, NO.3 44571 - HOSE, BRAKE ACTUATOR 44591 - BRACKET, BRAKE ACTUATOR, NO.1 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 47319 - TUBE, FRONT BRAKE, NO.9 47319A - TUBE, FRONT BRAKE, NO.10 47319B - TUBE, FRONT BRAKE, NO.11 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) 47970 - ACCUMULATOR ASSY, BRAKE TRACTION 47975 - BUSH, BRAKE TRACTION ACCUMULATOR 47977 - BRACKET, BRAKE TRACTION ACCUMULATOR, NO.1 47980 - PUMP ASSY, BRAKE TRACTION 47980A - HOSE, PRESSURE(FOR BRAKE TRACTION PUMP) 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47987 - BRACKET, BRAKE TRACTION PUMP, NO.1 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) 47988 - BRACKET, BRAKE TRACTION PUMP, NO.2 47990 - ACTUATOR ASSY, BRAKE TRACTION 47998 - BRACKET, BRAKE TRACTION ACTUATOR, NO.1 47999 - BRACKET, BRAKE TRACTION ACTUATOR, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
