LEXUS SC300 400 JZZ31L-ACMVFA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

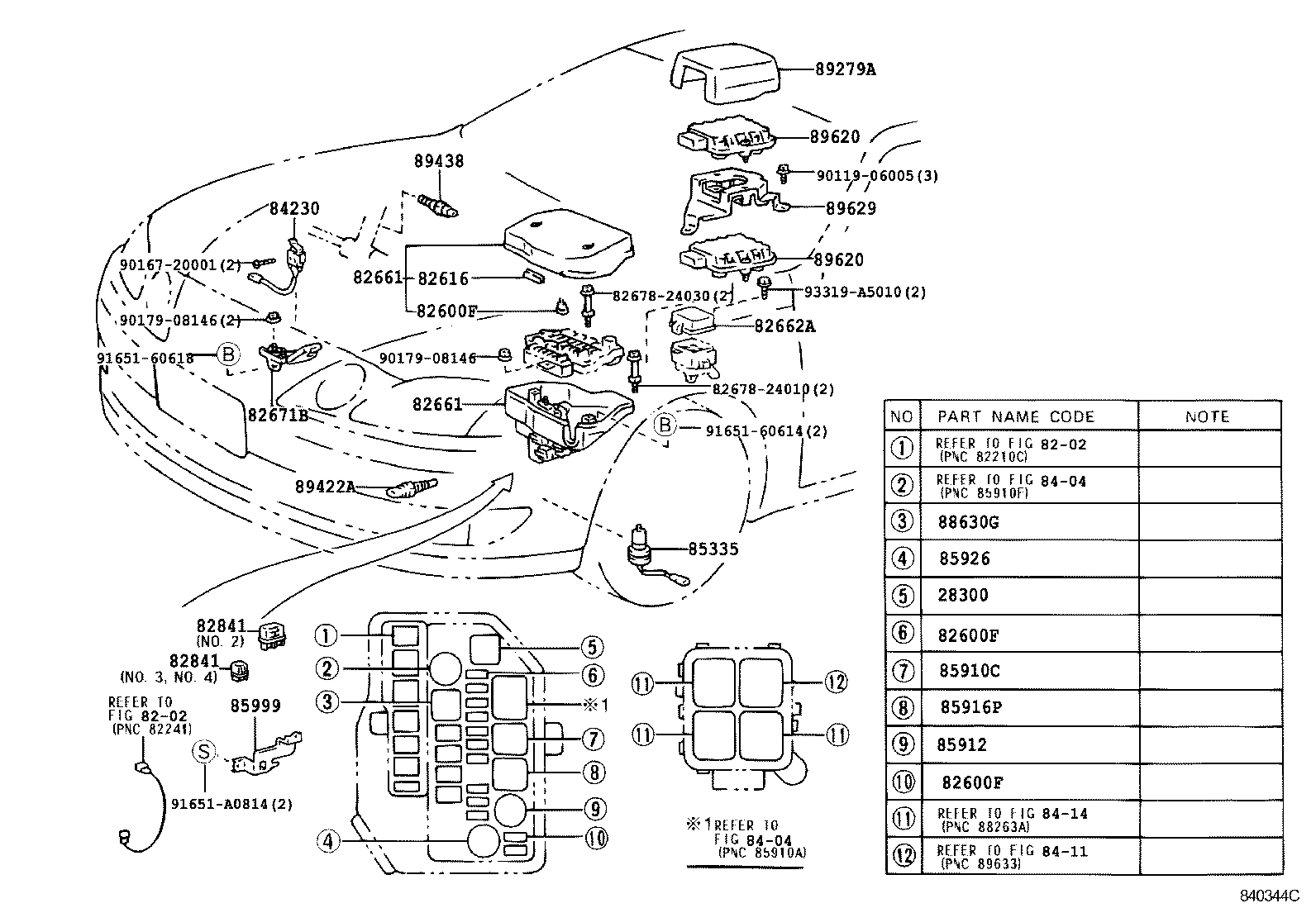

ENGINE ROOM ILLUST NO. 2 OF 8(9104- )

SC300 400 | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82671B - BLOCK, JUNCTION ** Std Part ** Std Part 82841 - RELAY, RUNNING LIGHT VOLTAGE CONTROL 82841 - RELAY, RUNNING LIGHT VOLTAGE CONTROL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) 85335 - SWITCH ASSY, WASHER LEVEL WARNING 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 - RELAY, DEFOGGER 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85999 - BRACKET, COMBINATION RELAY 88630G - RELAY ASSY, COOLER 89279A - COVER, COMPUTER 89422A - SENSOR, WATER TEMPERATURE 89438 - SWITCH, POWER STEERING OIL PRESSURE 89620 - IGNITER ASSY 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
