LEXUS SC300 400 JZZ31L-ACMVFA / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

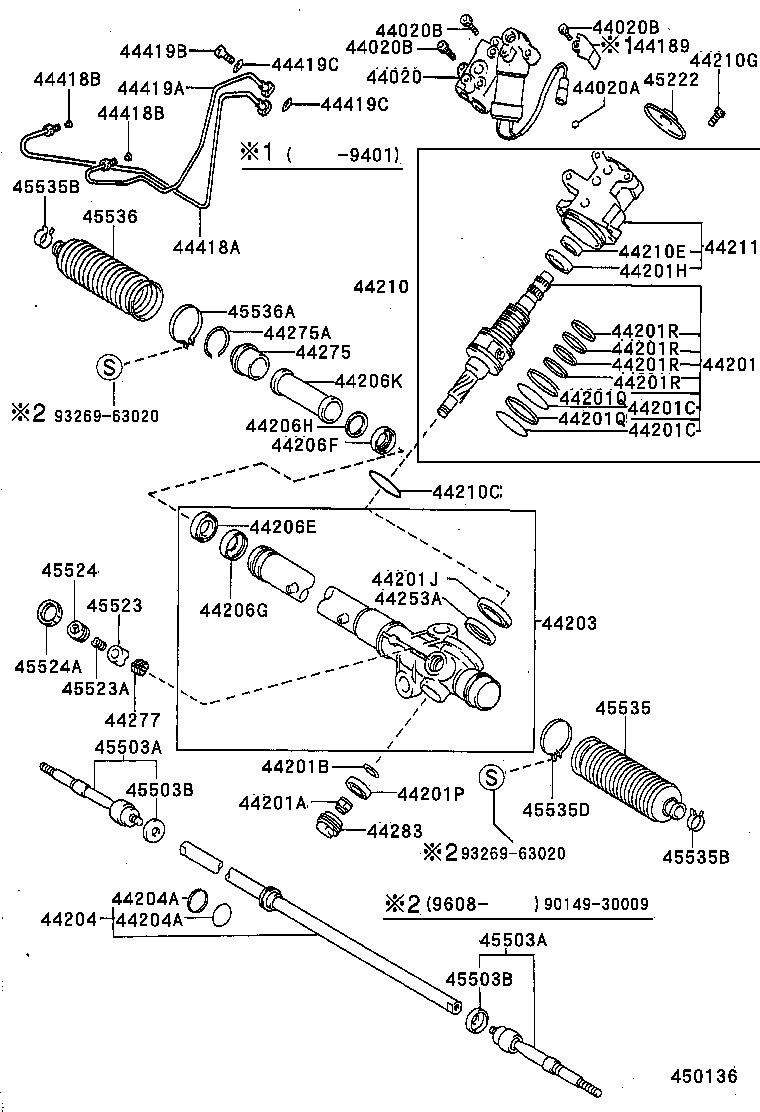

FRONT STEERING GEAR LINK

ILLUST NO. 2 OF 2(9104- )

SC300 400 | FRONT STEERING GEAR LINK 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) 44189 - CLAMP, SOLENOID VALVE TERMINAL 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) 44201R - RING(FOR POWER STEERING CONTROL VALVE) 44201R - RING(FOR POWER STEERING CONTROL VALVE) 44201R - RING(FOR POWER STEERING CONTROL VALVE) 44201R - RING(FOR POWER STEERING CONTROL VALVE) 44203 - HOUSING SUB-ASSY, POWER STEERING RACK 44204 - RACK SUB-ASSY, POWER STEERING 44204A - RING(FOR RACK STEERING PISTON) 44204A - RING(FOR RACK STEERING PISTON) 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) 44206K - SPACER, NO.3(FOR POWER STEERING CYLINDER TUBE) 44210 - VALVE ASSY, POWER STEERING CONTROL 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) 44211 - HOUSING, CONTROL VALVE 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) 44275 - STOPPER, CYLINDER END 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) 44277 - SEAT, RACK GUIDE 44283 - CAP, RACK HOUSING 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) 44419A - TUBE, STEERING LEFT TURN PRESSURE 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) 45222 - COVER, STEERING GEAR DUST 45503A - END SUB-ASSY, STEERING RACK, NO.1 45503A - END SUB-ASSY, STEERING RACK, NO.1 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45523 - GUIDE, RACK(FOR STEERING GEAR) 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) 45524 - CAP, STEERING RACK GUIDE SPRING 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) 45535 - BOOT, STEERING RACK, NO.1 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) 45536 - BOOT, STEERING RACK, NO.2 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) ** Std Part ** Std Part ** Std Part
