LEXUS LX450 FZJ80L-GNPGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

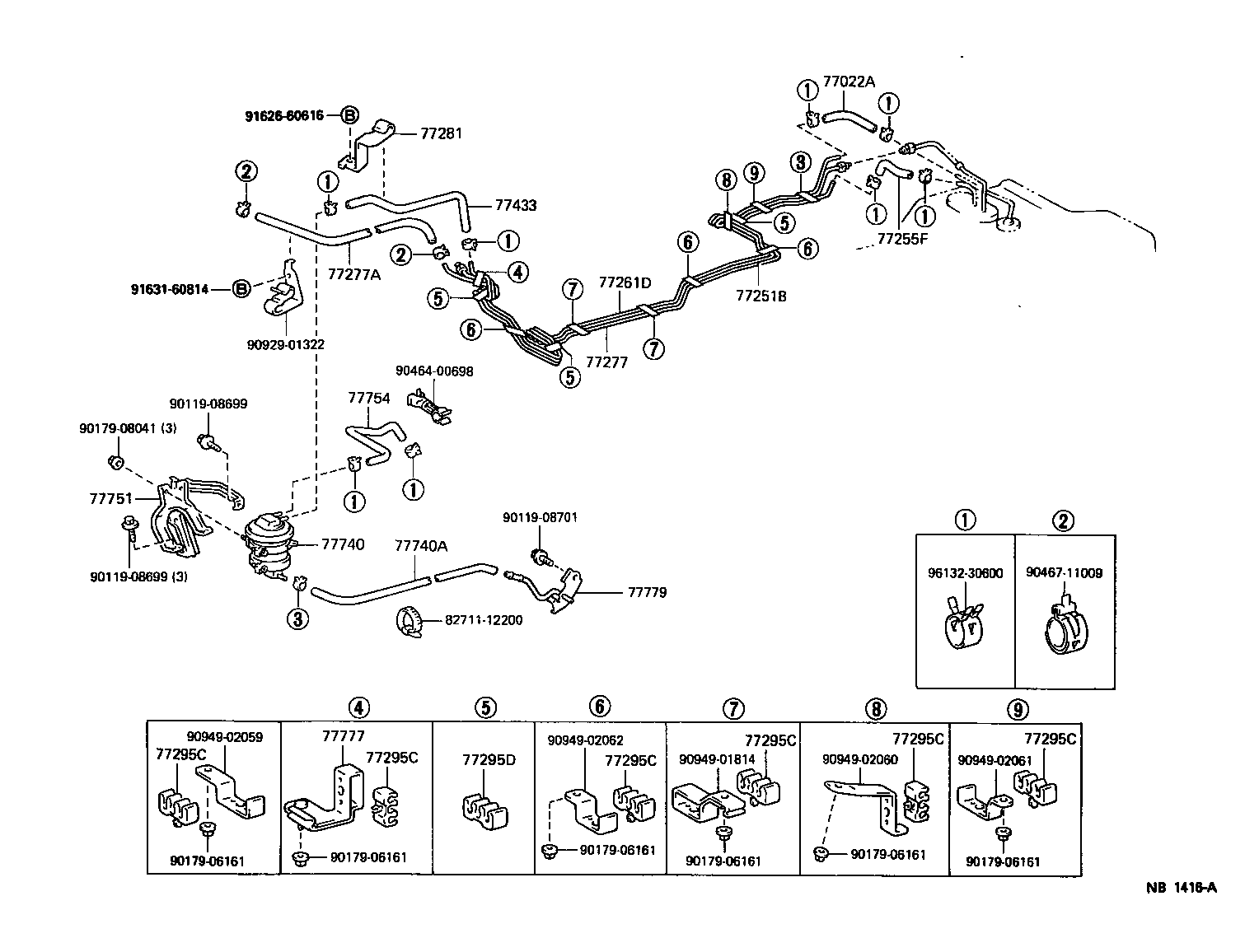

ILLUST NO. 2 OF 2(9511- )

LX450 | FUEL TANK TUBE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77251B - TUBE, FUEL MAIN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77277 - TUBE, FUEL RETURN, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77281 - BRACKET, FUEL MAIN TUBE, NO.1 77295C - GROMMET, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77295D - GROMMET, FUEL TUBE 77433 - HOSE, FUEL MAIN, NO.1 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77777 - BRACKET, FUEL TUBE CLAMP 77779 - TUBE, CHARCOAL CANISTER OUTLET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
