FUEL INJECTION SYSTEM

ILLUST NO. 1 OF 2(9508-9709)1UZFE

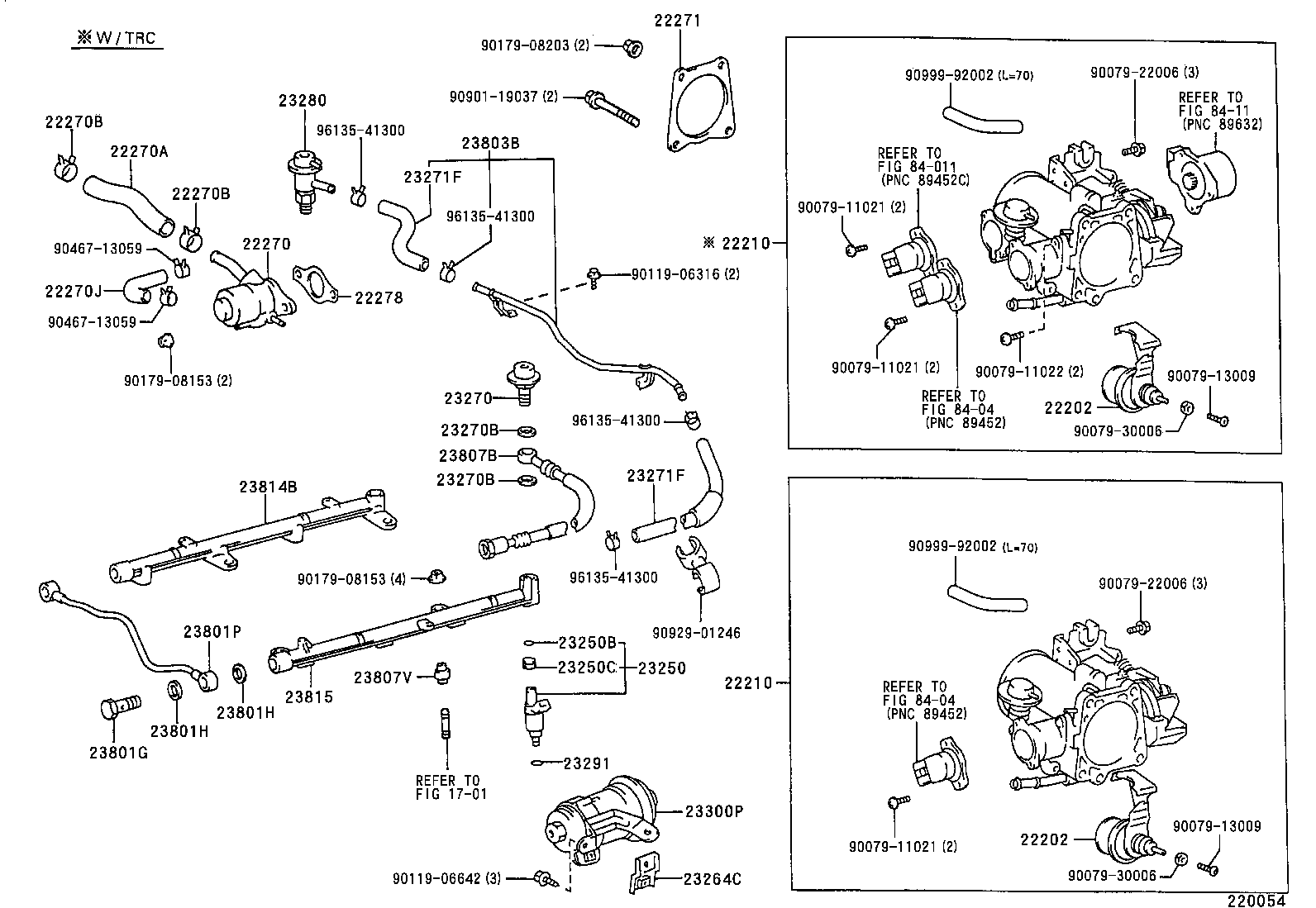

SC300 400 | FUEL INJECTION SYSTEM ** Refer Fig 22202 - DASH POT SUB-ASSY 22202 - DASH POT SUB-ASSY 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) 22270B - CLIP(FOR AIR HOSE) 22270B - CLIP(FOR AIR HOSE) 22270J - HOSE, WATER, NO.3(FOR IDEL SPEED CONTROL VALVE) 22271 - GASKET, THROTTLE BODY 22278 - GASKET, IDLE SPEED CONTROL VALVE 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23264C - BRACKET, FUEL FILTER 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23271F - HOSE, FUEL 23271F - HOSE, FUEL 23280 - REGULATOR ASSY, FUEL PRESSURE 23291 - INSULATOR, INJECTOR VIBRATION 23300P - FILTER, FUEL(FOR EFI) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23803B - PIPE SUB-ASSY, FUEL, NO.3 23807B - HOSE, FUEL DELIVERY PIPE 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23814B - PIPE, FUEL DELIVERY 23815 - PIPE, FUEL DELIVERY, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
