LEXUS SC300 400 JZZ31L-ACPVFA / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VACUUM PIPING

(9709-9808)2JZGE

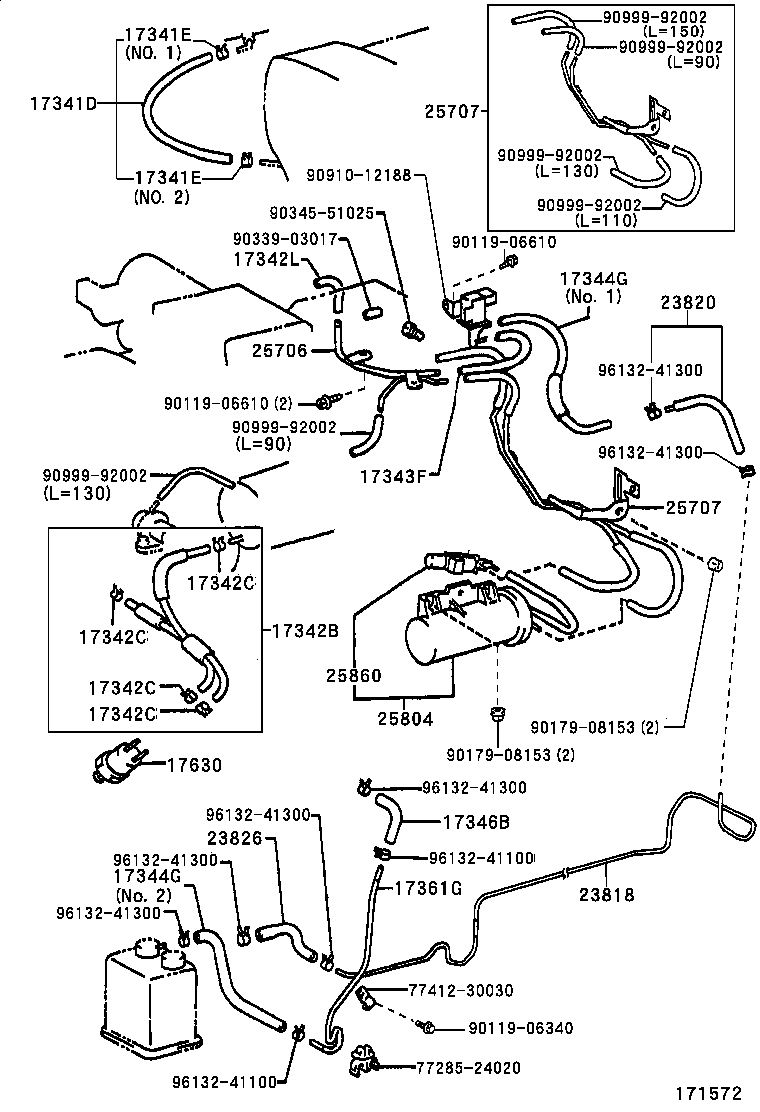

SC300 400 | VACUUM PIPING 17341D - HOSE, NO.1(FOR IDLE-UP) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17342B - HOSE, NO.2(FOR IDLE-UP) 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) 17342L - HOSE, AIR, NO.2 17343F - HOSE, AIR, NO.3 17344G - HOSE, AIR, NO.4 17344G - HOSE, AIR, NO.4 17346B - HOSE, AIR, NO.6 17361G - TUBE, AIR(FOR IDLE-UP) 17630 - VALVE ASSY, AIR CONTROL 23818 - PIPE, FUEL VAPOR FEED 23820 - HOSE ASSY, FUEL VAPOR FEED 23826 - HOSE, FUEL VAPOR FEED, NO.1 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 25804 - VALVE SET, VACUUM CONTROL 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
