LEXUS RX330 350 NAP MCU38L-CWAGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

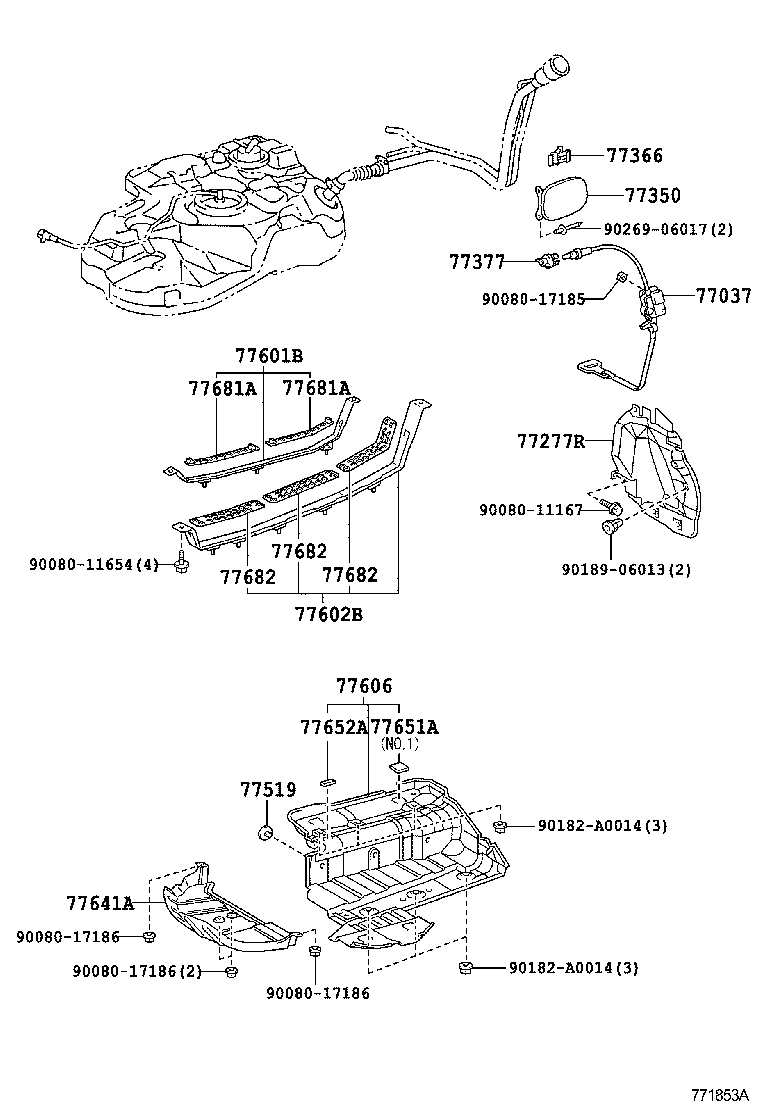

FUEL TANK ILLUST NO. 2 OF 3(0309- )NAP

 RX330 350 NAP |  FUEL TANK TUBE 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77519 - SPACER, FUEL TANK BRACKET 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77681A - SEAT, FUEL TANK BAND 77681A - SEAT, FUEL TANK BAND 77682 - SEAT, FUEL TANK BAND, LH 77682 - SEAT, FUEL TANK BAND, LH 77682 - SEAT, FUEL TANK BAND, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
