LEXUS GX470 UZJ120L-GKAZKA / BODY / BACK DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

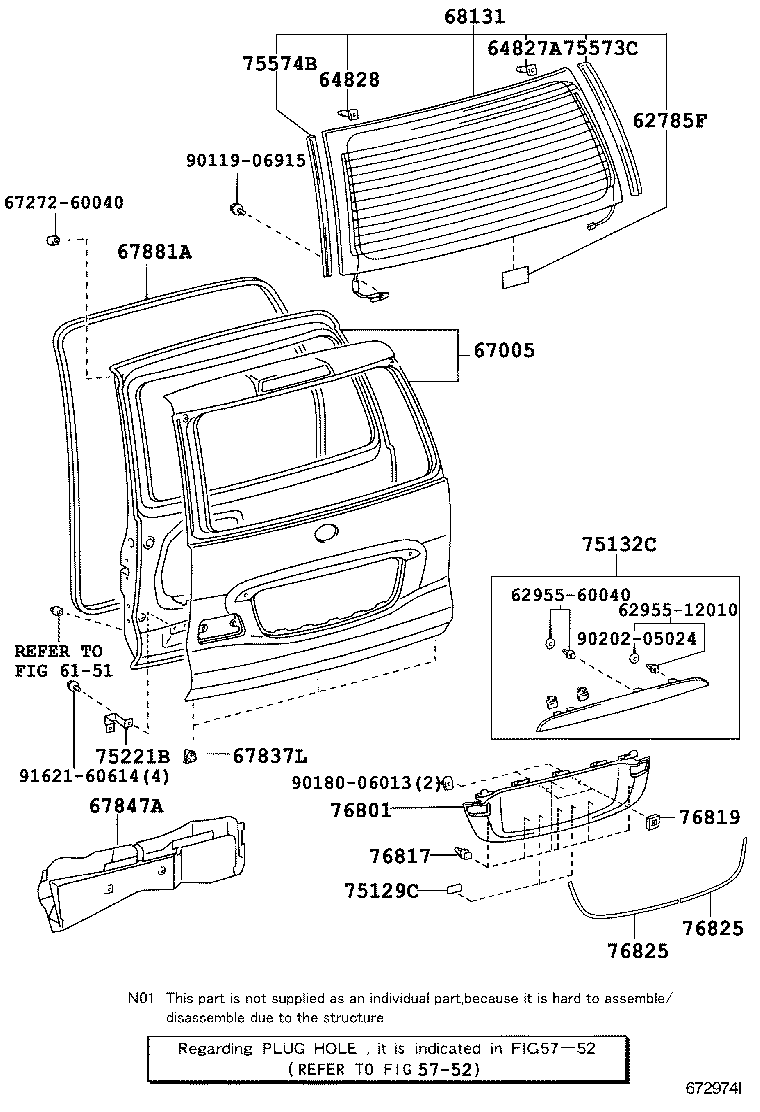

BACK DOOR PANEL GLASS

ILLUST NO. 2 OF 2(0211- )

GX470 | BACK DOOR PANEL GLASS ** Refer Fig ** Refer Fig 62785F - SPACER, BACK DOOR GLASS ** Std Part ** Std Part 64827A - CLIP, BACK WINDOW GLASS, RH 64828 - CLIP, BACK WINDOW GLASS, LH 67005 - PANEL SUB-ASSY, BACK DOOR ** Std Part 67837L - SEAL, DOOR DUST PROOF 67847A - COVER, BACK DOOR SERVICE HOLE 67881A - WEATHERSTRIP, BACK DOOR 68131 - GLASS, BACK DOOR 75129C - CUSHION, REAR LICENCE PLATE 75132C - COVER, LICENSE REAR LAMP 75221B - BRACKET, TOOL BOX 75573C - MOULDING, BACK WINDOW, OUTSIDE 75574B - MOULDING, BACK WINDOW, OUTSIDE LH 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE 76817 - CLIP, BACK DOOR OUTSIDE GARNISH 76819 - SEAL, BACK DOOR OUTSIDE GARNISH 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH ** Std Part ** Std Part ** Std Part ** Std Part
