LEXUS RX330 350 JPP MCU33L-AWAGKA / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

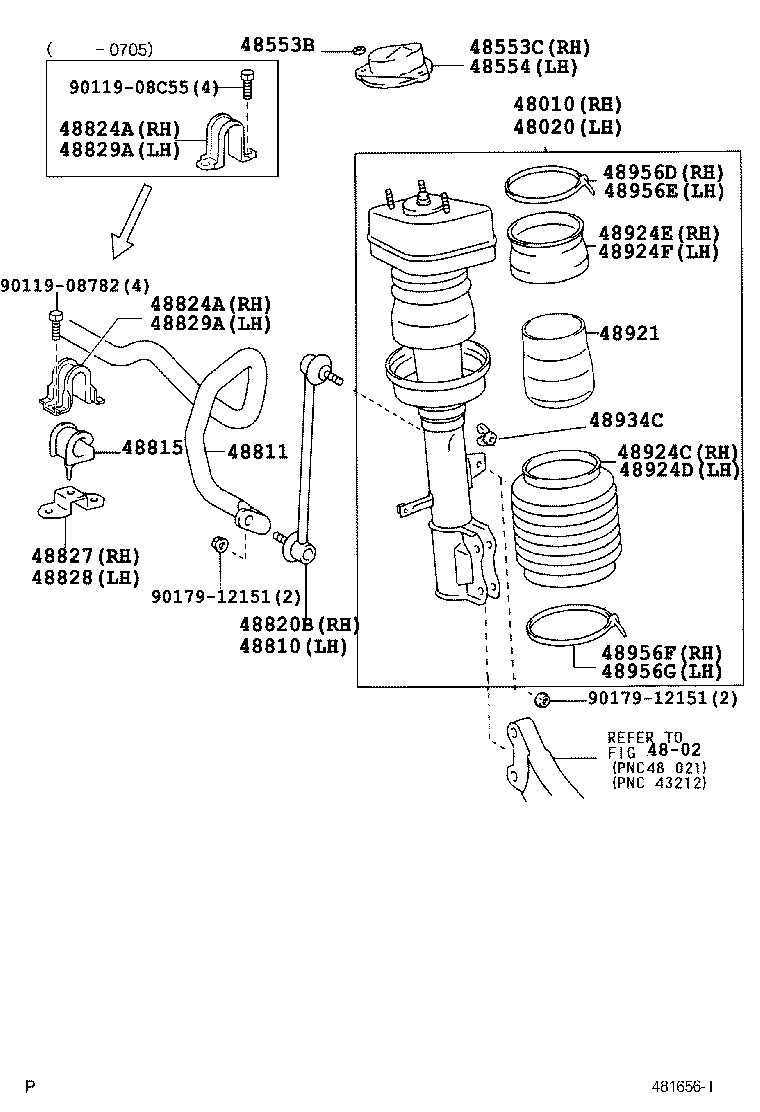

FRONT SPRING SHOCK ABSORBER

W(AIR SUSPENSION) (0302- )JPP

RX330 350 JPP | FRONT SPRING SHOCK ABSORBER 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER ** Refer Fig 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER 48553B - NUT(FOR FRONT SHOCK ABSORBER CAP) 48553C - CAP, FRONT SHOCK ABSORBER, RH 48554 - CAP, FRONT SHOCK ABSORBER, LH 48810 - LINK ASSY, FRONT STABILIZER, LH 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820B - LINK ASSY, FRONT STABILIZER, RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48827 - BRACKET, FRONT STABILIZER, NO.2 RH 48828 - BRACKET, FRONT STABILIZER, NO.2 LH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH 48921 - DIAPHRAGM, PNEUMATIC CYLINDER ROLLING 48924C - COVER, FRONT PNEUMATIC CYLINDER, OUTER RH 48924D - COVER, FRONT PNEUMATIC CYLINDER, OUTER LH 48924E - COVER, FRONT PNEUMATIC CYLINDER, INNER RH 48924F - COVER, FRONT PNEUMATIC CYLINDER, INNER LH 48934C - CONNECTOR, HEIGHT CONTROL TUBE 48956D - BAND, FRONT PNEUMATIC CYLINDER COVER, UPR RH 48956E - BAND, FRONT PNEUMATIC CYLINDER COVER, UPR LH 48956F - BAND, FRONT PNEUMATIC CYLINDER COVER, LWR RH 48956G - BAND, FRONT PNEUMATIC CYLINDER COVER, LWR LH ** Std Part ** Std Part ** Std Part ** Std Part
