LEXUS IS250C 350C GSE20L-AKTLHA / ELECTRICAL / HEADLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEADLAMP

KOREA SPEC (0904-1008)GSE20..6FC

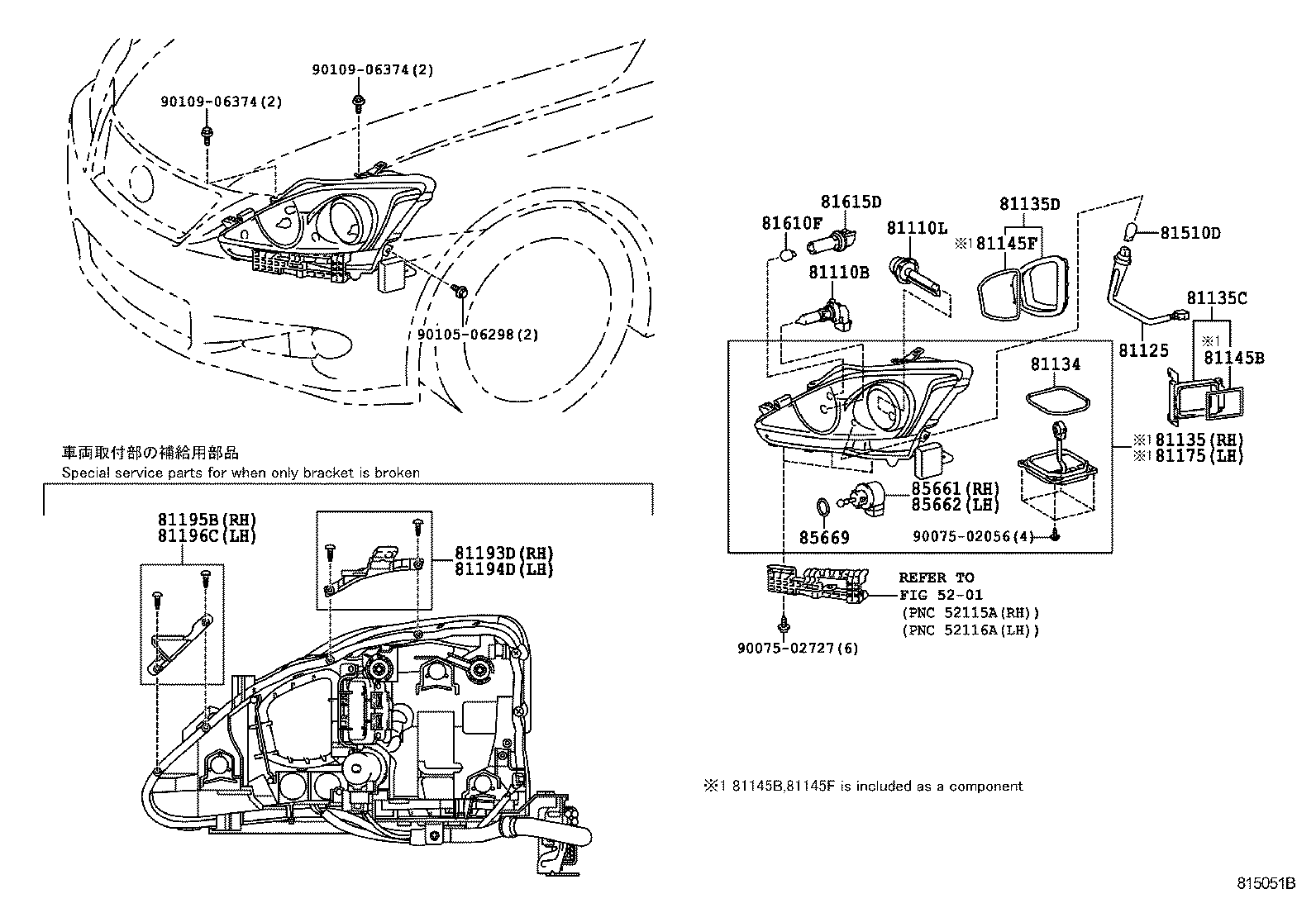

IS250C 350C | HEADLAMP ** Refer Fig 81110B - BULB(FOR HEADLAMP, NO.1) 81110L - BULB, DISCHARGE HEADLAMP 81125 - CORD, HEADLAMP 81134 - GASKET, HEADLAMP 81135 - UNIT ASSY, HEADLAMP, RH 81135C - COVER, HEADLAMP BACK, NO.1 81135D - COVER, HEADLAMP BACK, NO.2 81145B - GASKET, HEADLAMP COVER, NO.1 81145F - GASKET, HEADLAMP COVER, NO.2 81175 - UNIT ASSY, HEADLAMP, LH 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPR LH 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPR LH 81195B - RETAINER, RH HEADLAMP PROTECTOR, LWR RH 81196C - RETAINER, LH HEADLAMP PROTECTOR, LWR LH 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) 81610F - BULB(FOR CLEARANCE LAMP) 81615D - SOCKET, CLEARANCE LAMP 85661 - MOTOR, HEADLAMP LEVELING, RH 85662 - MOTOR, HEADLAMP LEVELING, LH 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
