LEXUS GS450H GWS191L-BEXQHA / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BATTERY BATTERY CABLE

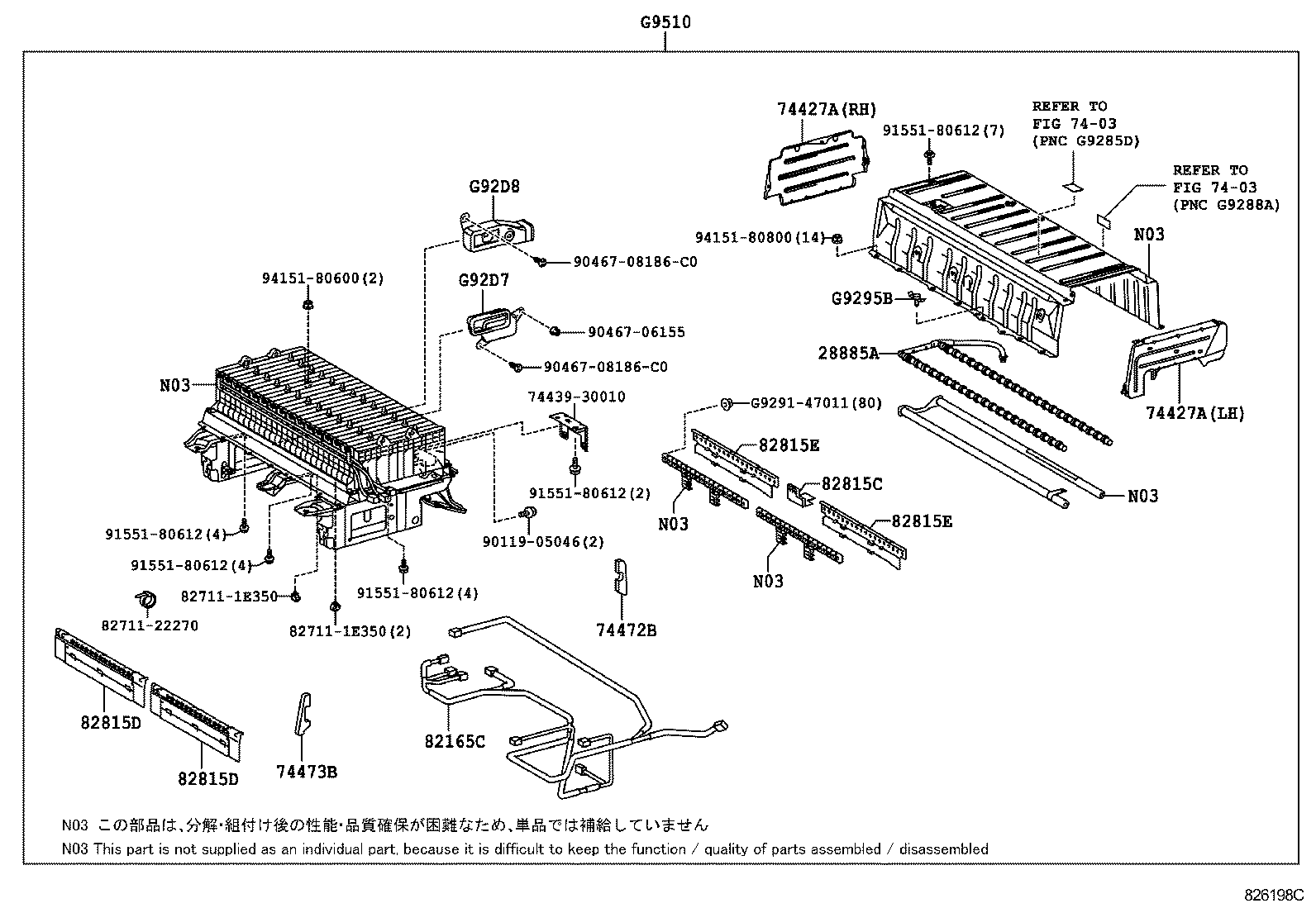

HV BATTERY ILLUST NO. 4 OF 4(0809- )

GS450H | BATTERY BATTERY CABLE 28885A - HOSE, BATTERY ROOM VENTILATION ** Refer Fig ** Refer Fig 74427A - BRACKET, BATTERY CARRIER CATCH, NO.1 74427A - BRACKET, BATTERY CARRIER CATCH, NO.1 ** Std Part 74472B - PAD, BATTERY CARRIER 74473B - CUSHION, BATTERY CARRIER, NO.3 82165C - WIRE, FRAME, NO.2 ** Std Part ** Std Part ** Std Part 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9295B - STRIKER, BATTERY COVER LOCK G92D7 - DUCT, HYBRID BATTERY INTAKE, NO.7 G92D8 - DUCT, HYBRID BATTERY INTAKE, NO.8 G9510 - BATTERY ASSY, HV SUPPLY
