LEXUS HS250H ANF10L-AEXVBA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

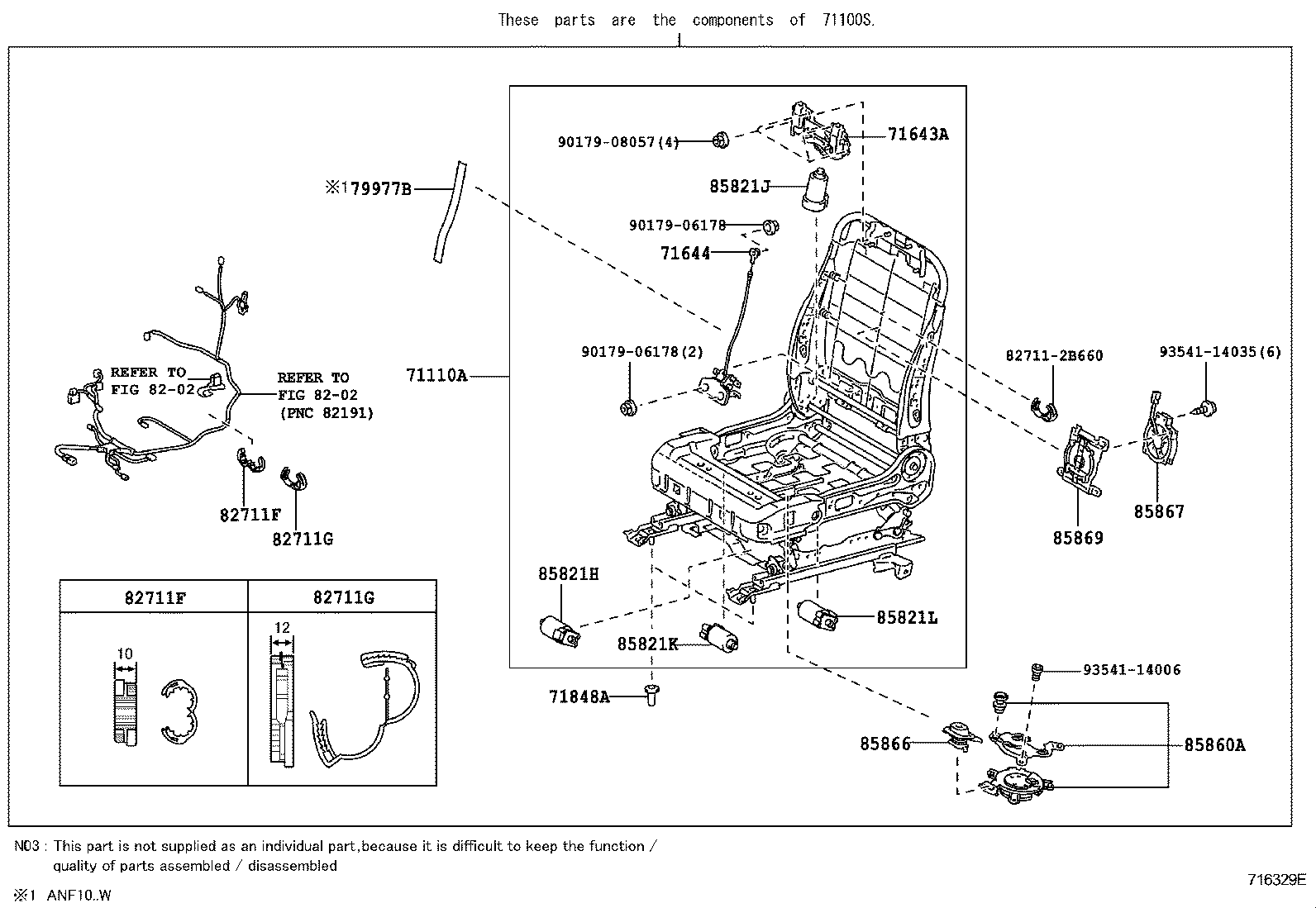

FRONT SEAT SEAT TRACK

PASSENGER SEAT ILLUST NO. 2 OF 2(0907- )

HS250H | FRONT SEAT SEAT TRACK 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH 71643A - UNIT, ACTIVE HEADREST, UPR 71644 - UNIT, ACTIVE HEADREST, LWR 71848A - CAP, SEAT ADJUSTER COVER, RH 79977B - FELT, SEAT BACK FRAME ** Refer Fig ** Refer Fig ** Std Part 82711F - CLAMP, WIRING HARNESS 82711F - CLAMP, WIRING HARNESS 82711G - CLAMP, WIRING HARNESS 82711G - CLAMP, WIRING HARNESS 85821H - MOTOR ASSY, POWER SEAT SLIDE, RH 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH 85821K - MOTOR ASSY, POWER SEAT TILT, RH 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH 85869 - COVER, SEAT BACK CLIMATE CONTROL, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
