LEXUS HS250H ANF10L-AEXVBA / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BATTERY BATTERY CABLE

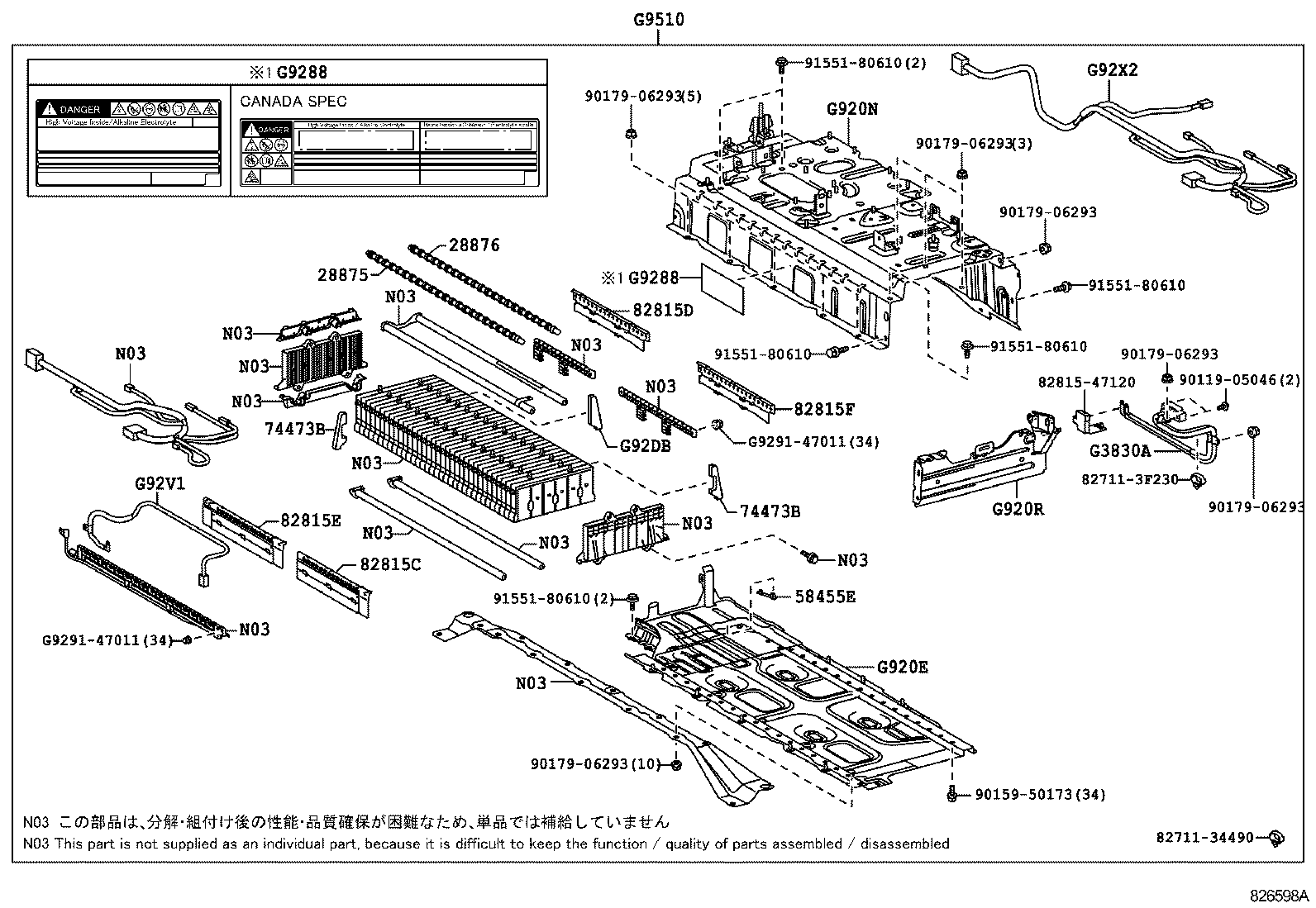

HV BATTERY ILLUST NO. 3 OF 3(0907- )

HS250H | BATTERY BATTERY CABLE 28875 - DUCT, BATTERY INSULATOR, NO.1 28876 - DUCT, BATTERY INSULATOR, NO.2 58455E - STOPPER, BATTERY CARRIER 74473B - CUSHION, BATTERY CARRIER, NO.3 74473B - CUSHION, BATTERY CARRIER, NO.3 ** Std Part ** Std Part ** Std Part 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY G920E - CARRIER SUB-ASSY, HYBRID VEHICLE BATTERY, LOWER G920N - COVER SUB-ASSY, HYBRID BATTERY, UPPER G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2 G9288 - LABEL, BATTERY CHARGING NOTICE G9288 - LABEL, BATTERY CHARGING NOTICE ** Std Part ** Std Part G92DB - SEAL, HYBRID BATTERY, NO.1 G92V1 - CABLE, HYBRID BATTERY MAIN, NO.3 G92X2 - WIRE, HYBRID BATTERY PACK, NO.2 G9510 - BATTERY ASSY, HV SUPPLY
