LEXUS HS250H ANF10L-AEXVBA / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

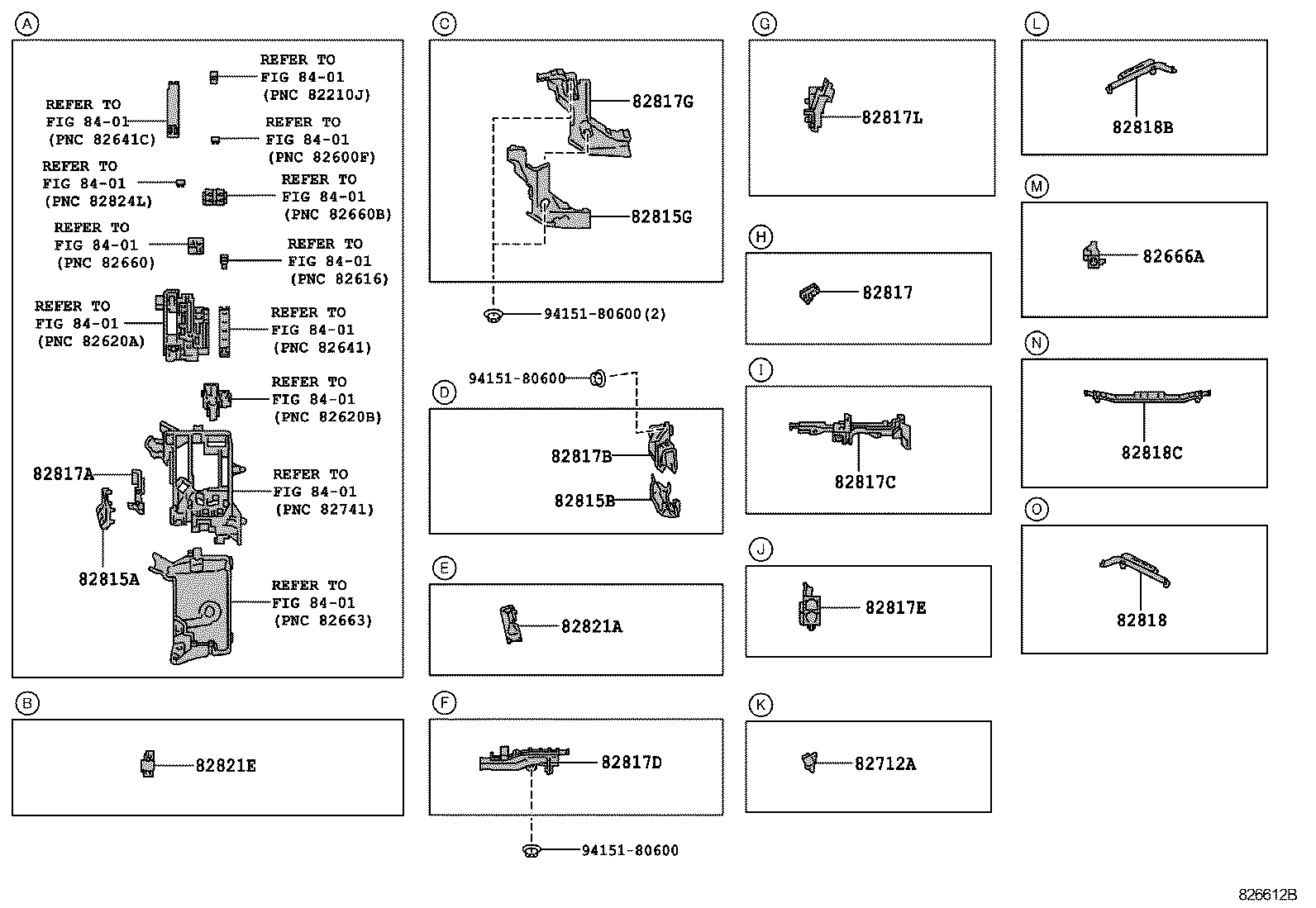

ENGINE ROOM 2/2 ILLUST NO. 1 OF 9(0907- )

HS250H | WIRING CLAMP 82666A - HOLDER, CONNECTOR NO.2 82712A - SUPPORT, WIRING HARNESS 82815A - COVER, WIRING HARNESS PROTECTOR 82815B - COVER, WIRING HARNESS PROTECTOR 82815G - COVER, WIRING HARNESS PROTECTOR 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817L - PROTECTOR, WIRING HARNESS, NO.11 82818 - PROTECTOR, WIRING HARNESS, NO.2 82818B - PROTECTOR, WIRING HARNESS, NO.3 82818C - PROTECTOR, WIRING HARNESS, NO.4 82821A - COVER, CONNECTOR 82821E - COVER, CONNECTOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
