LEXUS GS250 350 450H GRL10L-BETQHA / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

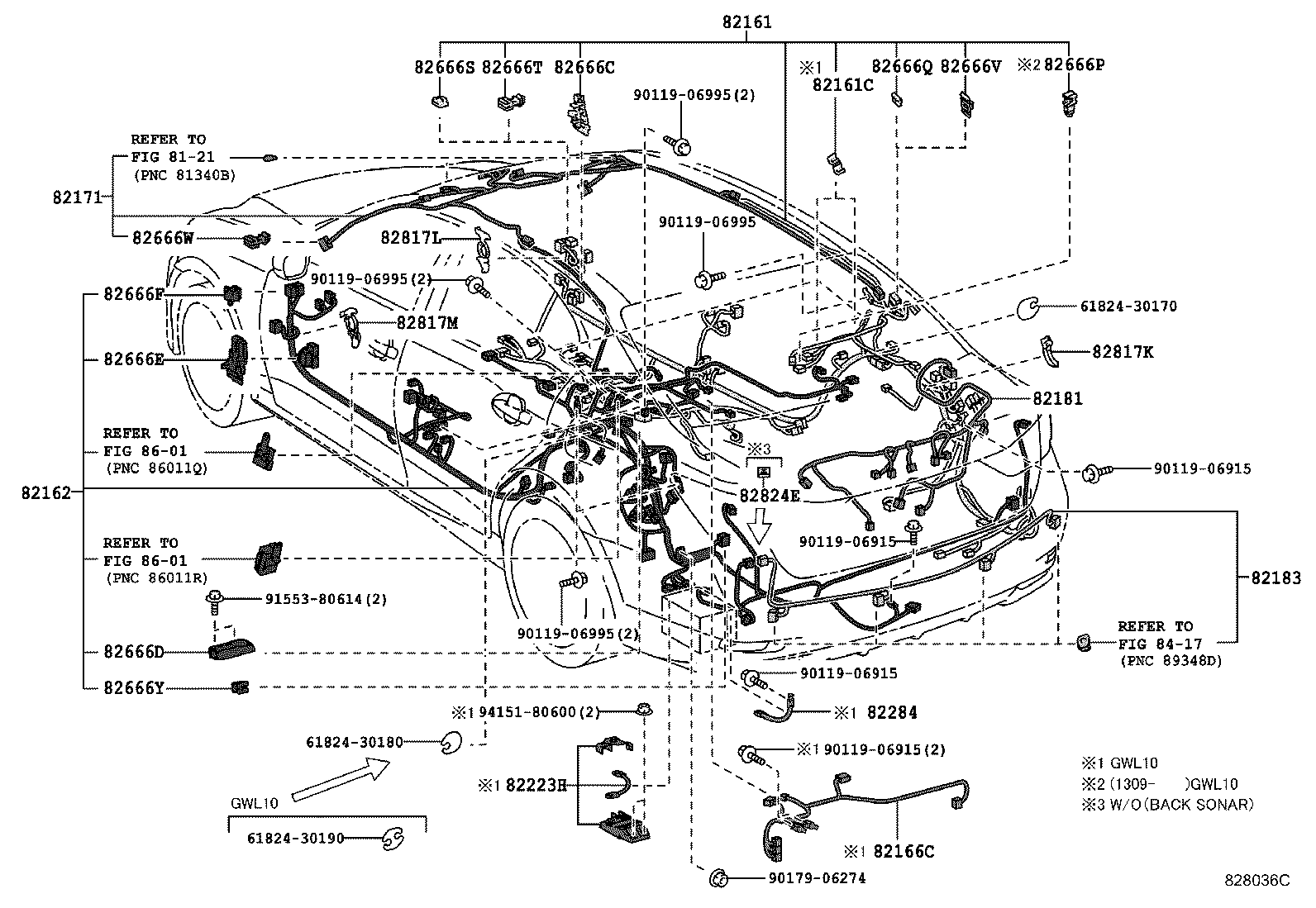

FLOOR & ROOF ILLUST NO. 5 OF11(1112- )

 GS250 350 450H |  WIRING CLAMP  ** Std Part  ** Std Part  ** Std Part ** Refer Fig 82161 - WIRE, FLOOR 82161C - CONDENSER 82162 - WIRE, FLOOR, NO.2 82166C - WIRE, BATTERY PACK, NO.2 82171 - WIRE, ROOF, NO.1 82181 - WIRE, LUGGAGE ROOM, NO.1 82183 - WIRE, LUGGAGE ROOM, NO.3 82223H - WIRE, FUSE BLOCK 82284 - WIRE, EARTH 82666C - HOLDER, CONNECTOR NO.4 82666D - HOLDER, CONNECTOR NO.5 82666E - HOLDER, CONNECTOR NO.6 82666F - HOLDER, CONNECTOR NO.7 82666P - HOLDER, CONNECTOR NO.11 82666Q - HOLDER, CONNECTOR NO.12 82666S - HOLDER, CONNECTOR NO.13 82666T - HOLDER, CONNECTOR NO.14 82666V - HOLDER, CONNECTOR NO.15 82666W - HOLDER, CONNECTOR NO.16 82666Y - HOLDER, CONNECTOR NO.18 82817K - PROTECTOR, WIRING HARNESS, NO.10 82817L - PROTECTOR, WIRING HARNESS, NO.11 82817M - PROTECTOR, WIRING HARNESS, NO.12 82824E - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
