LEXUS IS F USE20L-FEZRHA / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

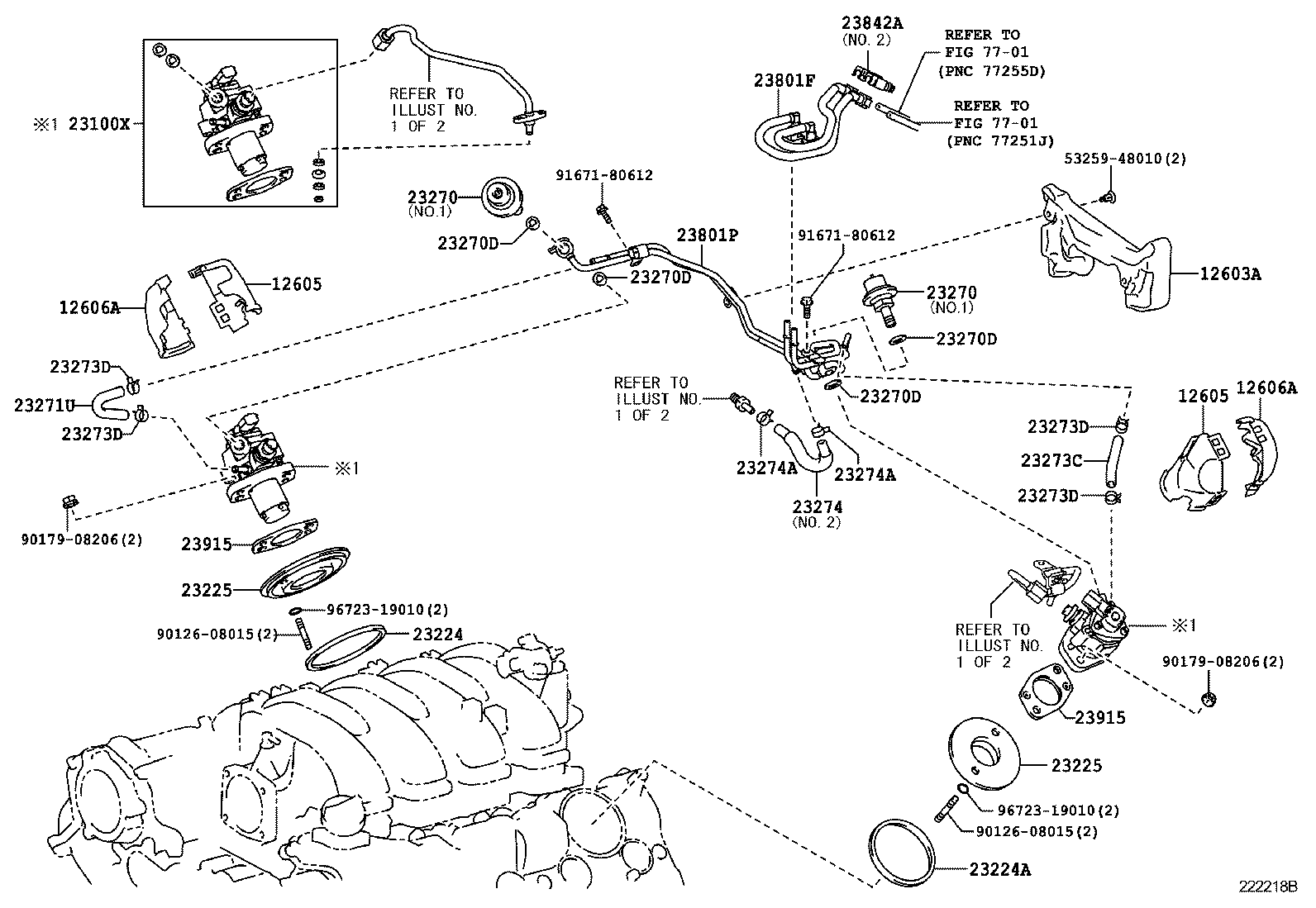

FUEL INJECTION SYSTEM

ILLUST NO. 2 OF 2(0712- )

IS F | FUEL INJECTION SYSTEM 12603A - COVER, SUB-ASSY, ENGINE, NO.3 12605 - COVER SUB-ASSY, ENGINE, RH 12605 - COVER SUB-ASSY, ENGINE, RH 12606A - COVER SUB-ASSY, ENGINE, LH 12606A - COVER SUB-ASSY, ENGINE, LH 23100X - PUMP ASSY, FUEL 23224 - GASKET, FUEL PUMP SPACER, RH 23224A - GASKET, FUEL PUMP SPACER, LH 23225 - SPACER, FUEL PUMP 23225 - SPACER, FUEL PUMP 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270D - GASKET(FOR PULSATION DAMPER) 23270D - GASKET(FOR PULSATION DAMPER) 23270D - GASKET(FOR PULSATION DAMPER) 23270D - GASKET(FOR PULSATION DAMPER) 23271U - HOSE, FUEL, NO.1 23273C - HOSE, FUEL, NO.2 23273D - CLIP(FOR FUEL HOSE NO.2) 23273D - CLIP(FOR FUEL HOSE NO.2) 23273D - CLIP(FOR FUEL HOSE NO.2) 23273D - CLIP(FOR FUEL HOSE NO.2) 23274 - HOSE, FUEL, NO.3 23274A - CLIP(FOR HOSE, FUEL, NO.3) 23274A - CLIP(FOR HOSE, FUEL, NO.3) 23801F - HOSE, FUEL, NO.1 23801P - PIPE SUB-ASSY, FUEL, NO.1 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23915 - INSULATOR, FUEL PUMP 23915 - INSULATOR, FUEL PUMP ** Std Part ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
