LEXUS GX460 URJ150L-GKTGKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

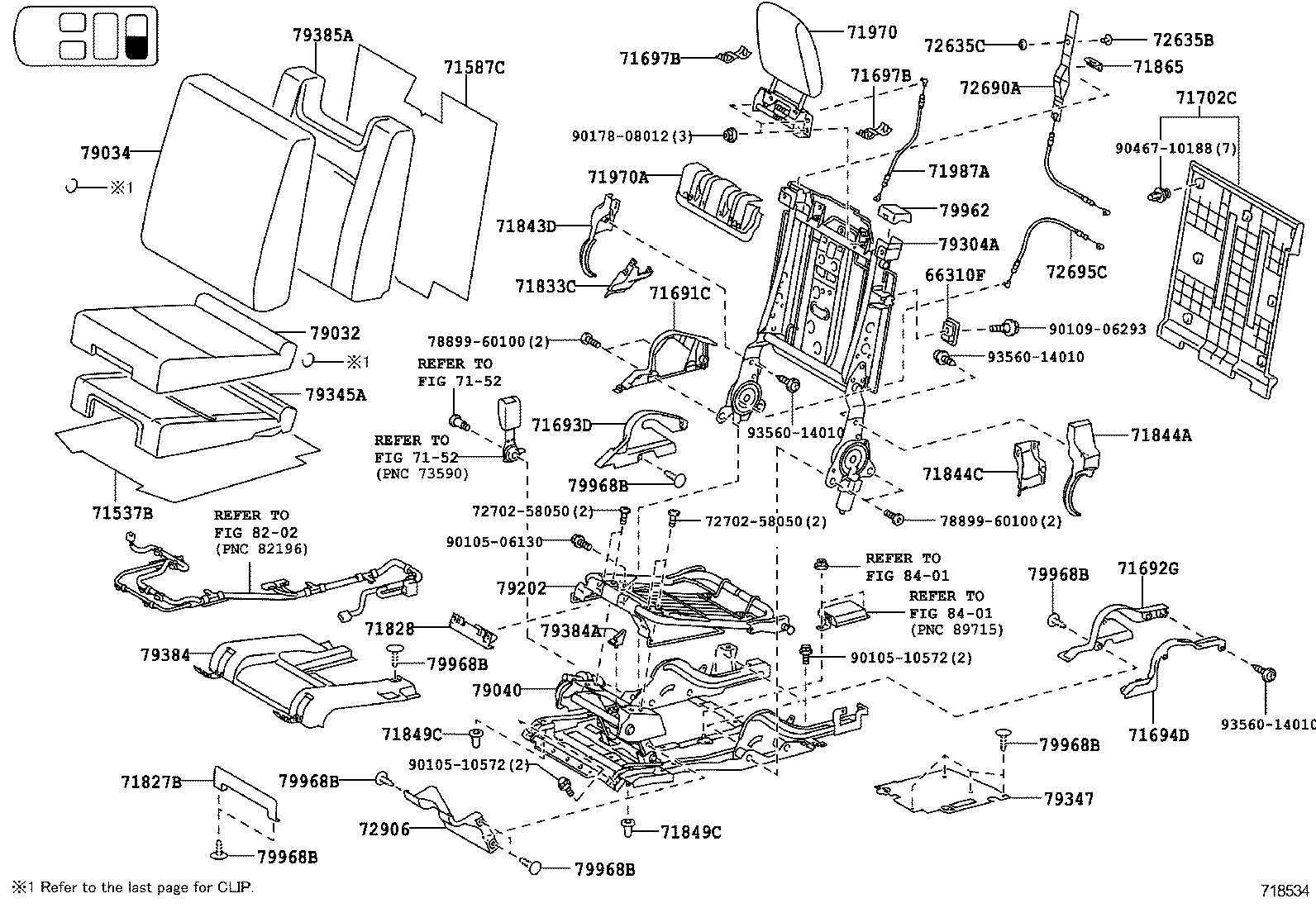

SEAT SEAT TRACK

REAR NO.2 SEAT(LH) W(POWER SEAT) (1308- )

GX460 | SEAT SEAT TRACK 66310F - HOOK ASSY, ROPE ** Refer Fig ** Refer Fig 71537B - PROTECTOR, REAR SEAT CUSHION 71587C - PROTECTOR, REAR SEAT BACK EDGE NO.2 71691C - COVER, REAR SEAT LOCK, INNER RH 71692G - COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER LH 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH 71697B - PROTECTOR, REAR SEAT, NO.3 LH 71697B - PROTECTOR, REAR SEAT, NO.3 LH 71702C - BOARD SUB-ASSY, REAR SEAT BACK, LH 71827B - MOULDING, REAR SEAT CUSHION, FRONT 71828 - MOULDING,REAR SEAT BACK, CENTER 71833C - COVER, REAR SEAT RECLINING, NO.2 RH 71843D - COVER, REAR SEAT RECLINING, NO.2 RH 71844A - COVER, REAR SEAT RECLINING, NO.2 LH 71844C - COVER, REAR SEAT RECLINING, NO.2 LH 71849C - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) 71865 - BEZEL, REAR SEAT COVER, NO.1 71970 - HEADREST ASSY, REAR SEAT 71970A - COVER, REAR SEAT HEADREST 71987A - CABLE, REAR SEAT HEADREST 72635B - HOOK, REAR SEAT BACK LOCK(MALE) 72635C - HOOK, REAR SEAT BACK LOCK(FEMALE) 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE 72695C - CABLE, REAR SEAT LOCK CONTROL, LH ** Std Part ** Std Part 72906 - LINK SUB-ASSY, 3RD SEAT, LH ** Std Part ** Std Part 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH 79040 - LEG ASSY, NO.3 SEAT, LH 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH 79345A - PAD, NO.3 SEAT CUSHION, LH 79347 - CARPET, NO.2 SEAT CUSHION UNDER, LH 79384 - COVER, NO.3 SEAT LEG, REAR LH 79384A - COVER, NO.3 SEAT LEG, REAR LH 79385A - PAD, NO.3 SEAT BACK, LH 79962 - COVER, NO.2 SEAT BACK 79968B - CLIP 79968B - CLIP 79968B - CLIP 79968B - CLIP 79968B - CLIP 79968B - CLIP 79968B - CLIP ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
