LEXUS GX460 URJ150L-GKTZKA / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

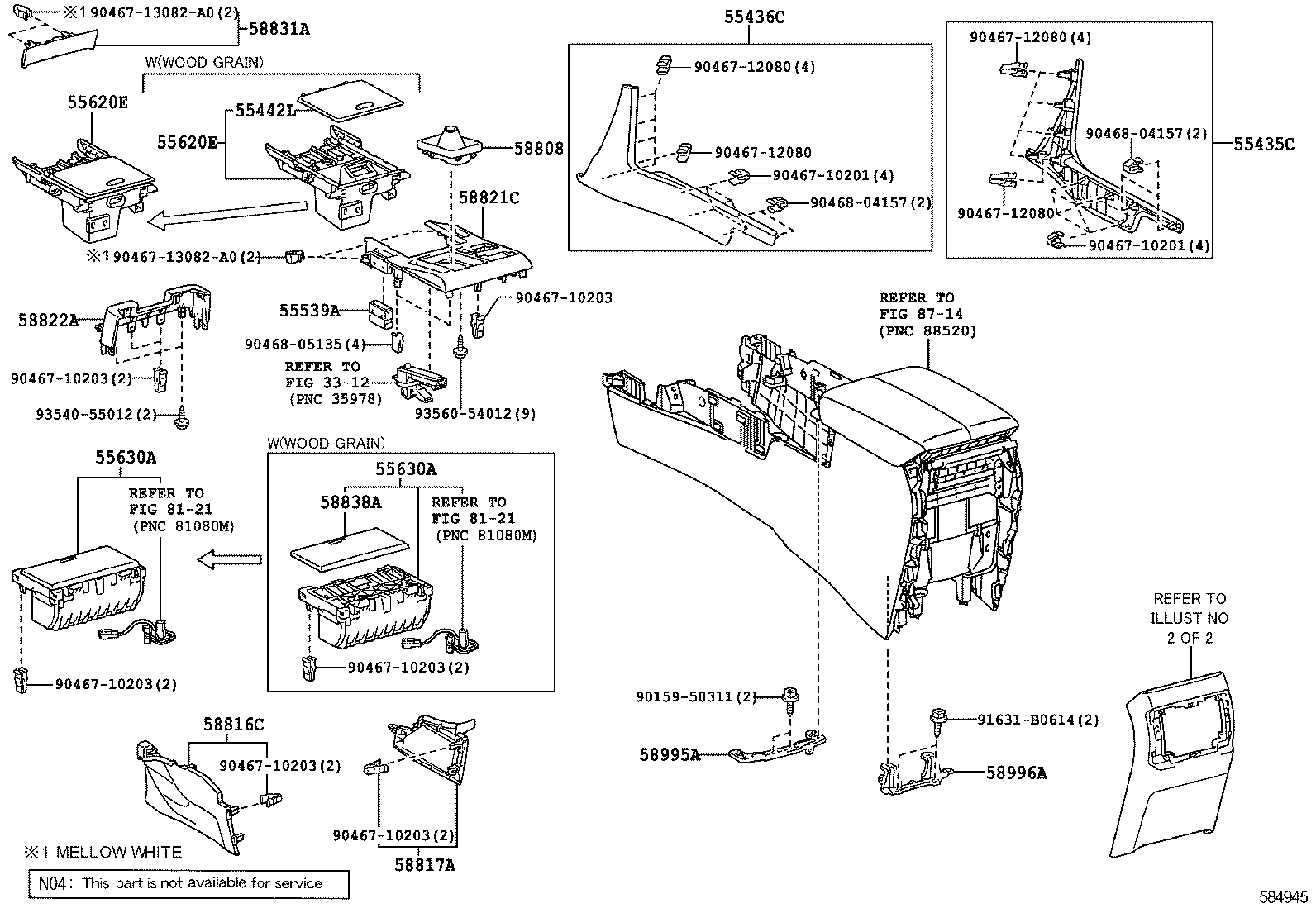

CONSOLE BOX BRACKET

W(COOL BOX) ILLUST NO. 1 OF 2(1308- )Z

 GX460 |  CONSOLE BOX BRACKET ** Refer Fig 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH 55442L - DOOR, INSTRUMENT PANEL 55539A - COVER, SPARE SWITCH HOLE 55620E - HOLDER ASSY, INSTRUMENT PANEL CUP 55620E - HOLDER ASSY, INSTRUMENT PANEL CUP 55630A - HOLDER, REAR CONSOLE BOX, CUP 55630A - HOLDER, REAR CONSOLE BOX, CUP 58808 - COVER SUB-ASSY, SHIFTING HOLE 58816C - INSERT, CONSOLE BOX, FRONT NO.1 58817A - INSERT, CONSOLE BOX, FRONT NO.2 58821C - PANEL, CONSOLE, UPPER 58822A - PANEL, CONSOLE, UPPER REAR 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT 58838A - DOOR, CONSOLE CUP HOLDER BOX 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
