LEXUS GS250 350 450H GWL10L-BEXQBA / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

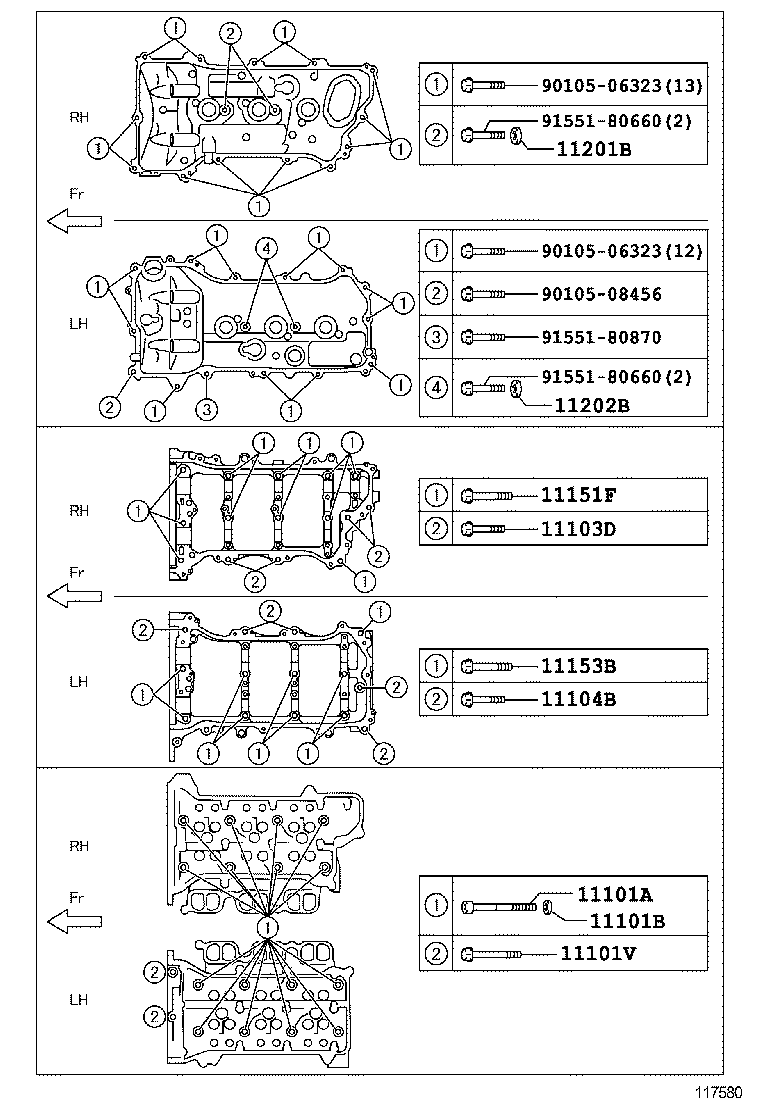

CYLINDER HEAD

ILLUST NO. 2 OF 2(1203- )2GRFXE

GS250 350 450H | CYLINDER HEAD 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101V - BOLT(FOR CYLINDER HEAD SET SUB) 11103D - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) 11104B - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11202B - WASHER, SEAL(FOR CYLINDER HEAD COVER, LH) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
