TOYOTA HILUX RN20-JR / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

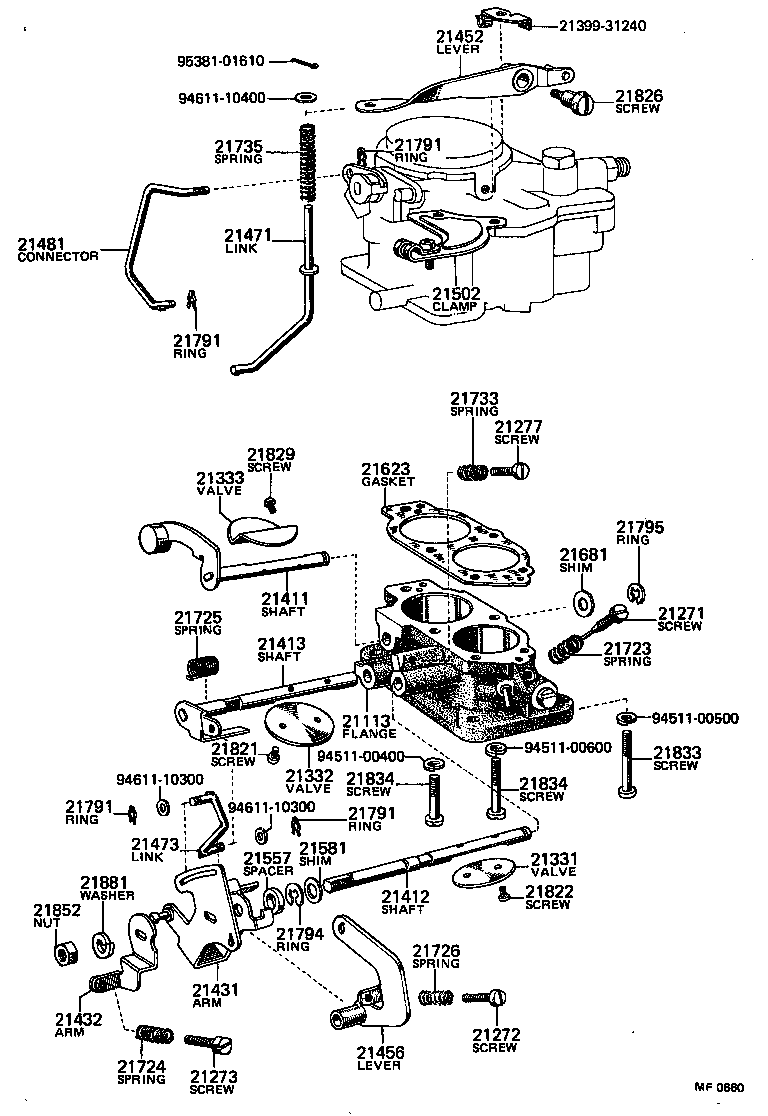

CARBURETOR

(7205-7309)

 HILUX |  CARBURETOR 21113 - FLANGE, CARBURETOR 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21277 - SCREW, LOW IDLE ADJUSTING 21331 - VALVE, 1ST THROTTLE 21332 - VALVE, 2ND THROTTLE 21333 - VALVE, HIGH SPEED  ** Std Part 21411 - SHAFT, HIGH SPEED 21412 - SHAFT, 1ST THROTTLE 21413 - SHAFT, 2ND THROTTLE 21431 - ARM, 1ST THROTTLE SHAFT 21432 - ARM, THROTTLE 21452 - LEVER, PUMP 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 21471 - LINK, PUMP CONNECTING 21473 - LINK, THROTTLE SHAFT 21481 - CONNECTOR, 1ST IDLE 21502 - CLAMP SUB-ASSY, CHOKE WIRE 21557 - SPACER(FOR 1ST IDLE CAM) 21581 - SHIM, 1ST THROTTLE SHAFT 21623 - GASKET, BODY FLANGE 21681 - SHIM(FOR HIGH SPEED SHAFT) 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21725 - SPRING, 2ND THROTTLE BACK 21726 - SPRING, 1ST IDLE ADJUSTING 21733 - SPRING, LOW IDLE ADJUSTING 21735 - SPRING, PUMP ARM 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) 21821 - SCREW, 2ND THROTTLE VALVE SET 21822 - SCREW, 1ST THROTTLE VALVE SET 21826 - SCREW, PUMP ARM SET 21829 - SCREW, HIGH SPEED VALVE SET 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21852 - NUT, THROTTLE LEVER SET 21881 - WASHER, LOCK(FOR THROTTLE SHAFT)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
