TOYOTA CROWN MS112L-SEHQS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

(7909- )LHD..ROY

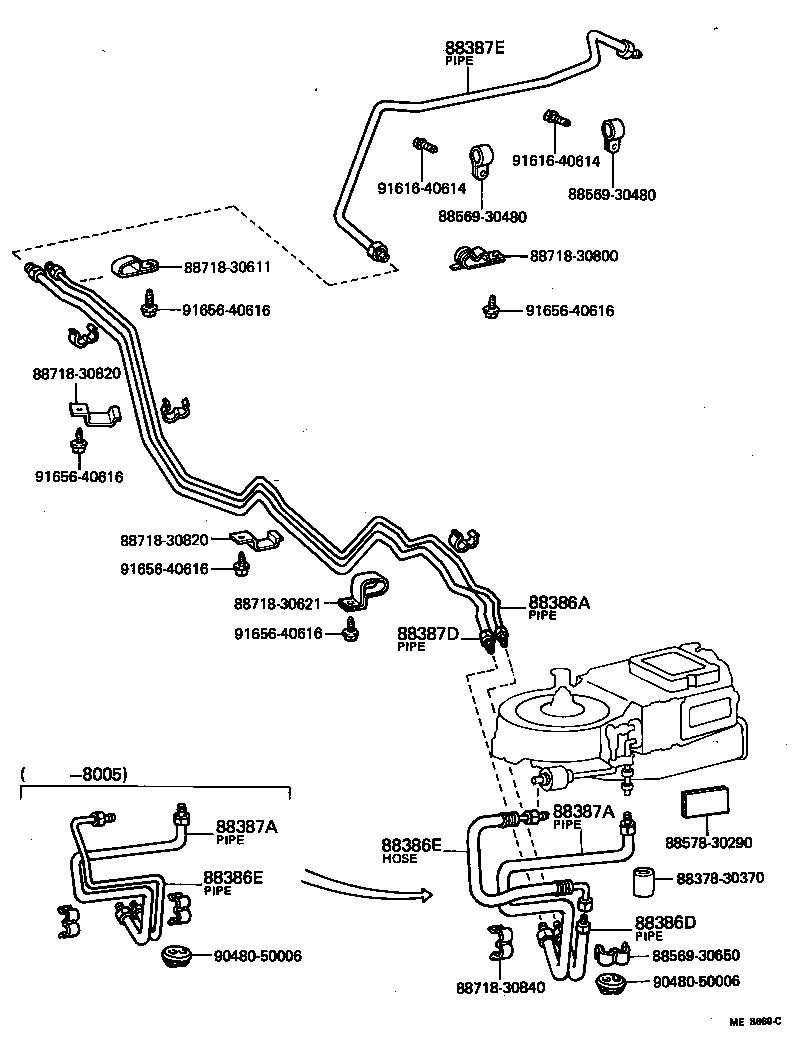

 CROWN |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part 88386A - PIPE, REAR COOLER REFRIGERANT LIQUID, A (FROM CONDENSER) 88386D - PIPE, REAR COOLER REFRIGERANT LIQUID, D 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT) 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT) 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNIT) 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNIT) 88387D - PIPE, REAR COOLER REFRIGERANT SUCTION, D 88387E - PIPE, REAR COOLER REFRIGERANT SUCTION, E (TO COMPRESSOR)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
