TOYOTA VAN YR31LG-MQEK / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

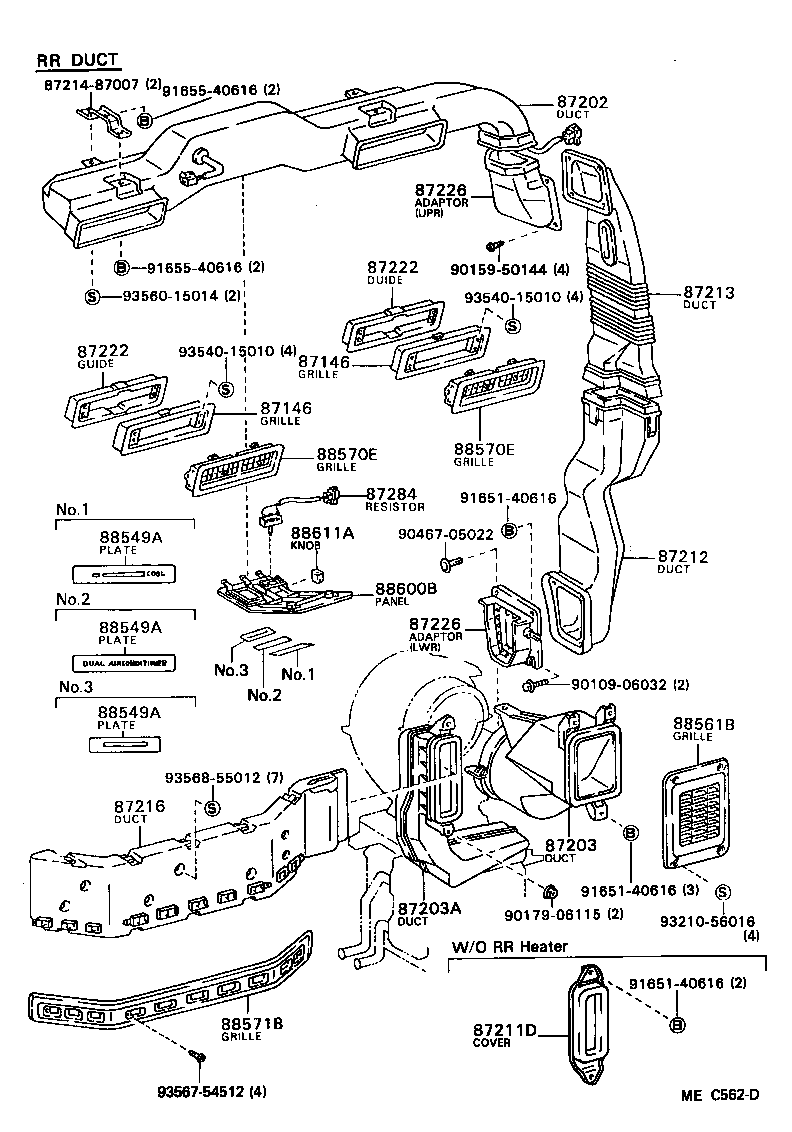

HEATING AIR CONDITIONING CONTROL AIR DUCT

ILLUST NO. 4 OF 6(8308- )

 VAN |  HEATING AIR CONDITIONING CONTROL AIR DUCT 87146 - RETAINER, GRILLE 87146 - RETAINER, GRILLE 87202 - DUCT, HEATER AIR 87203 - DUCT, HEATER AIR, REAR NO.1 87203A - DUCT ASSY, HEATER AIR, REAR 87211D - COVER, HEATER AIR DUCT HOLE 87212 - DUCT, AIR, REAR NO.1 87213 - DUCT, AIR, REAR NO.2  ** Std Part 87216 - DUCT, HEATER INTERIOR AIR (TO REAR) 87222 - GUIDE, AIR DUCT, REAR 87222 - GUIDE, AIR DUCT, REAR 87226 - ADAPTER, AIR DUCT 87226 - ADAPTER, AIR DUCT 87284 - RESISTOR SUB-ASSY, VARIABLE 88549A - PLATE, CAUTION 88549A - PLATE, CAUTION 88549A - PLATE, CAUTION 88561B - GRILLE, COOLER AIR INLET 88570E - GRILLE ASSY, AIR OUTLET 88570E - GRILLE ASSY, AIR OUTLET 88571B - GRILLE, AIR OUTLET 88600B - PANEL ASSY, CONTROL 88611A - KNOB, COOLER CONTROL SWITCH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
